Vehicle Exploded View - APRILIA SCARABEO 125 E2 Mot Piaggio 2003
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

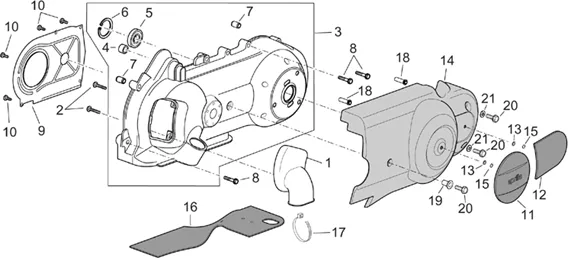

Moteur : 29.60 COUVERCLE VARIATEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/613/Scarabeo_125_E2_Mot_Piaggio_2003_29.60.PNG)
1 |
COUVERCLE RAFFR. |
||||||
|
2 |
Vis taraud |
||||||
|
3 |
Couvercle |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/1/7/img/66417.jpg)
4 |
BUSH/BUSH BRONZE 8X12X8 OEM PIAGGIO COMMON A LA RANGE SCOOTER ET MAXI SCOOTER-431860 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/7/1/img/66571.jpg)
5 |
BEARING (15X35X11) OEM PIAGGIO COMMON A TOUTE LA RANGE MAXI SCOOTER 125-250-300-4789853 More informationQuantity required : 1 |
||||||
|
6 |
Anneau élastique |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/6/9/6/img/72696.jpg)
7 |
BUSH DE CENTRAGE (9, 5X15) CASING OEM PIAGGIO COMMON ALA RANGE-B015956 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/2/5/img/72725.jpg)
8 |
SCREW FLANGE TH (6X30) OEM PIAGGIO COMMON A TOUTE LA RANGE-B016792 More informationQuantity required : 8 |
||||||
|
9 |
834266-DIAPHRAGME FOR AIR CHAUD More informationQuantity required : 1 |
||||||
|
9 |
DIAPHRAGME FOR AIR CHAUD 125CC-873682 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/7/6/img/66376.jpg)
10 |
SCREW CRUCIFORME (5X12) OEM PIAGGIO COMMON A LA RANGE-430264 More informationQuantity required : 4 |
||||||
|
11 |
AP8144547-SPINDLE AV. More informationQuantity required : 1 |
||||||
|
12 |
AP8178010 - FREGIO POSTERIORE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/8/img/71888.jpg)
13 |
WASHER ELASTIC (5) OEM PIAGGIO COMMON A TOUTE LA RANGE-AP8150450 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/3/2/6/5/img/53265.jpg)
14 |
COVER CASING DE TRANSMISSION OEM PIAGGIO APRILIA 125 SCARABEO 2003 > 2006-AP8168599 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/8/1/img/71181.jpg)
15 |
RUBBER DE FAIRING OEM PIAGGIO COMMON A LA RANGE APRILIA-AP8102504 More informationQuantity required : 2 |
||||||
|
16 |
AP8178357 - PARATIA PRESA D'ARIA VARIATORE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/1/1/img/71411.jpg)
17 |
HOSE CLAMP NYLON TYPE RILSAN 4, 5X280MM OEM PIAGGIO COMMON A LA RANGE-AP8120657 More informationQuantity required : 1 |
||||||
|
18 |
AP8121167-BUSSOLA More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/9/2/8/img/46928.jpg)
19 |
BUSH EN T OEM PIAGGIO COMMON A LA RANGE-AP8121725 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/8/5/6/img/50856.jpg)
20 |
SCREW - FOR FUEL TANK MOUNTING "PIAGGIO GENUINE PART" APRILIA RS 50-125 1999>2010/SCREW FOR SPIDER PLATE- APRILIA SL 1000 FALCO 2000>2003, TUONO 1000 2002>2005 -AP8150314 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/0/7/img/71807.jpg)
21 |
WASHER PLATE (6, 4X12, 5) OEM PIAGGIO COMMON A LA RANGE-AP8150014 More informationQuantity required : 2 |
