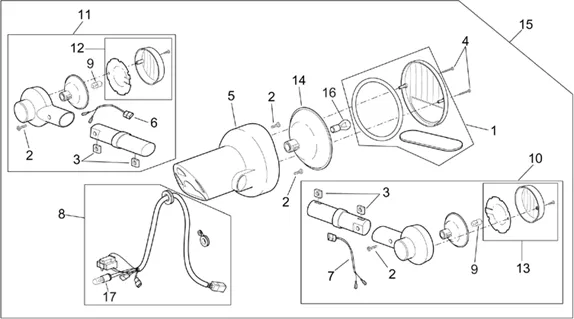

Chassis : 28.41 FEU ARRIÈRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/613/Scarabeo_125_E2_Mot_Piaggio_2003_28.41.PNG)
1 |
AP8127380 - LENS+NUMBER PLATE LIGHT KIT; More informationQuantity required : 1 |
||||||
|
2 |
Vis; |
||||||
|
3 |
AP8124791 - ECROU CARRE; More informationQuantity required : 4 |
||||||
|
4 |
AP8124792 - VIS TARAUD; More informationQuantity required : 2 |
||||||
|
5 |
AP8127400 - TAILLIGHT CAP, P.GREY; More informationQuantity required : 1 |
||||||
|
6 |
AP8124794 - CABLES IND.DIRE.AR D; More informationQuantity required : 1 |
||||||
|
7 |
AP8124795 - CABLES IND.DIRE.AR G; More informationQuantity required : 1 |
||||||
|
8 |
AP8124796 - CABLAGE FEU AR; More informationQuantity required : 1 |
||||||
|
9 |
|
||||||
|
10 |
AP8127378 - CLIGNOTANT ARRIERE GAUCHE; More informationQuantity required : 1 |
||||||
|
11 |
AP8127379 - CLIGNOTANT ARRIERE DROITE; More informationQuantity required : 1 |
||||||
|
12 |
AP8127131-VITRE INDICATOR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/8/0/0/3/img/48003.jpg)
13 |
CABOCHON REAR LEFT INDICATOR OEM PIAGGIO 125-200 SCARABEO 1999 > 2006-AP8127130 More informationQuantity required : 1 |
||||||
|
14 |
AP8124802 - PARABOLE COMPLETE; More informationQuantity required : 1 |
||||||
|
15 |
Feu arrière |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/2/7/img/65727.jpg)
16 |
AMPOULE/LAMPE 12V 21/5W BAY15D/P21/5 OEM PIAGGIO COMMON A LA RANGE-129953 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/4/0/8/img/139408.jpg)
17 |
AMPOULE/LAMPE 12V 5W WEDGE T10 BLANCHE OEM PIAGGIO COMMON A LA RANGE-2920225 More informationQuantity required : 1 |
