Vehicle Exploded View - APRILIA SCARABEO 125 E2 Mot Piaggio 2003
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

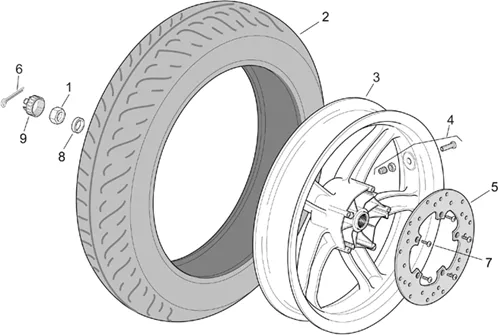

Chassis : 28.38 ROUE ARRIÈRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/613/Scarabeo_125_E2_Mot_Piaggio_2003_28.38.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/0/3/5/img/67035.jpg)
1 |
NUT (M16) OEM PIAGGIO COMMON A TOUTE LA RANGE-563728 More informationQuantity required : 1 |
||||||
3 |
AP8128046-WHEEL POSTERIORE NUDA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/3/6/img/72136.jpg)
4 |
VALVE TUBELESS OEM PIAGGIO COMMON A LA RANGE-AP8201546 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/8/7/4/4/img/48744.jpg)
5 |
BRAKE DISC REAR (240) OEM PIAGGIO 125-150-200-250 SCARABEO 2003 > 2006/400-500 SCARABEO 400-500 2006 < 2008-AP8133627 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/5/5/img/65355.jpg)
6 |
GOUPILLE SECURITE NUT DE REAR WHEEL OEM PIAGGIO COMMON A TOUTE LA RANGE SCOOTER ET MAXI SCOOTER-012789 More informationQuantity required : 1 |
||||||
|
7 |
AP8133607-SCREW More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/4/1/img/71441.jpg)
8 |
SPACER (17. 6X25X6. 6) OEM PIAGGIO COMMON A LAGAMME-AP8121171 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/8/9/6/5/0/img/189650.jpg)
9 |
CAGE MOUNTING NUT DE REAR WHEEL OEM PIAGGIO COMMON A TOUTE LA RANGE SCOOTER ET MAXI SCOOTER-1C004746 More informationQuantity required : 1 |
||||||
|
9 |
CAGE MOUNTING NUT DE REAR WHEEL OEM PIAGGIO COMMON A TOUTE LA RANGE SCOOTER ET MAXI SCOOTER-1C004746 More informationQuantity required : 1 |
