Vehicle Exploded View - APRILIA SCARABEO 125 E2 Mot Piaggio 2003
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

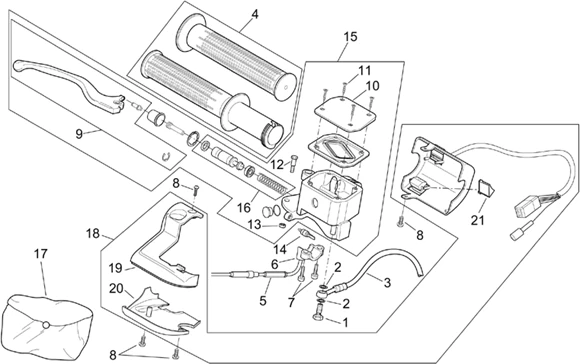

Chassis : 28.25 COMMANDES DTE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/613/Scarabeo_125_E2_Mot_Piaggio_2003_28.25.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/2/img/71282.jpg)
1 |
SCREW HOSE OIL (10MM) OEM PIAGGIO COMMON A LA RANGE-AP8113003 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/3/img/71283.jpg)
2 |
WASHER (10X14X1, 6) OEM PIAGGIO COMMON A LA RANGE-AP8113004 More informationQuantity required : 2 |
||||||
3 |
AP8113696 - TUBE FREIN AV More informationQuantity required : 1 |
||||||
|
4 |
AP8118643 - COUPLE MANETTES, NOIR More informationQuantity required : 1 |
||||||
|
5 |
AP8114461-CABLE GAS More informationQuantity required : 1 |
||||||
|
6 |
AP8118499 - SIEGE COMM. GAZ; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/2/8/img/71828.jpg)
7 |
SCREW BTR (6X25) OEM PIAGGIO COMMON A LA RANGE-AP8150165 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/5/img/71935.jpg)
8 |
SCREW BTR HEAD BOMBEE (5X16) OEM PIAGGIO COMMON A LA RANGE-AP8152268 More informationQuantity required : 4 |
||||||
|
9 |
AP8118641 - LEVIER FREIN More informationQuantity required : 1 |
||||||
|
10 |
Couvercle pompe; |
||||||
|
11 |
AP8113859 - VIS COUVERCLE POMPE; More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/5/7/6/img/71576.jpg)
12 |
AP8125757-SCREW LEVER More informationQuantity required : 1 |
||||||
|
13 |
AP8213298-NUT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/8/9/img/67189.jpg)
14 |
INTERRUPTEUR LAMP STOP OEM PIAGGIO 50 NRG, ZIP, TYPHOON, LIBERTY, 125 X9, VESPA LXV, 250-300 VESPA GTV/APRILIA 50 SR H2O, 125 ATLANTIC, RS, SPORT-CITY/GILERA 50 STALKER-580953 More informationQuantity required : 1 |
||||||
|
15 |
Maît. cyl. frein AV; |
||||||
|
16 |
PISTON CONTROL OF BRAKE LEFT OEM PIAGGIO 50 SR 1997 > 2012-AP8113861 More informationQuantity required : 1 |
||||||
|
17 |
AP8113864-KIT REVISION PUMP More informationQuantity required : 1 |
||||||
|
18 |
AP8127634-DEVIOLUCI DX * More informationQuantity required : 1 |
||||||
|
19 |
AP8124805 - COUV.DEV. FEUX SUP.D; More informationQuantity required : 1 |
||||||
|
20 |
AP8124806 - COUV.DEV. FEUX INF.D; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/8/0/5/0/img/48050.jpg)
21 |
BUTTON DEMARRAGE OEM PIAGGIO APRILIA 125-250 SCARABEO 1999 > 2006-AP8127238 More informationQuantity required : 1 |
