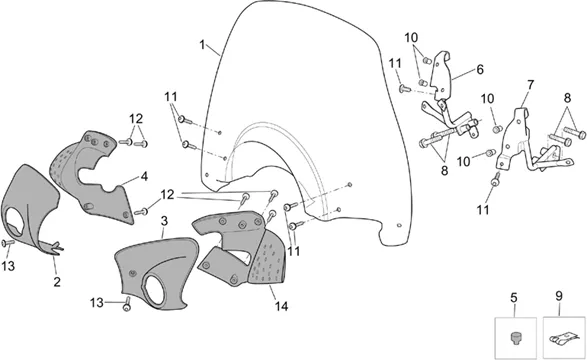

Chassis : 28.10 CARROSSERIE AV. - PROT-MAIN
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/613/Scarabeo_125_E2_Mot_Piaggio_2003_28.10.PNG)
1 |
AP8168015 - PARE-BRISE More informationQuantity required : 1 |
||||||
|
2 |
AP8158944 - PROT-MAIN DROITE; More informationQuantity required : 1 |
||||||
|
2 |
AP8168757 - PROT-MAIN DROITE; More informationQuantity required : 1 |
||||||
|
2 |
AP8168833 - PROT-MAIN DROITE More informationQuantity required : 1 |
||||||
|
3 |
AP8158945 - PROT-MAIN GAUCHE; More informationQuantity required : 1 |
||||||
|
3 |
AP8168758 - PROT-MAIN GAUCHE; More informationQuantity required : 1 |
||||||
|
3 |
AP8168834 - PROT-MAIN GAUCHE More informationQuantity required : 1 |
||||||
|
4 |
AP8158946-PROT-MAIN INT. RIGHT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/4/6/img/71746.jpg)
5 |
BUTEE RUBBER OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA/MOTO-GUZZI-AP8144081 More informationQuantity required : 1 |
||||||
|
6 |
AP8146952 - ARCHETTO SUPPORTO PARAMANI DX More informationQuantity required : 1 |
||||||
|
7 |
AP8146953 - ARCHETTO SUPPORTO PARAMANI SX More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/0/img/71950.jpg)
8 |
SCREW FLANGE TH (8X30) OEM PIAGGIO COMMON A LA RANGE-AP8152288 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/4/img/71174.jpg)
9 |
NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-AP8102375 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/0/1/img/71401.jpg)
10 |
NUT (M5) WITH INSERT RUBBER OEM PIAGGIO COMMON A LA RANGE DERBI, APRILIA ET MOTO-GUZZI-AP8120531 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/7/img/71957.jpg)
11 |
SCREW FLANGE BTR (5X16) OEM PIAGGIO COMMON A LA RANGE-AP8152298 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/6/img/71876.jpg)
12 |
SCREW CRUCIFORME (3. 9X14) TARAUD FAIRING INOX OEM PIAGGIO COMMON A TOUTE LA RANGE MOTO-AP8150413 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/4/img/71934.jpg)
13 |
SCREW BTR HEAD BOMBEE (5X12) OEM PIAGGIO COMMON A LA RANGE-AP8152267 More informationQuantity required : 2 |
||||||
|
14 |
AP8158947-PROT-MAIN INT. LEFT More informationQuantity required : 1 |
