Vehicle Exploded View - APRILIA SCARABEO 125 E2 Mot Piaggio 2003
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

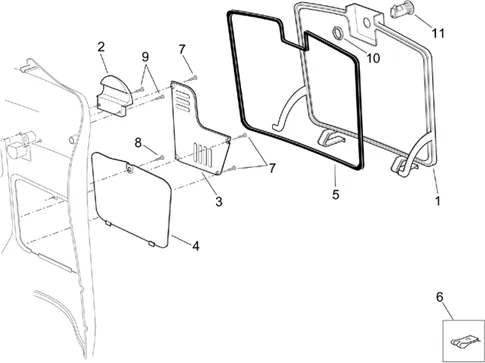

Chassis : 28.15 CARROSSERIE CENTRALE I
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/613/Scarabeo_125_E2_Mot_Piaggio_2003_28.15.PNG)
1 |
AP8158995 - ABATTANT PORTE-OBJETS GRIS More informationQuantity required : 1 |
||||||
|
1 |
AP8168750 - ABATTANT PORTE-OBJETS VERT; More informationQuantity required : 1 |
||||||
|
1 |
AP8168826 - ABATTANT PORTE-OBJETS BLEU; More informationQuantity required : 1 |
||||||
|
2 |
AP8158996 - CROCHET PORTE-SACS, NOIR More informationQuantity required : 1 |
||||||
|
3 |
AP8139265 - GRILLE INTERNE PORTE-OBJETS; More informationQuantity required : 1 |
||||||
|
4 |
AP8139269-COUV. HOMOLOG. GREY More informationQuantity required : 1 |
||||||
|
5 |
GUARNIZIONE SPORTELLO 6X4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/5/7/img/72157.jpg)
6 |
NUT SHEET METAL (4, 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-AP8202449 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/9/img/71879.jpg)
7 |
SCREW CRUCIFORME (2. 9X12) TARAUD FOR PLASTIQUE INOX OEM PIAGGIO COMMON A LA RANGE-AP8150421 More informationQuantity required : 4 |
||||||
|
8 |
AP8152345-SCREW More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/7/5/img/71975.jpg)
9 |
SCREW PARKER (4, 2X16) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-AP8152351 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/8/4/img/71184.jpg)
10 |
NUT LOCK (M22 X 1. 5) OEM PIAGGIO COMMON A LA RANGE-AP8102523 More informationQuantity required : 1 |
||||||
|
11 |
AP8104584 - SERRURE COFFRE More informationQuantity required : 1 |
