Vehicle Exploded View - PIAGGIO VU PORTER NP6 1500 Porter NP6 (TW 3250) M.Y. 2022 PIAGGIO VU

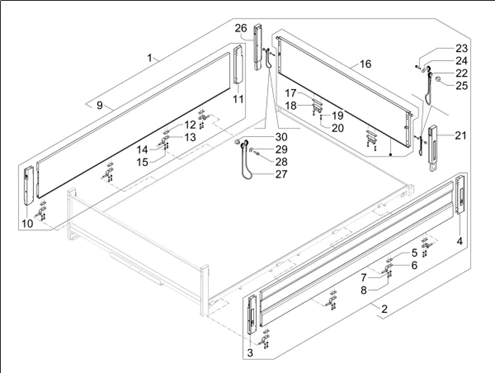

07_châssis - système de basculement : 07.05_01 05_01_RIDELLES BENNE (COURT)
05_01_Ridelles benne (court)
Search
CM317456 - SIDE PANEL LH

2
P2R reference P2R reference 175874
Maker reference Maker reference CM317456

CM317456 SIDE PANEL LH

More information

Quantity required : 1

WASHER (8, 15X13, 75X4, 5) OEM PIAGGIO COMMON A LA RANGE-016408

7
P2R reference P2R reference 65418
Maker reference Maker reference 0164085

WASHER (8, 15X13, 75X4, 5) OEM PIAGGIO COMMON A LA RANGE-016408

More information

Quantity required : 8

SCREW TH (8X22) OEM PIAGGIO COMMON A LA RANGE-031119

8
P2R reference P2R reference 65646
Maker reference Maker reference 0311195

SCREW TH (8X22) OEM PIAGGIO COMMON A LA RANGE-031119

More information

Quantity required : 8

CM317455 - SIDE PANEL RH

9
P2R reference P2R reference 175873
Maker reference Maker reference CM317455

CM317455 SIDE PANEL RH

More information

Quantity required : 1

WASHER (8, 15X13, 75X4, 5) OEM PIAGGIO COMMON A LA RANGE-016408

14
P2R reference P2R reference 65418
Maker reference Maker reference 0164085

WASHER (8, 15X13, 75X4, 5) OEM PIAGGIO COMMON A LA RANGE-016408

More information

Quantity required : 8

SCREW TH (8X22) OEM PIAGGIO COMMON A LA RANGE-031119

15
P2R reference P2R reference 65646
Maker reference Maker reference 0311195

SCREW TH (8X22) OEM PIAGGIO COMMON A LA RANGE-031119

More information

Quantity required : 8

CM317461 - GATE ASSY REAR BODY TAIL

16
P2R reference P2R reference 173601
Maker reference Maker reference CM317461

CM317461 GATE ASSEMBLY REAR BODY TAIL

More information

Quantity required : 1

PLATE DE RIDELLE FOR CHARNIERE OEM PIAGGIO PORTER 2010 >-B000224

17
P2R reference P2R reference 114334
Maker reference Maker reference B000224

PLATE DE RIDELLE FOR CHARNIERE OEM PIAGGIO PORTER 2010 >-B000224

More information

Quantity required : 2

CHARNIERE DE RIDELLE FOR CHARNIERE OEM PIAGGIO PORTER 2010 >-B005125

18
P2R reference P2R reference 114764
Maker reference Maker reference B005125

CHARNIERE DE RIDELLE FOR CHARNIERE OEM PIAGGIO PORTER 2010 >-B005125

More information

Quantity required : 2

WASHER (8, 15X13, 75X4, 5) OEM PIAGGIO COMMON A LA RANGE-016408

19
P2R reference P2R reference 65418
Maker reference Maker reference 0164085

WASHER (8, 15X13, 75X4, 5) OEM PIAGGIO COMMON A LA RANGE-016408

More information

Quantity required : 4

SCREW TH (8X22) OEM PIAGGIO COMMON A LA RANGE-031119

20
P2R reference P2R reference 65646
Maker reference Maker reference 0311195

SCREW TH (8X22) OEM PIAGGIO COMMON A LA RANGE-031119

More information

Quantity required : 4

SCREW FLANGE TH (6X25) OEM PIAGGIO COMMON A LA RANGE/KICK DERBI 50 SENDA-B016774

23
P2R reference P2R reference 72720
Maker reference Maker reference B016774

SCREW FLANGE TH (6X25) OEM PIAGGIO COMMON A LA RANGE/KICK DERBI 50 SENDA-B016774

More information

Quantity required : 1

WASHER 6, 2X20X1 OEM PIAGGIO COMMON A TOUTE LA RANGE-013092

24
P2R reference P2R reference 65356
Maker reference Maker reference 0130925

WASHER 6, 2X20X1 OEM PIAGGIO COMMON A TOUTE LA RANGE-013092

More information

Quantity required : 1

SCREW FLANGE TH (6X25) OEM PIAGGIO COMMON A LA RANGE/KICK DERBI 50 SENDA-B016774

28
P2R reference P2R reference 72720
Maker reference Maker reference B016774

SCREW FLANGE TH (6X25) OEM PIAGGIO COMMON A LA RANGE/KICK DERBI 50 SENDA-B016774

More information

Quantity required : 1

WASHER 6, 2X20X1 OEM PIAGGIO COMMON A TOUTE LA RANGE-013092

29
P2R reference P2R reference 65356
Maker reference Maker reference 0130925

WASHER 6, 2X20X1 OEM PIAGGIO COMMON A TOUTE LA RANGE-013092

More information

Quantity required : 1
