Vehicle Exploded View - PIAGGIO VU PORTER NP6 1500 Porter NP6 (TW 3250) M.Y. 2022
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

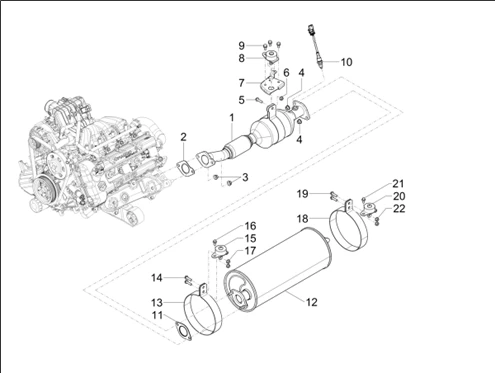

01_moteur : 01.23 23_SYSTÈME D'ÉCHAPPEMENT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1351/Porter_NP6_TW_3250_M.Y._2022_01.23.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/3/2/0/5/img/173205.jpg)
2 |
GASKET EXHAUST (CONVERTISSEUR) OEM PIAGGIO PORTER NP6 2021 >-WET120100600A0 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/3/2/0/6/img/173206.jpg)
3 |
NUT FLANGE TH MOUNTING SILENCER EXHAUST OEM PIAGGIO NP6 2021 >-WQ33110F61 More informationQuantity required : 2 |
|||||||||
|
4 |
NUT FLANGE TH MOUNTING SILENCER EXHAUST OEM PIAGGIO NP6 2021 >-WQ33110F61 More informationQuantity required : 2 |
|||||||||
5 |
WQ1840830F61 SCREW A HEAD HEXAGONALE BRIDEE More informationQuantity required : 1 |
|||||||||
|
6 |
WQ32008F61 ÉROU HEXAGONAL FLANGE More informationQuantity required : 1 |
|||||||||
|
7 |
WET125330100A0 HOT END FRONT BRACKET More informationQuantity required : 1 |
|||||||||
|
8 |
WL0120120056A0 - SILENTBLOCK ASSY EXHAUST SYSTEM SUPP More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/3/2/1/1/img/173211.JPG)
9 |
SCREW A SIX PANS WITH DOUBLE WASHER M8X20 OEM PIAGGIO PORTER NP6-WQ146B0820F62 More informationQuantity required : 3 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/3/1/4/2/img/173142.jpg)
10 |
SONDE LAMBDA OEM PIAGGIO PORTER NP6 2021 >-1A018971 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/3/2/1/2/img/173212.jpg)
11 |
GASKET FLANGE EXHAUST OEM PIAGGIO PORTER NP6 2021 >-WET120100700A0 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/8/7/0/8/1/img/187081.jpg)
12 |
SILENCER EXHAUST PARTIE FINALE OEM PIAGGIO PORTER NP6 DOUBLE ESSIEU 2021 >-WET120050102A0 More informationQuantity required : 1 |
|||||||||
|
13 |
WET120190500A0 BELT MUFFLER BRACKET More informationQuantity required : 1 |
|||||||||
|
14 |
WQ1840830F61 SCREW A HEAD HEXAGONALE BRIDEE More informationQuantity required : 2 |
|||||||||
|
15 |
WL0120120142A0-SILENTBLOCK ASSEMBLY, MUFFLER BRACKET More informationQuantity required : 1 |
|||||||||
|
16 |
SCREW A SIX PANS WITH DOUBLE WASHER M8X20 OEM PIAGGIO PORTER NP6-WQ146B0820F62 More informationQuantity required : 1 |
|||||||||
|
17 |
WQ32008F61 ÉROU HEXAGONAL FLANGE More informationQuantity required : 2 |
|||||||||
|
18 |
WET120190500A0 BELT MUFFLER BRACKET More informationQuantity required : 1 |
|||||||||
|
19 |
WQ1840830F61 SCREW A HEAD HEXAGONALE BRIDEE More informationQuantity required : 2 |
|||||||||
|
20 |
WL0120120056A0 - SILENTBLOCK ASSY EXHAUST SYSTEM SUPP More informationQuantity required : 1 |
|||||||||
|
21 |
SCREW A SIX PANS WITH DOUBLE WASHER M8X20 OEM PIAGGIO PORTER NP6-WQ146B0820F62 More informationQuantity required : 1 |
|||||||||
|
22 |
WQ32008F61 ÉROU HEXAGONAL FLANGE More informationQuantity required : 2 |
|||||||||
