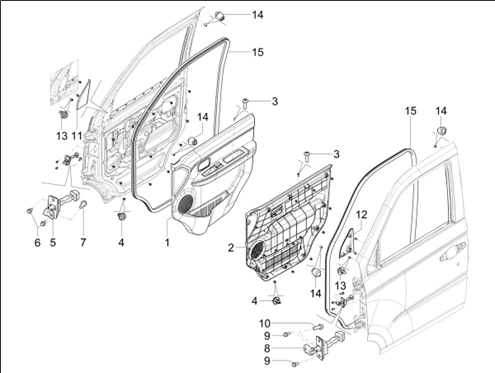

Vehicle Exploded View - PIAGGIO VU PORTER NP6 1500 Porter NP6 (TW 3250) M.Y. 2022 PIAGGIO VU

04_châssis - carrosseries : 04.14 14_COMPOSANTS DES PORTES AVANT
14_Composants des portes avant
Search
WET610162100A0 - RH FRONT DOOR INNER PANEL ASSY

1
P2R reference P2R reference 173418
Maker reference Maker reference WET610162100A0

WET610162100A0 RH FRONT DOOR INNER PANEL ASSEMBLY

More information

Quantity required : 1

WET610160100A0 - LH FRONT DOOR INNER PANEL ASSY

2
P2R reference P2R reference 173419
Maker reference Maker reference WET610160100A0

PANEL PORTIERE INNER LEFT OEM PIAGGIO PORTER NP6 SW/TW/NPE-WET610160100A0

More information

Quantity required : 1

WET610160101A0 - LH FRONT DOOR INNER PANEL ASSY

2
P2R reference P2R reference 173420
Maker reference Maker reference WET610160101A0

WET610160101A0 LH FRONT DOOR INNER PANEL ASSEMBLY

More information

Quantity required : 1

WQ2140620F62 - CROSS RECESSED PAN HEAD SCREW

3
P2R reference P2R reference 173421
Maker reference Maker reference WQ2140620F62

WQ2140620F62 CROSS RECESSED PAN HEAD SCREW

More information

Quantity required : 2

BUTTON-PRESSION PANEL DE DOOR OEM PIAGGIO PORTER NP6-W1K18063200300

4
P2R reference P2R reference 173422
Maker reference Maker reference W1K18063200300

BUTTON-PRESSION PANEL DE DOOR OEM PIAGGIO PORTER NP6-W1K18063200300

More information

Quantity required : 26

BUTEE/TIRANT OUVERTURE DE PORTIERE FRONT OEM PIAGGIO PORTER NP6 2021 >-WC3610120001A0

5
P2R reference P2R reference 173423
Maker reference Maker reference WC3610120001A0

BUTEE/TIRANT OUVERTURE DE PORTIERE FRONT OEM PIAGGIO PORTER NP6 2021 >-WC3610120001A0

More information

Quantity required : 1

WQ1800616F62 - VIS A TETE HEXAGONALE BRIDEE

6
P2R reference P2R reference 173424
Maker reference Maker reference WQ1800616F62

WQ1800616F62 SCREW A HEAD HEXAGONALE BRIDEE

More information

Quantity required : 2

WQ1800820F62 - VIS A TETE HEXAGONALE BRIDEE

7
P2R reference P2R reference 173425
Maker reference Maker reference WQ1800820F62

WQ1800820F62 SCREW A HEAD HEXAGONALE BRIDEE

More information

Quantity required : 1

BUTEE/TIRANT OUVERTURE DE PORTIERE FRONT OEM PIAGGIO PORTER NP6 2021 >-WC3610120001A0

8
P2R reference P2R reference 173423
Maker reference Maker reference WC3610120001A0

BUTEE/TIRANT OUVERTURE DE PORTIERE FRONT OEM PIAGGIO PORTER NP6 2021 >-WC3610120001A0

More information

Quantity required : 1

WQ1800616F62 - VIS A TETE HEXAGONALE BRIDEE

9
P2R reference P2R reference 173424
Maker reference Maker reference WQ1800616F62

WQ1800616F62 SCREW A HEAD HEXAGONALE BRIDEE

More information

Quantity required : 2

WQ1800820F62 - VIS A TETE HEXAGONALE BRIDEE

10
P2R reference P2R reference 173425
Maker reference Maker reference WQ1800820F62

WQ1800820F62 SCREW A HEAD HEXAGONALE BRIDEE

More information

Quantity required : 1

WL0610163702A0 - RH FRONT DOOR INTERIOR S SQUARE ASSY

11
P2R reference P2R reference 173426
Maker reference Maker reference WL0610163702A0

WL0610163702A0 RH FRONT DOOR INTERIOR S SQUARE ASSEMBLY

More information

Quantity required : 1

WL0610161500A0 - LH FRONT DOOR INTERIOR S SQUARE ASSY

12
P2R reference P2R reference 173427
Maker reference Maker reference WL0610161500A0

WL0610161500A0 LH FRONT DOOR INTERIOR S SQUARE ASSEMBLY

More information

Quantity required : 1

RIVET A PRESSION OEM PIAGGIO PORTER NP6-W1B14861200034

13
P2R reference P2R reference 173428
Maker reference Maker reference W1B14861200034

RIVET A PRESSION OEM PIAGGIO PORTER NP6-W1B14861200034

More information

Quantity required : 6

WC3640180005A0 - DOOR BUFFER BLOCK

14
P2R reference P2R reference 173429
Maker reference Maker reference WC3640180005A0

WC3640180005A0 DOOR BUFFER BLOCK

More information

Quantity required : 4

GASKET OF COMPARTIMENT DE PORTIERE FRONT OEM PIAGGIO PORTER NP6 2021 >-WC4610130009A0

15
P2R reference P2R reference 173430
Maker reference Maker reference WC4610130009A0

GASKET OF COMPARTIMENT DE PORTIERE FRONT OEM PIAGGIO PORTER NP6 2021 >-WC4610130009A0

More information

Quantity required : 2
