Vehicle Exploded View - PIAGGIO VU PORTER NP6 1500 Porter NP6 (TW 3250) M.Y. 2022
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

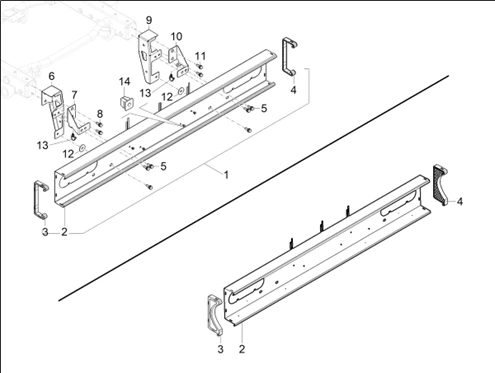

05_châssis - plastiques : 05.03 03_CACHES ARRIÈRE - PARE-CHOC
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1351/Porter_NP6_TW_3250_M.Y._2022_05.03.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/8/7/0/7/8/img/187078.jpg)
1 |
PARE-CHOCS ARRIERE COMPLET CORIGINE PIAGGIO PORTER NP6 2021> -WET403302001A0 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/1/6/0/4/5/img/216045.JPG)
2 |
PROTECTOR-CHOCS REAR (WITHOUT LATCH RIGHT ET LEFT) OEM PIAGGIO PORTER NP6 2021 >-WET403302071A0 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/3/4/9/9/img/173499.JPG)
3 |
LATCH LEFT DE PROTECTOR CHOC OEM PIAGGIO PORTER NP6-WET403302051A0 More informationQuantity required : 1 |
|||||||||
3 |
WET85000000012-LH FRAME FOR REAR LOWER PLATE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/3/4/9/8/img/173498.JPG)
4 |
LATCH RIGHT DE PROTECTOR CHOC OEM PIAGGIO PORTER NP6-WET403302050A0 More informationQuantity required : 1 |
|||||||||
|
4 |
WET85000000013-RH FRAME FOR REAR LOWER PLATE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/3/5/0/0/img/173500.JPG)
5 |
SCREW WITH DOUBLE WASHER OEM PIAGGIO PORTER NP6 SW/TW-WQ146B1030F62 More informationQuantity required : 6 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/3/5/0/1/img/173501.jpg)
6 |
BRACKET LEFT PROTECTOR-CHOCS REAR OEM PIAGGIO PORTER NP6 2021 >-WET403302021A0 More informationQuantity required : 1 |
|||||||||
|
8 |
SCREW WITH DOUBLE WASHER OEM PIAGGIO PORTER NP6 SW/TW-WQ146B1030F62 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/3/5/0/2/img/173502.JPG)
9 |
BRACKET RIGHT PROTECTOR-CHOCS REAR OEM PIAGGIO PORTER NP6 2021 >-WET403302082A0 More informationQuantity required : 1 |
|||||||||
|
11 |
SCREW WITH DOUBLE WASHER OEM PIAGGIO PORTER NP6 SW/TW-WQ146B1030F62 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/5/9/3/img/127593.jpg)
13 |
CLAMP SERRE CABLE OEM PIAGGIO COMMON A LA RANGE-1D001143 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/0/1/9/img/109019.jpg)
14 |
AGRAPHE/CHEVILLE A EXPENSION OEM PIAGGIO COMMON A LA RANGE-157716 More informationQuantity required : 6 |
|||||||||
