Vehicle Exploded View - PIAGGIO VU PORTER NP6 1500 Porter NP6 (TW 3250) M.Y. 2022
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

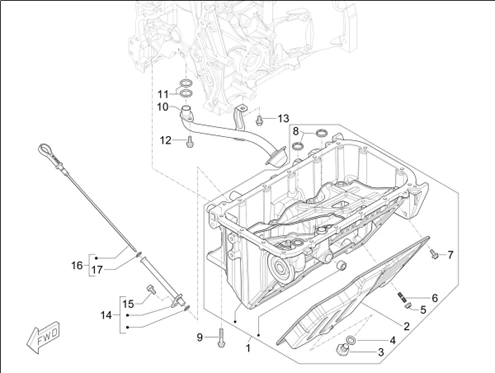

01_moteur : 01.06 06_CARTER D'HUILE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1351/Porter_NP6_TW_3250_M.Y._2022_01.06.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/3/0/6/2/img/173062.jpg)
1 |
CASING A OIL OEM PIAGGIO PORTER NP6 2021 >-1A012358 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/3/0/6/3/img/173063.JPG)
2 |
COVER OIL LOWER-1A019322 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/4/5/6/8/img/134568.jpg)
3 |
CAP VIDANGE OIL OEM PIAGGIO PORTER E6 2015 > 2020, PORTER NP6 2021 >-1A005609 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/4/5/7/9/img/134579.jpg)
4 |
GASKET CAP DE VIDANGE OIL OEM PIAGGIO PORTER E6 2015 > 2020, NP6 2021 >-1A005608 More informationQuantity required : 1 |
||||||
5 |
1A019291 HEX FLANGED NUT More informationQuantity required : 2 |
||||||
|
6 |
1A019290 STUD MIDDLE ROOT More informationQuantity required : 2 |
||||||
|
7 |
1A019289 HEXAG HEAD SCREW More informationQuantity required : 10 |
||||||
|
8 |
1A019288 SEAL RING O RING More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/9/4/4/img/110944.JPG)
9 |
SCREW FLANGE TH (M6X25) OEM PIAGGIO COMMON A LA RANGE-B010073 More informationQuantity required : 16 |
||||||
|
10 |
1A020492-FLOTTEUR D'HUILE COMPLETE More informationQuantity required : 1 |
||||||
|
11 |
1A013392-O-RING (O-RING) More informationQuantity required : 2 |
||||||
|
12 |
1A012666 SCREW A HEAD HEXAGONALE BRIDEE More informationQuantity required : 1 |
||||||
|
13 |
B010018 BOLT More informationQuantity required : 1 |
||||||
|
14 |
1F000865 TUBE DE NIVEAU D'HUILE More informationQuantity required : 1 |
||||||
|
15 |
B010018 BOLT More informationQuantity required : 1 |
||||||
|
16 |
1A012357 ROD JAUGE D'HUILE COMPLETE More informationQuantity required : 1 |
||||||
|
17 |
1A013393 - JOINT TORIQUE (O-RING) More informationQuantity required : 1 |
