Vehicle Exploded View - PIAGGIO VU PORTER NP6 1500 Porter NP6 (TW 3250) M.Y. 2022
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

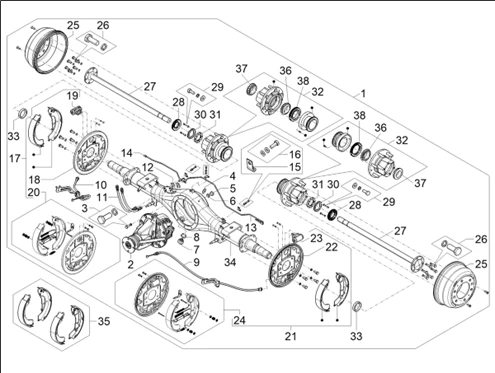

03_châssis - organes de transmission : 03.02 02_ESSIEU ARRIÈRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1351/Porter_NP6_TW_3250_M.Y._2022_03.02.png)
1 |
WET240010101A0 REAR AXLE ASSEMBLY CAB TW More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/7/1/1/5/img/177115.jpg)
1 |
ESSIEU REAR COMPLETE OEM PIAGGIO PORTER NP6 TW 2021 >-WET240010103A0 More informationQuantity required : 1 |
||||||
|
2 |
WET240210102A0-ENSEMBLE DIFFERENTIEL More informationQuantity required : 1 |
||||||
|
2 |
WET240210103A0-ENSEMBLE DIFFERENTIEL More informationQuantity required : 1 |
||||||
|
3 |
WET292550204A0 CONE FIXING SCREW AND WASHER More informationQuantity required : 10 |
||||||
|
4 |
WET340420101A0-CLAPET DE DECHARGE OIL More informationQuantity required : 1 |
||||||
|
5 |
WET240280102A0 OIL FILLING PLUG AND SEALING WASHER More informationQuantity required : 1 |
||||||
|
6 |
WET240280108A0-GASKET REMPLISSAGE D'HUILE More informationQuantity required : 1 |
||||||
|
7 |
WET240280101A0-CAP VID. OIL More informationQuantity required : 1 |
||||||
|
8 |
WET340160200A0-GASKET EVACUATION OIL More informationQuantity required : 1 |
||||||
|
9 |
WET240160200A0-CABLE SECONDAIRE BRAKE A MAIN LEFT More informationQuantity required : 1 |
||||||
|
10 |
WET240160500A0-CABLE SECONDAIRE BRAKE A MAIN RIGHT More informationQuantity required : 1 |
||||||
|
11 |
WET356005090A0 (*) REAR BRAKE HOSE ASSEMBLY More informationQuantity required : 2 |
||||||
|
12 |
WET173220100A0 BRAKE HOSE LOCKING PLATE More informationQuantity required : 2 |
||||||
|
13 |
WET356004082A0-HOSE RIGIDE BRAKE LEFT More informationQuantity required : 1 |
||||||
|
14 |
WET356004081A0-HOSE RIGIDE BRAKE RIGHT More informationQuantity required : 1 |
||||||
|
15 |
WET356007010A0 BRAKE MANIFOLD CLAMP More informationQuantity required : 3 |
||||||
|
16 |
WET292550200A0 BRAKE MANIFOLD FIXING SCREW More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/8/7/0/7/3/img/187073.jpg)
17 |
ENSEMBLE OF BRAKE REAR RIGHT OEM PIAGGIO PORTER NP6 DOUBLE ESSIEU 2021 >-WET240100401A0 More informationQuantity required : 1 |
||||||
|
18 |
WET240120101A0-(*) BRAKE BASE PLATE RR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/0/1/9/9/7/img/201997.jpg)
19 |
CYLINDER OF BRAKE REAR OEM PIAGGIO PORTER NP6 2021 > TW-WET24000000007 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/3/3/1/0/img/173310.jpg)
20 |
KIT DE PIECES DE RECHANGE QUINCAILLERIE BRAKE REAR RIGHT OEM PORTER NP6 2021 >-WET240330200A0 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/8/7/0/7/2/img/187072_20260109155108.jpg)
21 |
ENSEMBLE OF BRAKE REAR LEFT OEM PIAGGIO PORTER NP6 DOUBLE ESSIEU 2021 >-WET240100301A0 More informationQuantity required : 1 |
||||||
|
22 |
WET240120100A0-(*) BRAKE BASE PLATE LF More informationQuantity required : 1 |
||||||
|
23 |
CYLINDER OF BRAKE REAR OEM PIAGGIO PORTER NP6 2021 > TW-WET24000000007 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/3/3/1/2/img/173312.jpg)
24 |
KIT DE PIECES DE RECHANGE QUINCAILLERIE BRAKE REAR LEFT OEM PORTER NP6 2021 >-WET240330100A0 More informationQuantity required : 1 |
||||||
|
25 |
TAMBOUR OF BRAKE REAR OEM PIAGGIO PORTER NP6 TW 2021 >-WET240040101A0 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/0/0/1/9/0/img/200190.jpg)
26 |
STUD DE WHEEL OEM PIAGGIO PORTER NP6 TW3000/3250-WET292550207A0 More informationQuantity required : 12 |
||||||
|
27 |
WET240240100A0-HALFSHAFT REAR More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/0/0/1/9/2/img/200192.jpg)
28 |
GASKET OF PONT REAR OEM PIAGGIO PORTER NP6 TW 2021 >-WET240280100A0 More informationQuantity required : 2 |
||||||
|
29 |
WET292550203A0-HALFSHAFT RETAINING RING FIXING BOLT More informationQuantity required : 2 |
||||||
|
30 |
WET240240200A0-AXLE SLEEVE More informationQuantity required : 2 |
||||||
|
31 |
WET240180100A0-HUB RING More informationQuantity required : 2 |
||||||
|
32 |
HUB DE REAR WHEEL OEM PIAGGIO PORTER NP6 2021 >-WET240250300A0 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/0/0/1/9/7/img/200197.jpg)
33 |
BUSH ETANCHEITE ESSIEU REAR OEM PIAGGIO NP6 SW 2021 >-WET240250600A0 More informationQuantity required : 2 |
||||||
|
34 |
WET240230101A0-REAR AXLE HOUSING ASSEMBLY More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/8/7/0/7/1/img/187071.jpg)
35 |
KIT MACHOIRES OF BRAKE REAR OEM PIAGGIO PORTER NP6 2021 >-1R000531 More informationQuantity required : 1 |
||||||
|
36 |
WET24000000010-(*) RR WHEEL HUB INNER BEARING (32010JR More informationQuantity required : 2 |
||||||
|
37 |
WET24000000011-(*) RR WHEEL HUB OUTER BEARING (32009JR More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/2/2/0/2/4/img/222024.jpg)
38 |
OIL SEAL PONT REAR OEM PIAGGIO PORTER NP6 2021 > TW 3000/3250-WET24000000012 More informationQuantity required : 2 |
