Vehicle Exploded View - PIAGGIO VU PORTER ESSENCE/GPL/MÉTANE STANDARD 1000 Porter Multitech E6 E6-C 2015-2019
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

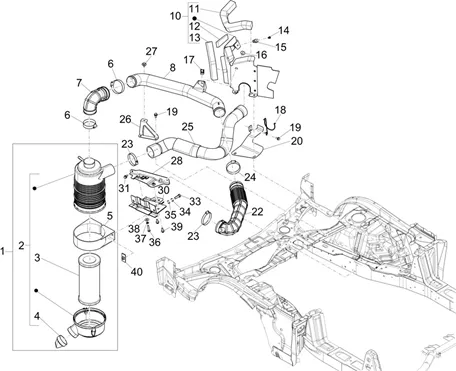

Moteur : 01.38 FILTRE À AIR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/847/Porter_Multitech_E6_E6-C_2015-2019_01.38.png)
1 |
HOUSING AIR FILTER COMPLETE OEM PIAGGIO PORTER MULTITECH 2010 > 2020-B005663 More informationQuantity required : 1 |
||||||
|
2 |
B005205 HOUSING AIR FILTER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/0/0/5/6/img/120056.jpg)
3 |
AIR FILTER OEM PIAGGIO PORTER MULTITECH E4 2010 >, E6 2015 > 2020-B0056606 More informationQuantity required : 1 |
||||||
|
4 |
B005661 VALVE More informationQuantity required : 1 |
||||||
|
5 |
B005209 BRACKET More informationQuantity required : 1 |
||||||
|
6 |
180678 CLAMP More informationQuantity required : 3 |
||||||
|
11 |
1787987Z05000 GASKET More informationQuantity required : 1 |
||||||
|
12 |
1787987Z04000 GASKET More informationQuantity required : 1 |
||||||
|
13 |
1787987Z03000 GASKET More informationQuantity required : 1 |
||||||
|
14 |
D9356715014 SCREW More informationQuantity required : 1 |
||||||
|
15 |
B004982 GUIDE CABLE More informationQuantity required : 1 |
||||||
|
16 |
9004119260000 BOLT More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
17 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 2 |
||||||
|
18 |
9004462322000 CLAMP More informationQuantity required : 1 |
||||||
|
19 |
D9165260616 - BOULON More informationQuantity required : 5 |
||||||
|
19 |
D9165260616 - BOULON More informationQuantity required : 5 |
||||||
|
20 |
B005672 BRACKET More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/3/0/img/66230.jpg)
23 |
CLAMP (D64) OEM PIAGGIO COMMON A LA RANGE-289690 More informationQuantity required : 2 |
||||||
|
24 |
180678 CLAMP More informationQuantity required : 3 |
||||||
|
25 |
B005553 TUBE OIL More informationQuantity required : 1 |
||||||
|
27 |
9004119260000 BOLT More informationQuantity required : 3 |
||||||
|
31 |
D9165260616 - BOULON More informationQuantity required : 2 |
||||||
|
31 |
D9165260616 - BOULON More informationQuantity required : 2 |
||||||
|
33 |
031121-BOLT S03112100 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/8/img/65418.jpg)
34 |
WASHER (8, 15X13, 75X4, 5) OEM PIAGGIO COMMON A LA RANGE-016408 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/9/img/63779.jpg)
35 |
WASHER PLATE (8, 4X15X1, 5) OEM PIAGGIO COMMON A LA RANGE-003058 More informationQuantity required : 2 |
||||||
|
36 |
030052-SCREW S03005200 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/6/img/65416.jpg)
37 |
WASHER ELASTIC (6, 4X11, 8X1) OEM PIAGGIO COMMON A LA RANGE-016406 More informationQuantity required : 1 |
||||||
|
38 |
016673-WASHER More informationQuantity required : 1 |
||||||
|
39 |
D9165160618 BOLT More informationQuantity required : 2 |
||||||
|
40 |
B005688 PLATE More informationQuantity required : 2 |
