Vehicle Exploded View - PIAGGIO VU PORTER ESSENCE/GPL/MÉTANE STANDARD 1000 Porter Multitech E6 E6-C 2015-2019
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

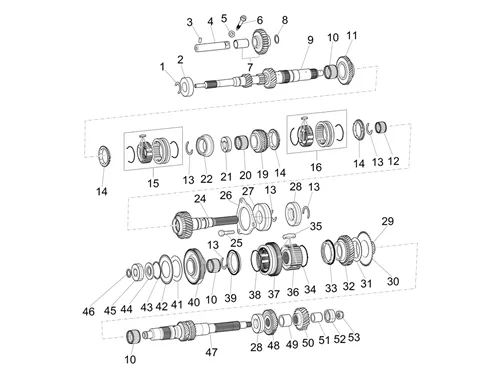

Moteur : 01.27 COMPOSANTS DE LA BOÎTE DE VITESSES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/847/Porter_Multitech_E6_E6-C_2015-2019_01.27.png)
1 |
B010297 CIRCLIPS More informationQuantity required : 1 |
||||||
|
2 |
BEARING SHAFT PRIMAIRE OEM PIAGGIO PORTER 2010 >-B010296 More informationQuantity required : 1 |
||||||
|
3 |
1A005765 GOUPILLE More informationQuantity required : 1 |
||||||
|
4 |
1A005771 SHAFT RETR. More informationQuantity required : 1 |
||||||
|
5 |
B010464 WASHER More informationQuantity required : 1 |
||||||
|
6 |
B010463 BOLT More informationQuantity required : 1 |
||||||
|
7 |
B010459 CAME STEP ARR. More informationQuantity required : 1 |
||||||
|
8 |
B010462 WASHER More informationQuantity required : 1 |
||||||
|
9 |
1A005161 SHAFT PRIMAIRE More informationQuantity required : 1 |
||||||
|
10 |
B010298 BUTEE A AIGUI More informationQuantity required : 3 |
||||||
|
11 |
B010299 GEAR 5 VIT More informationQuantity required : 1 |
||||||
|
12 |
B010311 BUTEE A AIGUI More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/6/4/6/img/111646.jpg)
13 |
CLIPS/CIRCLIPS DE BOX OF SPEED OEM PIAGGIO PORTER 2010 > 2020-B010315 More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/5/4/6/1/img/115461.jpg)
14 |
ANNEAU DE SYNCHRONISATION 1 OEM PIAGGIO PORTER DIESEL 2010 > 2015/MULTITECH E6 2015 > 2020-B011561 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/8/3/9/7/img/158397.jpg)
15 |
GROUP DE SELECTION DE SPEED HAUTE OEM PIAGGIO PORTER E6 2015 > 2020-1R000330 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/7/4/9/9/img/117499.jpg)
16 |
GROUP DE SELECTION DES VITESSES HAUTES OEM PIAGGIO PORTER 2010 > 2020-B010929 More informationQuantity required : 2 |
||||||
|
19 |
B010885 GEAR More informationQuantity required : 1 |
||||||
|
20 |
B010308 BUTEE A AIGUI More informationQuantity required : 1 |
||||||
|
21 |
1A005750 BEARING A AGUILLES More informationQuantity required : 1 |
||||||
|
22 |
B010306 SPACER More informationQuantity required : 1 |
||||||
|
24 |
1A005754 SHAFT DE TRANSMISSION More informationQuantity required : 1 |
||||||
|
25 |
1A005757 SCREW More informationQuantity required : 3 |
||||||
|
26 |
1A005755 PLATE More informationQuantity required : 1 |
||||||
|
27 |
B010314 BEARING More informationQuantity required : 1 |
||||||
|
28 |
B010319 BEARING More informationQuantity required : 2 |
||||||
|
29 |
1A005772 CIRCLIPS More informationQuantity required : 1 |
||||||
|
30 |
1A005777 GEAR More informationQuantity required : 1 |
||||||
|
31 |
1A005776 COVER More informationQuantity required : 1 |
||||||
|
32 |
1A005775 GEAR 1 VIT More informationQuantity required : 1 |
||||||
|
33 |
B011560 CIRCLIPS More informationQuantity required : 1 |
||||||
|
34 |
B010930 SELECTEUR More informationQuantity required : 1 |
||||||
|
35 |
B010930 SELECTEUR More informationQuantity required : 3 |
||||||
|
36 |
B010930 SELECTEUR More informationQuantity required : 1 |
||||||
|
37 |
B010930 SELECTEUR More informationQuantity required : 1 |
||||||
|
38 |
B010930 SELECTEUR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/4/8/3/2/img/114832.jpg)
39 |
BUSH/ANNEAU DE SYNCHRNISATION (N1) OEM PIAGGIO PORTER 2010 > 2020-B010895 More informationQuantity required : 1 |
||||||
|
40 |
1A005762 GEAR 1 VIT More informationQuantity required : 1 |
||||||
|
41 |
1A005774 COVER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/4/7/2/9/img/134729.jpg)
42 |
SPROCKET DE STEP REAR OEM PIAGGIO PORTER MULTITECH E6 2015 < 2020-1A005773 More informationQuantity required : 1 |
||||||
|
43 |
1A005772 CIRCLIPS More informationQuantity required : 1 |
||||||
|
44 |
1A005761 DEFLECTOR More informationQuantity required : 1 |
||||||
|
45 |
B010323 BEARING More informationQuantity required : 1 |
||||||
|
46 |
B010322 CIRCLIPS More informationQuantity required : 1 |
||||||
|
47 |
B010338 SHAFT SEC.. More informationQuantity required : 1 |
||||||
|
48 |
B010896 GEAR More informationQuantity required : 1 |
||||||
|
49 |
B010452 SPACER More informationQuantity required : 1 |
||||||
|
50 |
1A005763 GEAR More informationQuantity required : 1 |
||||||
|
51 |
B010454 SPACER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/4/7/7/4/img/134774.jpg)
52 |
BEARING BOX OF SPEED OEM PIAGGIO PORTER MULTITECH 2015 > 2020 More informationQuantity required : 1 |
||||||
|
53 |
B010456 NUT More informationQuantity required : 1 |
