Vehicle Exploded View - PIAGGIO VU PORTER ESSENCE/GPL/MÉTANE STANDARD 1000 Porter Multitech E6 E6-C 2015-2019
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

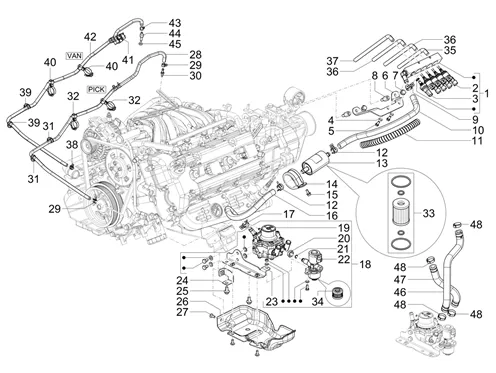

Gpl : 08.03 INSTALATION DE L'ALIMENTATION GPL
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/847/Porter_Multitech_E6_E6-C_2015-2019_08.03.png)
1 |
1A006490 PUMP INJECTION More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/2/4/7/6/img/122476.jpg)
2 |
INJECTEUR GPL OEM PIAGGIO PORTER MULTITECH 2010 > 2020-B005781 More informationQuantity required : 4 |
|||||||||
|
3 |
659736 - BOITIER CAPTEUR More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/7/img/63777.jpg)
4 |
WASHER PLATE (6X12X1) OEM PIAGGIO COMMON A LA RANGE-003056 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/3/9/img/65639.jpg)
5 |
SCREW TH (6X16) OEM PIAGGIO COMMON A LA RANGE-031088 More informationQuantity required : 2 |
|||||||||
|
6 |
1A006838 BRACKET More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/0/8/7/img/151087.jpg)
7 |
SCREW FLANGE TH (8X10, 3) OEM PIAGGIO COMMON A LA RANGE-1A003151 More informationQuantity required : 2 |
|||||||||
|
8 |
B005727 BRACKET More informationQuantity required : 2 |
|||||||||
|
11 |
612476 - SPIRALE DYNAFL More informationQuantity required : 1 |
|||||||||
|
15 |
9165140616000 - BOULON More informationQuantity required : 1 |
|||||||||
|
20 |
B005789 SPACER More informationQuantity required : 1 |
|||||||||
|
21 |
B005790 GASKET More informationQuantity required : 1 |
|||||||||
|
22 |
B005788 CONTACTEUR ELECTR. More informationQuantity required : 1 |
|||||||||
|
25 |
D9165160820 BOLT More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/1/7/img/66117.jpg)
27 |
SCREW TBC (6X16) OEM PIAGGIO COMMON A LA RANGE-272836 More informationQuantity required : 3 |
|||||||||
|
29 |
1F000320 CLAMP More informationQuantity required : 2 |
|||||||||
|
30 |
1F000321 FITTING More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/1/9/img/72919.jpg)
31 |
CLIPS ATTACHE HARNESS OEM PIAGGIO COMMON A LA RANGE-CM013203 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/2/9/4/1/img/142941.jpg)
34 |
KIT FILTER GPL PHASE LIQUIDE OEM PIAGGIO PORTER MULTITECH E6 2015 > 2020/NP6 2021 >-B005791 More informationQuantity required : 1 |
|||||||||
|
35 |
1A006881 HOSE More informationQuantity required : 1 |
|||||||||
|
36 |
1A006882 HOSE More informationQuantity required : 2 |
|||||||||
|
37 |
1A006883 HOSE More informationQuantity required : 1 |
|||||||||
|
38 |
1F000320 CLAMP More informationQuantity required : 1 |
|||||||||
|
39 |
CLIPS ATTACHE HARNESS OEM PIAGGIO COMMON A LA RANGE-CM013203 More informationQuantity required : 2 |
|||||||||
|
41 |
CM017820 PINCE DE RETENUE More informationQuantity required : 1 |
|||||||||
|
43 |
B005780 CLAMP More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/7/4/img/65474.jpg)
45 |
NUT M6 OEM PIAGGIO COMMON A LA RANGE-020206 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/2/6/0/4/img/142604.jpg)
48 |
CLAMP SERRAGE HOSE OEM PIAGGIO COMMON A LA RANGE-CM001906 More informationQuantity required : 4 |
|||||||||
