Vehicle Exploded View - PIAGGIO VU PORTER ESSENCE/GPL/MÉTANE STANDARD 1000 Porter Multitech E6 E6-C 2015-2019
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

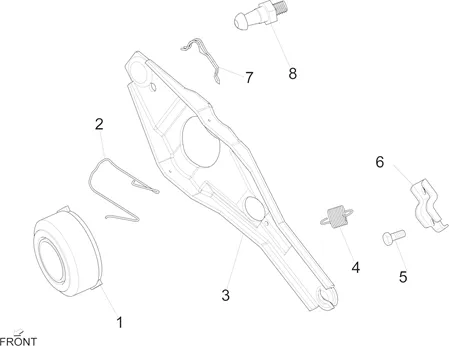

Moteur : 01.30 EMBRAYAGE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/847/Porter_Multitech_E6_E6-C_2015-2019_01.30.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/4/8/3/2/img/134832.jpg)
1 |
BUTEE CLUTCH OEM PIAGGIO PORTER MULTITECH E6 2015 > 2020, NP6 2021 >-1A005162 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/3/0/5/1/img/113051.jpg)
2 |
SPRING BUTEE CLUTCH OEM PIAGGIO PORTER 2010 >, NP6 2021 >-B010292 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/4/8/6/0/img/134860.jpg)
3 |
LEVER CLUTCH OEM PIAGGIO PORTER E6 2015 > 2020-1A005780 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/2/4/8/7/img/112487.jpg)
4 |
SPRING OF RETURN FOURCHETTE CLUTCH OEM PIAGGIO PORTER 2010 > 2020-B010294 More informationQuantity required : 1 |
||||||
5 |
1A005782 SCREW More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/4/5/8/8/img/134588.JPG)
6 |
SPRING/LEVER CLUTCH OEM PIAGGIO PORTER MULTITECH E6 2015-2020-B005907 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/3/0/8/4/img/113084.jpg)
7 |
SPRING OF RETURN FOURCHETTE CLUTCH OEM PIAGGIO PORTER 2010, NP6-B010288 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/6/7/6/img/111676.jpg)
8 |
SCREW SPECIALE CLUTCH OEM PIAGGIO PORTER 2010 > 2020-B010287 More informationQuantity required : 1 |
