Vehicle Exploded View - PIAGGIO VU PORTER ESSENCE/GPL/MÉTANE STANDARD 1000 Porter Multitech E6 E6-C 2015-2019
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

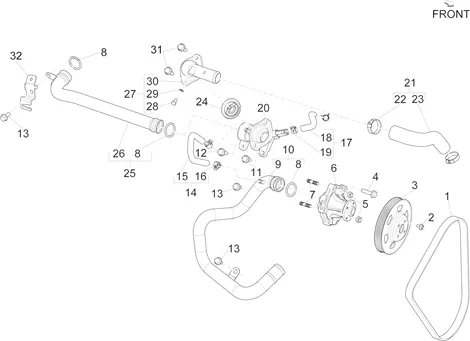

Moteur : 01.16 POMPE À EAU
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/847/Porter_Multitech_E6_E6-C_2015-2019_01.16.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/4/8/6/4/img/134864.jpg)
1 |
DRIVE BELT OF WATER PUMP OEM PIAGGIO PORTER E6 2015 > 2019-1A005573 More informationQuantity required : 1 |
||||||
2 |
1A005575 SCREW FIX More informationQuantity required : 4 |
||||||
|
3 |
1A005574 PULLEY PUMP More informationQuantity required : 1 |
||||||
|
4 |
B010221 BOLT More informationQuantity required : 4 |
||||||
|
5 |
1A005572 NUT More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/5/0/9/5/img/135095.jpg)
6 |
WATER PUMP OEM PIAGGIO PORTER E6 2015 > 2020, NP6 2021-1A005570 More informationQuantity required : 1 |
||||||
|
7 |
1A005571 STUD More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/4/6/1/2/img/134612.jpg)
8 |
O-RING WATER PUMP OEM PIAGGIO PORTER MULTITECH E6 2015 > 2020-1A005578 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/4/9/3/0/img/134930.jpg)
9 |
HOSE/HOSE ENTREE WATER PUMP OEM PIAGGIO PORTER MULTITECH E6 2015 > 2020-1F000081 More informationQuantity required : 1 |
||||||
|
10 |
HOSE/HOSE ENTREE WATER PUMP OEM PIAGGIO PORTER MULTITECH E6 2015 > 2020-1F000081 More informationQuantity required : 1 |
||||||
|
11 |
B010079 BOLT More informationQuantity required : 1 |
||||||
|
12 |
B010101 BOLT More informationQuantity required : 3 |
||||||
|
13 |
1A005466 SCREW FIX. M8X16 More informationQuantity required : 3 |
||||||
|
14 |
1A005579 - TUYAU More informationQuantity required : 1 |
||||||
|
15 |
1A005580 - TUYAU More informationQuantity required : 1 |
||||||
|
16 |
1A005581 CLAMP More informationQuantity required : 2 |
||||||
|
17 |
1A005586 TUBE More informationQuantity required : 1 |
||||||
|
18 |
1A005586 TUBE More informationQuantity required : 1 |
||||||
|
18 |
1A005586 TUBE More informationQuantity required : 1 |
||||||
|
19 |
1A005581 CLAMP More informationQuantity required : 2 |
||||||
|
20 |
1A005588 CORP THERMOSTAT More informationQuantity required : 1 |
||||||
|
21 |
1A005583 HOSE WATER More informationQuantity required : 1 |
||||||
|
22 |
1A005583 HOSE WATER More informationQuantity required : 2 |
||||||
|
23 |
1A005583 HOSE WATER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/4/8/0/2/img/134802.jpg)
24 |
THERMOSTAT/CALORSTAT OEM PIAGGIO PORTER E6 2015 > 2020, NP6 2021 >-1A005593 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/4/9/1/7/img/134917.jpg)
25 |
HOSE DE SORTIE WATER OEM PIAGGIO PORTER E6 2015 > 2020-1A005576 More informationQuantity required : 1 |
||||||
|
26 |
HOSE DE SORTIE WATER OEM PIAGGIO PORTER E6 2015 > 2020-1A005576 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/4/7/9/5/img/134795.jpg)
27 |
COVER DE THERMOSTAT OEM PIAGGIO PORTER 2015 > 2020, NP6 2021 >-1A005589 More informationQuantity required : 1 |
||||||
|
28 |
COVER DE THERMOSTAT OEM PIAGGIO PORTER 2015 > 2020, NP6 2021 >-1A005589 More informationQuantity required : 1 |
||||||
|
29 |
COVER DE THERMOSTAT OEM PIAGGIO PORTER 2015 > 2020, NP6 2021 >-1A005589 More informationQuantity required : 1 |
||||||
|
30 |
COVER DE THERMOSTAT OEM PIAGGIO PORTER 2015 > 2020, NP6 2021 >-1A005589 More informationQuantity required : 1 |
||||||
|
31 |
B010101 BOLT More informationQuantity required : 3 |
