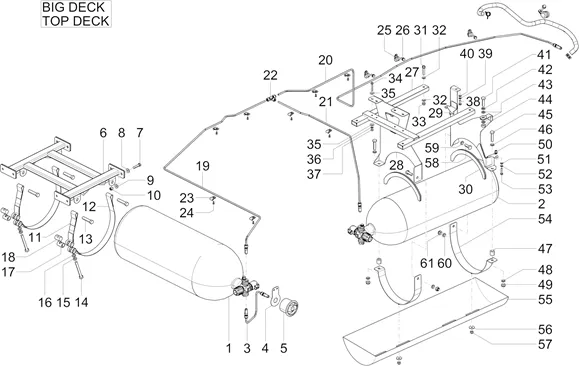

Méthane : 09.02 RÉSERVOIR CARBURANT MÉTHANE II
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/847/Porter_Multitech_E6_E6-C_2015-2019_09.02.png)
1 |
B007935 RESERVOIRE GAS More informationQuantity required : 1 |
||||||
|
2 |
B007936 RESERVOIRE GAS More informationQuantity required : 1 |
||||||
|
4 |
B007980 BRACKET More informationQuantity required : 1 |
||||||
|
5 |
B007939 PRISE EN CHARGE More informationQuantity required : 1 |
||||||
|
6 |
B007926 BRACKET More informationQuantity required : 1 |
||||||
|
7 |
015861-BOLT S01586100 More informationQuantity required : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/6/4/img/65364.jpg)
8 |
WASHER PLATE (8, 2X20X2, 5) OEM PIAGGIO COMMON A LA RANGE-013861 More informationQuantity required : 8 |
||||||
|
9 |
WASHER PLATE (8, 2X20X2, 5) OEM PIAGGIO COMMON A LA RANGE-013861 More informationQuantity required : 8 |
||||||
|
10 |
002418 NUT More informationQuantity required : 8 |
||||||
|
11 |
BANDE DE SERRAGE BOUTEILLES DE THROTTLE (176. 5 MM) OEM PIAGGIO PORTER 2010 > 2020, NP6 2021 >-B007930 More informationQuantity required : 2 |
||||||
|
12 |
B007929 TIGHTENING OF LA CEINTURE BOUTEILLES DE THROTTLE More informationQuantity required : 2 |
||||||
|
13 |
B007931 PIN BANDE OF FITTING KIT More informationQuantity required : 4 |
||||||
|
14 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/9/img/65419.jpg)
15 |
WASHER GROWER (10. 6X17. 6X5) OEM PIAGGIO COMMON A LA RANGE-016410 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/2/3/img/65423.jpg)
16 |
WASHER PLATE (10, 4X18X2) OEM PIAGGIO COMMON A LA RANGE-016626 More informationQuantity required : 2 |
||||||
|
17 |
B007932 TANK ROD FORÉS BANDE OF FITTING KIT More informationQuantity required : 2 |
||||||
|
18 |
B007933 FILETÉ ROD More informationQuantity required : 2 |
||||||
|
22 |
B007949 FITTING D'ADMISSION More informationQuantity required : 1 |
||||||
|
23 |
660684 CLAMP More informationQuantity required : 8 |
||||||
|
24 |
661065 - RIVET More informationQuantity required : 8 |
||||||
|
26 |
D9165260616 - BOULON More informationQuantity required : 3 |
||||||
|
26 |
D9165260616 - BOULON More informationQuantity required : 3 |
||||||
|
27 |
B005728 BRACKET More informationQuantity required : 1 |
||||||
|
30 |
B007982 GAINE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/4/9/1/img/110491.jpg)
31 |
SCREW TH (8X40) WITH WASHER OEM PIAGGIO COMMON A LA RANGE-D9161160840 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/9/img/63779.jpg)
32 |
WASHER PLATE (8, 4X15X1, 5) OEM PIAGGIO COMMON A LA RANGE-003058 More informationQuantity required : 8 |
||||||
|
33 |
B005728 BRACKET More informationQuantity required : 0 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/7/1/6/img/151716.jpg)
34 |
SCREW FLANGE TH (6X40) OEM PIAGGIO COMMON A LA RANGE-1A011120 More informationQuantity required : 4 |
||||||
|
34 |
SCREW FLANGE TH (6X40) OEM PIAGGIO COMMON A LA RANGE-1A011120 More informationQuantity required : 4 |
||||||
|
35 |
709056 WASHER More informationQuantity required : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/6/img/65416.jpg)
36 |
WASHER ELASTIC (6, 4X11, 8X1) OEM PIAGGIO COMMON A LA RANGE-016406 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/6/1/img/65461.jpg)
37 |
NUT (M6) OEM PIAGGIO COMMON A LA RANGE-020106 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/4/1/img/65641.jpg)
38 |
SCREW TH (6X20) OEM PIAGGIO COMMON A LA RANGE-031090 More informationQuantity required : 1 |
||||||
|
39 |
WASHER ELASTIC (6, 4X11, 8X1) OEM PIAGGIO COMMON A LA RANGE-016406 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/6/2/img/65362.jpg)
40 |
WASHER PLATE (6. 4X13X1. 5) OEM PIAGGIO COMMON A LA RANGE-013777 More informationQuantity required : 1 |
||||||
|
41 |
661075 SCREW More informationQuantity required : 1 |
||||||
|
42 |
WASHER GROWER (10. 6X17. 6X5) OEM PIAGGIO COMMON A LA RANGE-016410 More informationQuantity required : 1 |
||||||
|
43 |
WASHER PLATE (10, 4X18X2) OEM PIAGGIO COMMON A LA RANGE-016626 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/5/9/9/img/65599.jpg)
44 |
NUT (10X1. 25) OEM PIAGGIO COMMON A LA RANGE-021110 More informationQuantity required : 1 |
||||||
|
45 |
|
||||||
|
46 |
WASHER PLATE (10, 4X18X2) OEM PIAGGIO COMMON A LA RANGE-016626 More informationQuantity required : 2 |
||||||
|
47 |
660652 SPACER More informationQuantity required : 2 |
||||||
|
48 |
WASHER PLATE (10, 4X18X2) OEM PIAGGIO COMMON A LA RANGE-016626 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/6/5/img/63765.jpg)
49 |
NUT AUTOBLOQUANT/NYLSTOP (M10) OEM PIAGGIO COMMON A LA RANGE-002440 More informationQuantity required : 2 |
||||||
|
50 |
660710 RIVET A DECLIC More informationQuantity required : 1 |
||||||
|
51 |
WASHER PLATE (6. 4X13X1. 5) OEM PIAGGIO COMMON A LA RANGE-013777 More informationQuantity required : 1 |
||||||
|
52 |
WASHER ELASTIC (6, 4X11, 8X1) OEM PIAGGIO COMMON A LA RANGE-016406 More informationQuantity required : 1 |
||||||
|
53 |
030052-SCREW S03005200 More informationQuantity required : 1 |
||||||
|
54 |
B005718 - SUPPORT RESERVOIRE More informationQuantity required : 1 |
||||||
|
55 |
B007950 PROTECTOR RESERVOIRE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/9/2/img/68492.jpg)
56 |
WASHER PLATE (8X24X2) OEM PIAGGIO COMMON A LA RANGE-709077 More informationQuantity required : 2 |
||||||
|
57 |
709052 NUT More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/5/1/img/65651.jpg)
58 |
SCREW TH (10X30) OEM PIAGGIOCOMMUN A LA RANGE-031157 More informationQuantity required : 2 |
||||||
|
59 |
WASHER PLATE (10, 4X18X2) OEM PIAGGIO COMMON A LA RANGE-016626 More informationQuantity required : 2 |
||||||
|
60 |
WASHER PLATE (10, 4X18X2) OEM PIAGGIO COMMON A LA RANGE-016626 More informationQuantity required : 2 |
||||||
|
61 |
NUT AUTOBLOQUANT/NYLSTOP (M10) OEM PIAGGIO COMMON A LA RANGE-002440 More informationQuantity required : 2 |
