Vehicle Exploded View - PIAGGIO VU PORTER ESSENCE/GPL/MÉTANE STANDARD 1000 Porter Multitech E4 2010 - E5 2013 - E5+ 2014-2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

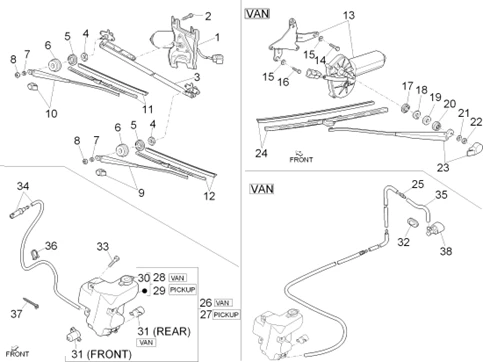

Circuit électrique : 06.12 ESSUIE-GLACES AVANT ET ARRIÈRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1221/Porter_Multitech_E4_2010_-_E5_2013_-_E5_2014-2015_06.12.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/1/5/6/3/img/121563.jpg)
1 |
ENGINE ESSUIE GLACE OEM PIAGGIO PORTER 2010 > 2020-B006169 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/2/1/img/71821.jpg)
2 |
SCREW TH (6X30) OEM PIAGGIO COMMON A LA RANGE-AP8150073 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/0/2/2/6/img/120226.jpg)
3 |
MECANISME ESSUIE GLACE FRONT OEM PIAGGIO PORTER 2010 > 2020-615895 More informationQuantity required : 1 |
||||||
4 |
645436 NUT More informationQuantity required : 2 |
||||||
|
5 |
645435 GASKET More informationQuantity required : 2 |
||||||
|
6 |
645434 WASHER More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/3/9/img/63839.jpg)
7 |
WASHER ELASTIC (8. 4X15X0. 5) OEM PIAGGIO COMMON A LA RANGE-006968 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/4/0/3/5/img/114035.jpg)
8 |
NUT BORGNE (M8) OEM PIAGGIO COMMON A LA RANGE-658842 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/7/7/5/9/img/117759.jpg)
9 |
ARM ESSUIE GLACE LEFT (417) OEM PIAGGIO PORTER 1998 > 2020-660704 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/7/9/4/4/img/117944.jpg)
10 |
ARM ESSUIE GLACE RIGHT (441, 5) OEM PIAGGIO PORTER 2020 <-660705 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/6/4/1/6/img/116416.jpg)
11 |
BALAI ESSUIE GLACE LEFT OEM PIAGGIO PORTER 2010 > 2020-615897 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/6/4/0/2/img/116402.jpg)
12 |
BALAI ESSUIE GLACE RIGHT OEM PIAGGIO PORTER 2010 >-615902 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/2/0/0/0/img/122000.jpg)
13 |
ENGINE ESSUIE GLACE OEM PIAGGIO PORTER VAN 2010 > 2020-B004603 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/1/9/8/img/151198.jpg)
14 |
BOLT TH (6X14) WITH WASHER OEM PIAGGIO COMMON A LA RANGE-CM287314 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/0/5/img/63805.jpg)
15 |
WASHER PLATE OEM PIAGGIO COMMON A LA RANGE-006175 More informationQuantity required : 3 |
||||||
|
16 |
9004119450000 - BOULON More informationQuantity required : 1 |
||||||
|
17 |
645932 CAP More informationQuantity required : 1 |
||||||
|
18 |
645934 SPACER More informationQuantity required : 1 |
||||||
|
19 |
645933 SPACER More informationQuantity required : 1 |
||||||
|
20 |
645931 WASHER More informationQuantity required : 1 |
||||||
|
21 |
WASHER ELASTIC (8. 4X15X0. 5) OEM PIAGGIO COMMON A LA RANGE-006968 More informationQuantity required : 1 |
||||||
|
22 |
645930 NUT More informationQuantity required : 1 |
||||||
|
23 |
644535 ARM More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/7/2/6/0/img/117260.jpg)
24 |
BALAI ESSUIE GLACE REAR OEM PIAGGIO PORTER VAN 2009 > 2020-644536 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/3/9/6/img/110396.jpg)
25 |
8534987Z01000 GASKET More informationQuantity required : 1 |
||||||
|
26 |
8508087Z020006 LAVE-GLACE More informationQuantity required : 1 |
||||||
|
26 |
B023331 LAVE-GLACE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/8/7/8/1/img/118781.jpg)
27 |
1E001186 - LAVE-GLACE More informationQuantity required : 1 |
||||||
|
27 |
8508087Z01000 LAVE-GLACE More informationQuantity required : 1 |
||||||
|
28 |
8533087Z02000 TANK More informationQuantity required : 1 |
||||||
|
29 |
8533087Z01000 TANK More informationQuantity required : 1 |
||||||
|
30 |
8533287Z01000 CAP More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/8/8/9/0/img/118890.jpg)
31 |
PUMP LAVE GLACE OEM PIAGGIO PORTER, CARGO 2015 <-8531087Z02000 More informationQuantity required : 1 |
||||||
|
31 |
PUMP LAVE GLACE OEM PIAGGIO PORTER, CARGO 2015 <-8531087Z02000 More informationQuantity required : 2 |
||||||
|
32 |
D9004480370 GUIDE-CABLE More informationQuantity required : 1 |
||||||
|
33 |
CM287320 SCREW More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/3/1/9/9/img/113199.jpg)
34 |
GICLEUR LAVE GLACE OEM PIAGGIO PORTER 2010 > 2020-B004936 More informationQuantity required : 1 |
||||||
|
35 |
D8538087Z01 PULVERISATEUR More informationQuantity required : 1 |
||||||
|
36 |
D9004464072 CLAMP More informationQuantity required : 3 |
||||||
|
37 |
9004464484000 CLAMP More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/4/3/6/4/img/114364.jpg)
38 |
GICLEUR LAVE GLACE REAR OEM PIAGGIO PORTER VAN 2020 <-8503587Z01000 More informationQuantity required : 1 |
