Vehicle Exploded View - PIAGGIO VU PORTER ESSENCE/GPL/MÉTANE STANDARD 1000 Porter Multitech E4 2010 - E5 2013 - E5+ 2014-2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

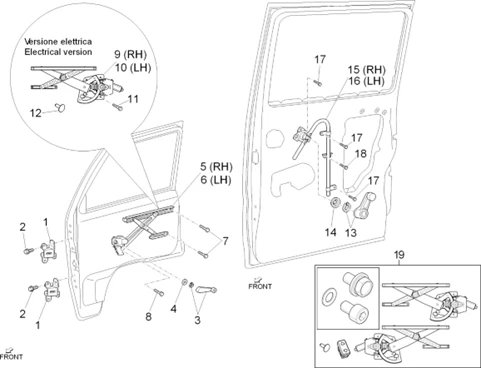

Châssis - parties plastiques - carrosseries : 02.26 LÈVE-VITRE AVANT ET ARRIÈRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1221/Porter_Multitech_E4_2010_-_E5_2013_-_E5_2014-2015_02.26.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/4/0/1/7/img/114017.jpg)
1 |
CHARNIERE DE DOOR FRONT OEM PIAGGIO PORTER, CARGO-6871087Z010006 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/2/4/3/img/110243.jpg)
2 |
SCREW FLANGE TH (8X12) OF FITTING KIT DE CHARNIERE DOOR OEM PIAGGIO PORTER-9004119620000 More informationQuantity required : 16 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/3/3/1/2/img/113312.jpg)
3 |
GRIP/MANIVELLE LEVE VITRE OEM PIAGGIO PORTER-613767 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/2/7/1/img/110271.jpg)
4 |
DISC GRIP LEVE GLACE OEM PORTER 1998 > 2020-6928587Z01000 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/5/6/7/1/img/115671.jpg)
5 |
MECANISME DE LEVE VITRE RIGHT OEM PIAGGIO PORTER-56582R More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/5/6/7/5/img/115675.jpg)
6 |
MECANISME DE LEVE VITRE LEFT OEM PIAGGIO PORTER-56581R More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/8/6/8/img/109868.jpg)
7 |
SCREW TH (6X10) WITH WASHER OEM PIAGGIO COMMON A LA RANGE-9162140610000 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/6/8/3/5/img/176835.jpg)
8 |
SCREW TH (6X12) WITH WASHER OEM PIAGGIO PORTER COMMON A LA RANGE-CM287312 More informationQuantity required : 10 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/3/0/6/1/img/123061.jpg)
9 |
LEVE-VITRE RIGHT VERSION ELECTRIC WITH ENGINE OEM PIAGGIO PORTER MAXXI/MULTITECH 2009 > 02/2011-661047 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/2/9/9/4/img/122994.jpg)
10 |
LEVE-VITRE LEFT VERSION ELECTRIC WITH ENGINE OEM PIAGGIO PORTER MAXXI/MULTITECH 2009 > 2019-661048 More informationQuantity required : 1 |
||||||
|
11 |
SCREW TH (6X12) WITH WASHER OEM PIAGGIO PORTER COMMON A LA RANGE-CM287312 More informationQuantity required : 16 |
||||||
12 |
098698 CAP More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/5/5/7/6/img/115576.jpg)
13 |
GRIP LEVRE VITRE DOOR REAR OEM PIAGGIO PORTER VAN 2020 <-6920787Z01030 More informationQuantity required : 2 |
||||||
|
14 |
DISC GRIP LEVE GLACE OEM PORTER 1998 > 2020-6928587Z01000 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/0/5/8/3/img/120583.jpg)
15 |
LEVE VITRE REAR LEFT OEM PIAGGIO PORTER VAN 1998 > 2020-B005948 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/0/5/2/6/img/120526.jpg)
16 |
LEVE VITRE REAR RIGHT OEM PIAGGIO PORTER VAN 1998 > 2020-B005949 More informationQuantity required : 1 |
||||||
|
17 |
SCREW TH (6X10) WITH WASHER OEM PIAGGIO COMMON A LA RANGE-9162140610000 More informationQuantity required : 8 |
||||||
|
18 |
SCREW TH (6X12) WITH WASHER OEM PIAGGIO PORTER COMMON A LA RANGE-CM287312 More informationQuantity required : 6 |
||||||
|
19 |
KIT LEVE VITRE ELECTRIC RIGHT + LEFT + 1 INTERRUPTEUR OEM PIAGGIO PORTER 2020 <-B023358 More informationQuantity required : 1 |
