Vehicle Exploded View - PIAGGIO VU PORTER ESSENCE/GPL/MÉTANE STANDARD 1000 Porter Multitech E4 2010 - E5 2013 - E5+ 2014-2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

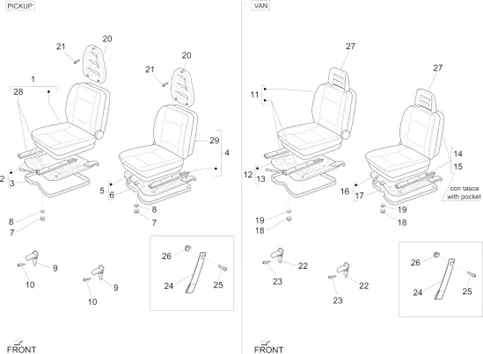

Châssis - parties plastiques - carrosseries : 02.33 SIÈGES AVANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1221/Porter_Multitech_E4_2010_-_E5_2013_-_E5_2014-2015_02.33.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/3/0/4/9/img/143049.jpg)
1 |
SIEGE FRONT RIGHT GREY OEM PIAGGIO PORTER 2020 <-CM281502 More informationQuantity required : 1 |
|||||||||
2 |
645973 COPERC. ISP. * * More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/1/7/3/5/img/121735.jpg)
3 |
GASKET OF SIEGE FRONT OEM PIAGGIO PORTER 2020 <-615932 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/2/3/7/img/151237.jpg)
4 |
SIEGE FRONT LEFT OEM PIAGGIO PORTER 2020 <-CM281601 More informationQuantity required : 1 |
|||||||||
|
5 |
CM038402 PLATEAU ASSISE LEFT More informationQuantity required : 1 |
|||||||||
|
6 |
GASKET OF SIEGE FRONT OEM PIAGGIO PORTER 2020 <-615932 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/4/0/3/5/img/114035.jpg)
7 |
NUT BORGNE (M8) OEM PIAGGIO COMMON A LA RANGE-658842 More informationQuantity required : 8 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/8/img/65418.jpg)
8 |
WASHER (8, 15X13, 75X4, 5) OEM PIAGGIO COMMON A LA RANGE-016408 More informationQuantity required : 8 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/4/8/5/6/img/114856.jpg)
9 |
CHARNIERE SIEGE FRONT OEM PIAGGIO PORTER 2020 <-7137087Z01000 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/0/4/5/img/110045.jpg)
10 |
SCREW TH (8X16) WITH WASHER OEM PIAGGIO PORTER COMMON A LA RANGE-9165140816000 More informationQuantity required : 4 |
|||||||||
|
11 |
1E001282 - SIEGE More informationQuantity required : 1 |
|||||||||
|
12 |
645976 PLATE SEAT DRT More informationQuantity required : 1 |
|||||||||
|
13 |
GASKET OF SIEGE FRONT OEM PIAGGIO PORTER 2020 <-615932 More informationQuantity required : 1 |
|||||||||
|
14 |
1E001283 - SIEGE More informationQuantity required : 1 |
|||||||||
|
15 |
1E001284 SIEGE More informationQuantity required : 1 |
|||||||||
|
16 |
645974 COVER More informationQuantity required : 1 |
|||||||||
|
17 |
GASKET OF SIEGE FRONT OEM PIAGGIO PORTER 2020 <-615932 More informationQuantity required : 1 |
|||||||||
|
18 |
NUT BORGNE (M8) OEM PIAGGIO COMMON A LA RANGE-658842 More informationQuantity required : 8 |
|||||||||
|
19 |
WASHER (8, 15X13, 75X4, 5) OEM PIAGGIO COMMON A LA RANGE-016408 More informationQuantity required : 8 |
|||||||||
|
20 |
566864 HEADREST More informationQuantity required : 2 |
|||||||||
|
21 |
CM288712 SCREW TC More informationQuantity required : 6 |
|||||||||
|
22 |
CHARNIERE SIEGE FRONT OEM PIAGGIO PORTER 2020 <-7137087Z01000 More informationQuantity required : 2 |
|||||||||
|
23 |
SCREW TH (8X16) WITH WASHER OEM PIAGGIO PORTER COMMON A LA RANGE-9165140816000 More informationQuantity required : 4 |
|||||||||
|
24 |
SANGLE SIEGE FRONT OEM PIAGGIO PORTER 2020 < 7197387Z010306 More informationQuantity required : 1 |
|||||||||
|
25 |
9356016014000 - VIS More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/2/6/9/img/110269.jpg)
26 |
GUIDE CABLE OEM PIAGGIO PORTER 2020 <-D9004189019 More informationQuantity required : 1 |
|||||||||
|
28 |
850676 - KIT RAIL DE SIEGE DROIT More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/2/2/9/6/img/122296.jpg)
29 |
KIT RAIL DE SIEGE FRONT LEFT OEM PIAGGIO PORTER 2010 > 2020-850677 More informationQuantity required : 1 |
|||||||||
|
30 |
1R000586 - SEATING GROUP More informationQuantity required : 1 |
|||||||||
