Vehicle Exploded View - PIAGGIO VU PORTER ESSENCE/GPL/MÉTANE STANDARD 1000 Porter Multitech E4 2010 - E5 2013 - E5+ 2014-2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

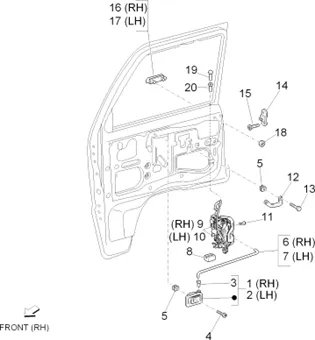

Châssis - parties plastiques - carrosseries : 02.08 COMPOSANTS DES PORTES AVANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1221/Porter_Multitech_E4_2010_-_E5_2013_-_E5_2014-2015_02.08.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/6/4/8/2/img/116482.jpg)
1 |
GRIP DE DOOR INTERIEURE OEM PIAGGIO PORTER-6927087Z01000 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/6/4/8/3/img/116483.jpg)
2 |
GRIP LEFT INTERIEURE OEM PIAGGIO PORTER 1998 > 2020-6928087Z01000 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/2/7/1/3/img/112713.jpg)
3 |
PIVOT DE COMPOSANT DE DOOR FRONT OEM PIAGGIO PORTER 2020 <-6927987Z01000 More informationQuantity required : 1 |
||||||
4 |
D9353055012 SCREW More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/2/6/9/img/110269.jpg)
5 |
GUIDE CABLE OEM PIAGGIO PORTER 2020 <-D9004189019 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/2/1/6/0/img/112160.jpg)
6 |
TIRANT DE DOOR FRONT RIGHT OEM PIAGGIO PORTER 2020 <-6971187Z01000 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/2/1/6/3/img/112163.jpg)
7 |
6971287Z01000 TIRANT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/1/4/3/img/111143.jpg)
8 |
BUFFER DE DOOR OEM PIAGGIO PORTER 2020 <-6975987Z01000 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/7/6/4/8/img/117648.jpg)
9 |
LOCK/MECANISME OF FASTENING DE DOOR FRONT RIGHT OEM PIAGGIO PORTER-B0042833 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/6/9/9/1/img/116991.jpg)
10 |
LOCK/MECANISME OF FASTENING DE DOOR FRONT LEFT OEM PIAGGIO PORTER-B0042843 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/9/8/0/img/109980.jpg)
11 |
SCREW CRUCIFORME FRAISEE (6X15) WITH WASHER OEM PIAGGIO COMMON A LA RANGE-1E003325 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/4/6/1/3/img/134613.jpg)
12 |
GRIP DE DOOR FRONT INTERIEURE OEM PIAGGIO PORTER 2020 <-1E001561 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/4/0/1/img/110401.jpg)
13 |
SCREW AUTOTARAUDEUSE (6. 1X23. 7) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-9354056020000 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/3/0/1/8/img/113018.jpg)
14 |
662510 PLATE More informationQuantity required : 2 |
||||||
|
15 |
1E003424 SCREW More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/7/8/2/4/img/117824_20251023145337.jpg)
16 |
GRIP DE DOOR EXTERIEURE RIGHT OEM PIAGGIO PORTER 2020 <-6921087Z010006 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/7/9/1/7/img/117917.jpg)
17 |
GRIP DE DOOR EXTERIEURE LEFT OEM PIAGGIO PORTER 2020 <-6922087Z010006 More informationQuantity required : 1 |
||||||
|
18 |
261323 NUT More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/4/2/8/img/110428.jpg)
19 |
BUTTON BLOCAGE DE DOOR OEM PIAGGIO PORTER 2020 <-D6974787Z01 More informationQuantity required : 2 |
||||||
|
20 |
D9004480352 GUIDE-CABLE More informationQuantity required : 2 |
