Vehicle Exploded View - PIAGGIO VU PORTER ESSENCE/GPL/MÉTANE STANDARD 1000 Porter Multitech E4 2010 - E5 2013 - E5+ 2014-2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

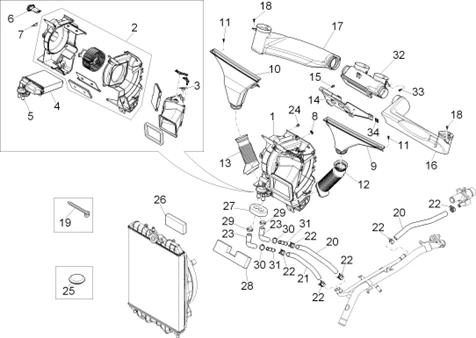

Châssis - parties plastiques - carrosseries : 02.45 SYSTÈME DE CHAUFFAGE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1221/Porter_Multitech_E4_2010_-_E5_2013_-_E5_2014-2015_02.45.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/2/7/9/2/img/122792.jpg)
1 |
CHAUFFAGE COMPLETE OEM PIAGGIO PORTER 2011 > 2020-1E000998 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/3/3/2/7/img/123327.jpg)
2 |
VENTILATEUR COMPLETE DE CHAUFFAGE OEM PIAGGIO PORTER 2011 > 2020-493929 More informationQuantity required : 1 |
||||||
3 |
493933 CLAMP More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/2/0/2/4/img/122024.jpg)
4 |
RADIATOR DE CHAUFFAGE OEM PIAGGIO PORTER-493930 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/0/8/8/8/img/120888.jpg)
5 |
ROBINET/VALVE DE RADIATOR DE CHAUFFAGE OEM PIAGGIO PORTER 2010 > 2020-1E001000 More informationQuantity required : 1 |
||||||
|
6 |
493913 RESISTANCE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/7/1/2/9/img/117129.jpg)
6 |
RESISTOR OF CHAUFFAGE OEM PIAGGIO PORTER 2010 > 2020-B023106 More informationQuantity required : 1 |
||||||
|
7 |
493932 CLAMP More informationQuantity required : 1 |
||||||
|
8 |
9004179138000 - ECROU More informationQuantity required : 4 |
||||||
|
9 |
5509287Z02000 DIFFUSEUR AIR More informationQuantity required : 1 |
||||||
|
10 |
5509187Z02000 DIFFUSEUR AIR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/8/3/4/img/111834.jpg)
11 |
SCREW TORX DE PANEL DE EDGE OEM PIAGGIO PORTER 2020 <-B004853 More informationQuantity required : 4 |
||||||
|
12 |
615100 TUBE More informationQuantity required : 1 |
||||||
|
13 |
8723287Z02000 TUBE More informationQuantity required : 1 |
||||||
|
14 |
612279 CALIPER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/1/4/7/img/151147.JPG)
15 |
SCREW A SIX PANS WITH DOUBLE WASHER M6X16-CM288916 More informationQuantity required : 4 |
||||||
|
16 |
B000513 MANIFOLD A AIR More informationQuantity required : 1 |
||||||
|
17 |
614797 TUBE OIL More informationQuantity required : 1 |
||||||
|
18 |
SCREW TORX DE PANEL DE EDGE OEM PIAGGIO PORTER 2020 <-B004853 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/4/2/img/65742.jpg)
19 |
HOSE CLAMP NYLON TYPE RILSAN 180 MM OEM PIAGGIO COMMON A LA RANGE-145298 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/5/7/1/9/img/115719.jpg)
20 |
HOSE REFOULEMENT OIL OEM PIAGGIO PORTER MULTITECH E4 2010 > 2015-B005263 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/4/0/8/8/img/114088.jpg)
21 |
HOSE WATER OEM PIAGGIO PORTER 2015 <-645553 More informationQuantity required : 1 |
||||||
|
22 |
9004467361000 CLAMP More informationQuantity required : 6 |
||||||
|
23 |
HOSE ENTREE RECHAUFFEUR OIGINE PIAGGIO PORTER 2010 > 2020-1E001016 More informationQuantity required : 2 |
||||||
|
24 |
9004119260000 BOLT More informationQuantity required : 3 |
||||||
|
25 |
B007158 CAP More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/3/3/4/img/111334.jpg)
26 |
GASKET PARTIE SUPERIEURE DE RADIATOR DE CHAUFFAGE OEM PIAGGIO PORTER 2010 > 2020-264646 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/4/0/5/9/img/114059.jpg)
27 |
GASKET VENTILATEUR CHAUFFAGE OEM PIAGGIO PORTER 2010 > 2020-B007132 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/2/9/8/1/img/112981.jpg)
28 |
GASKET OF RADIATOR CHAUFFAGE OEM PIAGGIO PORTER 2010 > 2020-B007147 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/6/8/img/72868.jpg)
29 |
CLAMP HOSE COOLING OU AIR FILTER (25. 6MM) OEM PIAGGIO COMMON A TOUTE LA RANGE-CM001907 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/6/7/img/72867.jpg)
30 |
CLAMP SERRAGE HOSE (22. 6) OEM PIAGGIO COMMON A LA RANGE-CM001905 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/4/1/4/1/img/114141.jpg)
31 |
HOSE SORTIE RECHAUFFEUR OEM PIAGGIO PORTER 2010 > 2020-1E001017 More informationQuantity required : 2 |
||||||
|
32 |
614826 DIFFUSEUR AIR More informationQuantity required : 1 |
||||||
|
33 |
SCREW TORX DE PANEL DE EDGE OEM PIAGGIO PORTER 2020 <-B004853 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
34 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/4/6/0/1/img/134601.jpg)
35 |
GASKET OF ROBINET RADIATOR DE CHAUFFAGE OEM PIAGGIO PORTER 2010 > 2020-1R000314 More informationQuantity required : 1 |
All the exploded views of this vehicle
-
-
