Vehicle Exploded View - PIAGGIO VU PORTER ESSENCE/GPL/MÉTHANE MAXXI 1000 Porter Maxxi Multitech E5 2013
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

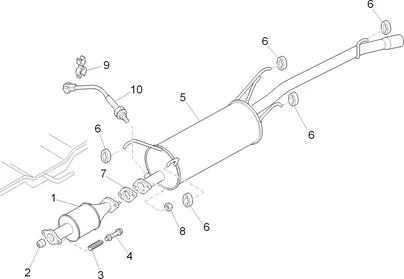

Moteur : 01.37 SILENCIEUX
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/698/Porter_Maxxi_Multitech_E5_2013_01.37.PNG)
1 |
B007438 - CONVERTISSEUR More informationQuantity required : 1 |
||||||
|
1 |
B005158 - CONVERTISSEUR More informationQuantity required : 1 |
||||||
|
1 |
CONVERTISSEUR EXHAUST METHANE OEM PIAGGIO PORTER 2010 > 2015-B007440 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/3/1/9/5/img/113195.jpg)
2 |
GASKET ENTRE CATALYSEUR ET MANIFOLD D'ECHAPPEMENT OEM PIAGGIO PORTER E4-B005202 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/4/3/6/1/img/114361.jpg)
3 |
SPRING EXHAUST OEM PIAGGIO PORTER MULTITECH 2010 > 2020-B007004 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/4/6/3/4/img/114634.jpg)
4 |
BOLT EXHAUST OEM PIAGGIO PORTER-B005203 More informationQuantity required : 2 |
||||||
|
5 |
SILENCER EXHAUST REAR OEM PIAGGIO PORTER MULTITECH MAXXI 2010 > 2020-B005218 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/3/4/1/9/img/113419.jpg)
6 |
RUBBER MOUNT SILENCER EXHAUST OEM PIAGGIO PORTER 2020 <-1756787Z03000 More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/8/4/5/9/img/118459.jpg)
7 |
GASKET EXHAUST OEM PIAGGIO PORTER 1998 > 2020-B005007 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/3/4/9/img/110349.jpg)
8 |
NUT FLANGE SILENCER OEM PIAGGIO PORTER 1998 > 2020-9004179187000 More informationQuantity required : 2 |
||||||
|
9 |
B004960 CLAMP More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/5/1/0/2/img/135102.jpg)
10 |
SONDE LAMBDA PRE-CATALYSEUR OEM PIAGGIO PORTER 2010 > 2020-1D001216 More informationQuantity required : 1 |
||||||
|
10 |
SONDE LAMBDA PRE-CATALYSEUR OEM PIAGGIO PORTER 2010 > 2020-1D001216 More informationQuantity required : 1 |
