Vehicle Exploded View - PIAGGIO VU PORTER ESSENCE/GPL/MÉTHANE MAXXI 1000 Porter Maxxi Multitech E5 2013
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

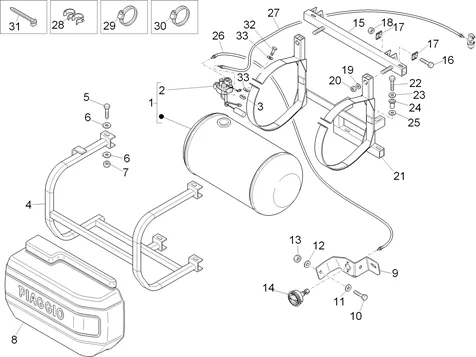

Gpl : 08.01 RÉSERVOIR CARBURANT GPL (PICK)
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/698/Porter_Maxxi_Multitech_E5_2013_08.01.PNG)
1 |
1E001372 RESERVOIRE GAS More informationQuantity required : 1 |
||||||
|
1 |
B005756 RESERVOIRE More informationQuantity required : 1 |
||||||
|
2 |
JAUGE GPL OEM PIAGGIO PORTER MAXXI 2010 > 2020-B005794 More informationQuantity required : 1 |
||||||
|
2 |
661149 JAUGE GAS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/6/5/img/63765.jpg)
3 |
NUT AUTOBLOQUANT/NYLSTOP (M10) OEM PIAGGIO COMMON A LA RANGE-002440 More informationQuantity required : 2 |
||||||
|
4 |
PROTECTOR DE TANK GPL OEM PIAGGIO PORTER GPL MAXXI PICK 2008 > 2020-661142 More informationQuantity required : 1 |
||||||
|
5 |
030079-BOLT S03007900 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/6/4/img/65364.jpg)
6 |
WASHER PLATE (8, 2X20X2, 5) OEM PIAGGIO COMMON A LA RANGE-013861 More informationQuantity required : 8 |
||||||
|
7 |
002418 NUT More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/2/5/0/8/img/122508.jpg)
8 |
PROTECTOR/COVER DE TANK OEM PIAGGIO PORTER MAXXI-661143 More informationQuantity required : 1 |
||||||
|
9 |
661144 BRACKET More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/4/4/img/65644.jpg)
10 |
SCREW TH (8X16) OEM PIAGGIO COMMON A LA RANGE-031116 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/9/img/63779.jpg)
11 |
WASHER PLATE (8, 4X15X1, 5) OEM PIAGGIO COMMON A LA RANGE-003058 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/2/3/img/65423.jpg)
12 |
WASHER PLATE (10, 4X18X2) OEM PIAGGIO COMMON A LA RANGE-016626 More informationQuantity required : 1 |
||||||
|
13 |
002418 NUT More informationQuantity required : 1 |
||||||
|
14 |
B005795 PRISE More informationQuantity required : 1 |
||||||
|
14 |
661150 PRISE More informationQuantity required : 1 |
||||||
|
15 |
661145 TRAVERSE More informationQuantity required : 1 |
||||||
|
16 |
030153 SCREW More informationQuantity required : 2 |
||||||
|
17 |
661159 PLATE More informationQuantity required : 4 |
||||||
|
18 |
661162 NUT More informationQuantity required : 2 |
||||||
|
19 |
WASHER PLATE (10, 4X18X2) OEM PIAGGIO COMMON A LA RANGE-016626 More informationQuantity required : 2 |
||||||
|
20 |
NUT AUTOBLOQUANT/NYLSTOP (M10) OEM PIAGGIO COMMON A LA RANGE-002440 More informationQuantity required : 2 |
||||||
|
21 |
661146 BRACKET More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/5/1/img/65651.jpg)
22 |
SCREW TH (10X30) OEM PIAGGIOCOMMUN A LA RANGE-031157 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/1/3/2/img/111132.jpg)
23 |
WASHER PLATE (10. 5X38X3) OEM PIAGGIO COMMON A LA RANGE-567427 More informationQuantity required : 1 |
||||||
|
24 |
B004248 INSERT More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/2/9/img/71929.jpg)
25 |
WASHER GEAR OIL PUMP (10, 5X16X1) OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI-AP8152220 More informationQuantity required : 3 |
||||||
|
26 |
CM039403 HOSE GAS L: 800 MM More informationQuantity required : 1 |
||||||
|
26 |
661151 HOSE More informationQuantity required : 1 |
||||||
|
27 |
CM039504 HOSE GAS L: 2100 More informationQuantity required : 1 |
||||||
|
27 |
661152 HOSE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/3/0/img/72930.JPG)
28 |
CLIP ARRET DE CABLE/HOSE OEM PIAGGIO-CM017807 More informationQuantity required : 5 |
||||||
|
29 |
661072 CLAMP More informationQuantity required : 1 |
||||||
|
30 |
661073 CLAMP More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/4/2/img/65742.jpg)
31 |
HOSE CLAMP NYLON TYPE RILSAN 180 MM OEM PIAGGIO COMMON A LA RANGE-145298 More informationQuantity required : 34 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/8/2/img/65382.jpg)
32 |
SCREW TH (10X45) OEM PIAGGIO COMMON A TOUTE LA RANGE-015578 More informationQuantity required : 2 |
||||||
|
33 |
WASHER PLATE (10, 4X18X2) OEM PIAGGIO COMMON A LA RANGE-016626 More informationQuantity required : 4 |
