Vehicle Exploded View - PIAGGIO VU PORTER ESSENCE/GPL/MÉTHANE MAXXI 1000 Porter Maxxi Multitech E5 2013
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

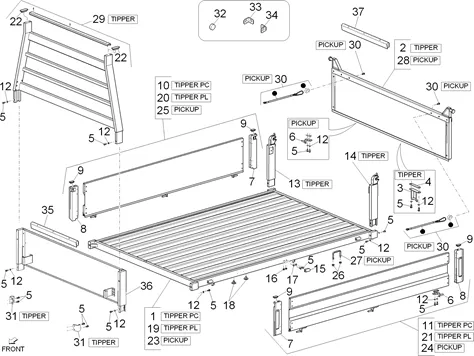

Châssis - parties plastiques - carrosseries : 02.18 BENNE OUVERTE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/698/Porter_Maxxi_Multitech_E5_2013_02.18.PNG)
1 |
B0074525 - PLATE-FORME More informationQuantity required : 1 |
||||||
|
1 |
B000359 - CAISSE OUVERTE More informationQuantity required : 1 |
||||||
|
2 |
B007474 PORTILLON ARR. More informationQuantity required : 1 |
||||||
|
2 |
B000282 RIDELLE AR More informationQuantity required : 1 |
||||||
|
3 |
B007475 CHARNIERE DE EDGE More informationQuantity required : 1 |
||||||
|
3 |
B000273 CHARNIERE BORDE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/4/3/3/4/img/114334.jpg)
4 |
PLATE DE RIDELLE FOR CHARNIERE OEM PIAGGIO PORTER 2010 >-B000224 More informationQuantity required : 2 |
||||||
|
5 |
837233 BOLT More informationQuantity required : 24 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/4/6/img/65646.jpg)
5 |
SCREW TH (8X22) OEM PIAGGIO COMMON A LA RANGE-031119 More informationQuantity required : 4 |
||||||
|
6 |
B000288 CHARNIERE BORDE More informationQuantity required : 10 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/2/1/8/4/img/122184.jpg)
7 |
LATCH DE RIDELLE FRONT LEFT/REAR RIGHT OEM PIAGGIO PORTER MAXXI 2002 > 2020-B000280 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/2/2/1/3/img/122213.jpg)
8 |
LATCH DE RIDELLE FRONT RIGHT/REAR LEFT OEM PIAGGIO PORTER MAXXI 2002 > 2020-B000281 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/2/7/3/9/img/112739.jpg)
9 |
CAP RIDELLE OEM PORTER CARGO-B000313 More informationQuantity required : 4 |
||||||
|
10 |
B000212 EDGE LATERAL More informationQuantity required : 1 |
||||||
|
11 |
B000604 EDGE LATERAL GAU. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/1/0/7/img/69107.jpg)
12 |
WASHER (8, 2X16X2, 2) OEM PIAGGIO COMMON A TOUTE LA RANGE-834187 More informationQuantity required : 20 |
||||||
|
13 |
B000296 MONTANT ARR. RIGHT More informationQuantity required : 1 |
||||||
|
14 |
B000275 MONTANT ARR. GAU. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/4/3/9/3/img/114393.jpg)
15 |
CHARNIERE DE EDGE OEM PIAGGIO PORTER MAXXI 2002 > 2020, NP6 2021 >-B000289 More informationQuantity required : 10 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/5/5/img/65455.jpg)
16 |
NUT (M8) OEM PIAGGIO COMMON A TOUTE LA RANGE-020008 More informationQuantity required : 40 |
||||||
|
17 |
WASHER (8, 2X16X2, 2) OEM PIAGGIO COMMON A TOUTE LA RANGE-834187 More informationQuantity required : 40 |
||||||
|
18 |
B000225 BUFFER SPRING ARR. More informationQuantity required : 2 |
||||||
|
19 |
B0074795 - PLATE-FORME More informationQuantity required : 1 |
||||||
|
20 |
B000278 EDGE LATERAL More informationQuantity required : 1 |
||||||
|
21 |
B000605 - BORD LATERAL GAU. More informationQuantity required : 1 |
||||||
|
22 |
B000314 CAP More informationQuantity required : 2 |
||||||
|
23 |
B0074805 PLATE-FORME More informationQuantity required : 1 |
||||||
|
23 |
B000357 - CAISSE OUVERTE More informationQuantity required : 1 |
||||||
|
24 |
B000306 EDGE LATERAL More informationQuantity required : 1 |
||||||
|
25 |
B000223 EDGE LATERAL More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/9/2/5/img/70925.jpg)
26 |
NUT FLANGE (8X1. 25) OEM PIAGGIO COMMON A LA RANGE-967363 More informationQuantity required : 8 |
||||||
|
27 |
B000303 PONTET More informationQuantity required : 4 |
||||||
|
28 |
B000307 EDGE More informationQuantity required : 1 |
||||||
|
29 |
1E000541 ROLL BAR More informationQuantity required : 1 |
||||||
|
30 |
B000317 TIRANT More informationQuantity required : 2 |
||||||
|
31 |
B000213 GANCIO More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/2/0/9/img/110209.jpg)
32 |
CAP/COVER OEM PIAGGIO PORTER 2020 <-D9004874004 More informationQuantity required : 8 |
||||||
|
33 |
6633187Z01000 BUFFER More informationQuantity required : 1 |
||||||
|
34 |
6633287Z01000 BUFFER More informationQuantity required : 1 |
||||||
|
35 |
CM037601 PROTECTOR More informationQuantity required : 1 |
||||||
|
36 |
B023352 RIDELLE AR More informationQuantity required : 1 |
||||||
|
37 |
CM037602 PROTECTOR More informationQuantity required : 1 |
||||||
|
38 |
SPRING LEVER BENNE OEM PIAGGIO PORTER TIPPER 2010 > 2020-B007502 More informationQuantity required : 1 |
||||||
|
38 |
B004912 SPRING More informationQuantity required : 1 |
