Vehicle Exploded View - PIAGGIO VU PORTER ESSENCE/GPL/MÉTHANE MAXXI 1000 Porter Maxxi Multitech E5 2013
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

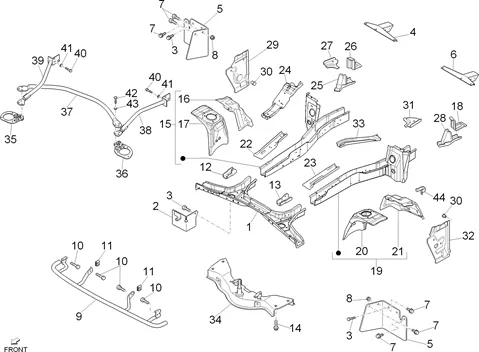

Châssis - parties plastiques - carrosseries : 02.02 CHÂSSIS/CAISSE AVANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/698/Porter_Maxxi_Multitech_E5_2013_02.02.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/3/9/7/6/img/123976.jpg)
1 |
FRONT CROSS MEMBER "PIAGGIO GENUINE PART" PORTER -1E0000185 More informationQuantity required : 1 |
|||||||||
2 |
7661987Z02000 GUARD-MUD More informationQuantity required : 1 |
|||||||||
|
3 |
VIS |
|||||||||
|
4 |
B0000805 LONG CONNECTION BAR DOME/FRAME RH More informationQuantity required : 1 |
|||||||||
|
5 |
7662187Z010006 GUARD-MUD More informationQuantity required : 2 |
|||||||||
|
6 |
B0000015 LONG CONNECTION BAR DOME/FRAME LH More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/2/6/3/img/151263.jpg)
7 |
SCREW TH (6X15) WITH WASHER OEM PIAGGIO COMMON A LA RANGE-CM288112 More informationQuantity required : 6 |
|||||||||
|
8 |
D9004179081 NUT More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/0/8/1/6/img/120816.jpg)
9 |
BARRE PROTECTRICE DE RADIATOR OEM PIAGGIO PORTER 1998 < 2020-5290787Z03000 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/1/2/1/img/110121.jpg)
10 |
D9165140820 - BOULON More informationQuantity required : 6 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/9/9/7/img/110997.jpg)
11 |
NUT SHEET METAL (D8) OEM PIAGGIO COMMON A LA RANGE-D9004181008 More informationQuantity required : 2 |
|||||||||
|
12 |
5713387Z01000 PROTECTOR More informationQuantity required : 1 |
|||||||||
|
13 |
D5713487Z01 PROTECTOR More informationQuantity required : 1 |
|||||||||
|
14 |
661064 BOLT More informationQuantity required : 4 |
|||||||||
|
15 |
B0047455 COVER WHEEL DRT More informationQuantity required : 1 |
|||||||||
|
16 |
PROTECTION |
|||||||||
|
17 |
B0053295 - SUPPORT SUSP. DRT. More informationQuantity required : 1 |
|||||||||
|
18 |
PLAQUE |
|||||||||
|
19 |
B0053475 COVER WHEEL GAU More informationQuantity required : 1 |
|||||||||
|
20 |
B0053285 - SUPPORT SUSP. More informationQuantity required : 1 |
|||||||||
|
21 |
B0056325 PROTECTOR GAU. More informationQuantity required : 1 |
|||||||||
|
22 |
B0060535 LOCK TRAVERSE AV. DRT. More informationQuantity required : 1 |
|||||||||
|
23 |
B0233195 PLATE More informationQuantity required : 1 |
|||||||||
|
24 |
B005630 PLATE More informationQuantity required : 1 |
|||||||||
|
25 |
5170387Z02000 BRACKET More informationQuantity required : 1 |
|||||||||
|
26 |
PLAQUE |
|||||||||
|
27 |
D5822387Z025 PROTECTOR More informationQuantity required : 1 |
|||||||||
|
28 |
5170487Z01000 - SUPPORT More informationQuantity required : 1 |
|||||||||
|
29 |
B0070125 MONTANT DRT. More informationQuantity required : 1 |
|||||||||
|
30 |
9004874013000 CAP More informationQuantity required : 4 |
|||||||||
|
31 |
D5822487Z02 PROTECTOR More informationQuantity required : 1 |
|||||||||
|
32 |
5820487Z01000 MONTANT More informationQuantity required : 1 |
|||||||||
|
33 |
D5711687Z03 PLATE More informationQuantity required : 1 |
|||||||||
|
34 |
B007023 - TRAVERSE More informationQuantity required : 1 |
|||||||||
|
35 |
B000044 PLATE RIGHT More informationQuantity required : 1 |
|||||||||
|
36 |
B000045 PLATE LEFT More informationQuantity required : 1 |
|||||||||
|
37 |
B000047 BARRA DI TORSIONE More informationQuantity required : 1 |
|||||||||
|
38 |
B000050 LONG CONNECTION BAR DOME/FRAME RH More informationQuantity required : 1 |
|||||||||
|
39 |
B000051 LONG CONNECTION BAR DOME/FRAME LH More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/4/1/img/65641.jpg)
40 |
SCREW TH (6X20) OEM PIAGGIO COMMON A LA RANGE-031090 More informationQuantity required : 6 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/0/1/img/66501.jpg)
41 |
WASHER SPRING (6. 4X20X2) OEM PIAGGIO COMMON A LA RANGE-436695 More informationQuantity required : 6 |
|||||||||
|
42 |
ARAND.PLANA MECANIZ. D12 DIN125 ZnB |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/1/0/7/img/69107.jpg)
43 |
WASHER (8, 2X16X2, 2) OEM PIAGGIO COMMON A TOUTE LA RANGE-834187 More informationQuantity required : 6 |
|||||||||
|
44 |
5811787Z01000 BRACKET More informationQuantity required : 1 |
|||||||||
