Vehicle Exploded View - PIAGGIO VU PORTER ESSENCE/GPL/MÉTHANE MAXXI 1000 Porter Maxxi Multitech E5 2013
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

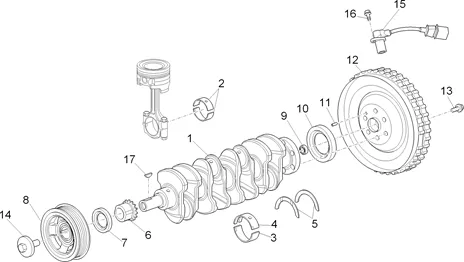

Moteur : 01.04 VILEBREQUIN
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/698/Porter_Maxxi_Multitech_E5_2013_01.04.PNG)
1 |
B010039 VILLEBREQUIN More informationQuantity required : 1 |
||||||
|
2 |
B010846 COUSSINET More informationQuantity required : 8 |
||||||
|
2 |
B010845 COUSSINET More informationQuantity required : 8 |
||||||
|
2 |
B010844 COUSSINET More informationQuantity required : 8 |
||||||
|
2 |
B010843 COUSSINET More informationQuantity required : 8 |
||||||
|
2 |
B010842 COUSSINET More informationQuantity required : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/8/0/7/img/111807.jpg)
2 |
HALF COUSSINET DE BIELLE OEM PIAGGIO PORTER MULTITECH 2010 >-B010841 More informationQuantity required : 8 |
||||||
|
3 |
B010808 BANK OF PAROI MOITIE More informationQuantity required : 5 |
||||||
|
3 |
B010807 BANK OF PAROI MOITIE More informationQuantity required : 5 |
||||||
|
3 |
B010806 BANK OF PAROI MOITIE More informationQuantity required : 5 |
||||||
|
3 |
B010805 BANK OF PAROI MOITIE More informationQuantity required : 5 |
||||||
|
3 |
B010804 BANK OF PAROI MOITIE More informationQuantity required : 5 |
||||||
|
3 |
B010803 BANK OF PAROI MOITIE More informationQuantity required : 5 |
||||||
|
4 |
B010814 BANK OF PAROI MOITIE More informationQuantity required : 5 |
||||||
|
4 |
B010813 BANK OF PAROI MOITIE More informationQuantity required : 5 |
||||||
|
4 |
B010812 BANK OF PAROI MOITIE More informationQuantity required : 5 |
||||||
|
4 |
B010811 BANK OF PAROI MOITIE More informationQuantity required : 5 |
||||||
|
4 |
B010810 BANK OF PAROI MOITIE More informationQuantity required : 5 |
||||||
|
4 |
B010809 BANK OF PAROI MOITIE More informationQuantity required : 5 |
||||||
|
5 |
B010840 WASHER VILEBREQUIN More informationQuantity required : 2 |
||||||
|
5 |
B010839 WASHER VILEBREQUIN More informationQuantity required : 2 |
||||||
|
5 |
B010838 WASHER VILEBREQUIN More informationQuantity required : 2 |
||||||
|
5 |
B010837 - RONDELLE VILEBREQUIN More informationQuantity required : 2 |
||||||
|
5 |
B010836 - RONDELLE VILEBREQUIN More informationQuantity required : 2 |
||||||
|
6 |
B010048 GEAR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/3/4/8/8/img/113488.jpg)
7 |
OIL SEAL (35X47X6) VILEBREQUIN COTE TIMING OEM PIAGGIO PORTER 2010 > E4-B0100047 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/0/5/5/0/img/120550.jpg)
8 |
PULLEY DAMPER OEM PIAGGIO PORTER E4 2010 > 2015-B010046 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/3/7/7/4/img/113774.jpg)
9 |
BEARING "PIAGGIO GENUINE PART"(10X26X8) PIAGGIO PORTER E4 2010> -B010137 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/5/3/6/1/img/115361.jpg)
10 |
GASKET VILLEBREQUIN COTE VOLANT ENGINE PIAGGIO PORTER 2010 > 2015-B010049 More informationQuantity required : 1 |
||||||
|
11 |
SPINDLE/GOUPILLE VOLANT ENGINE OEM PIAGGIO PORTER 2010 > 2015-B010040 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/0/1/7/0/img/120170.jpg)
12 |
VOLANT ENGINE OEM PIAGGIO PORTER MULTITECH 2010 >-1F000017 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/6/5/3/img/111653.jpg)
13 |
SCREW MOUNTING VOLANT ENGINE OEM PIAGGIO PORTER-B010139 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/2/6/3/2/img/112632.jpg)
14 |
SCREW SPECIALE BOUT VILEBREQUIN OEM PIAGGIO PORTER MULTITECH E4-E5 2010 > 2015-B010045 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/7/2/6/9/img/117269.jpg)
15 |
SENSOR IGNITION/PHASE OEM PIAGGIO PORTER E4-E5 2010 > 2015-B010050 More informationQuantity required : 1 |
||||||
|
16 |
B010051 BOLT More informationQuantity required : 1 |
||||||
|
17 |
B010041 CLAVETTE More informationQuantity required : 1 |
