Vehicle Exploded View - PIAGGIO VU PORTER ESSENCE/GPL/MÉTHANE MAXXI 1000 Porter Maxxi Multitech E5 2013
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

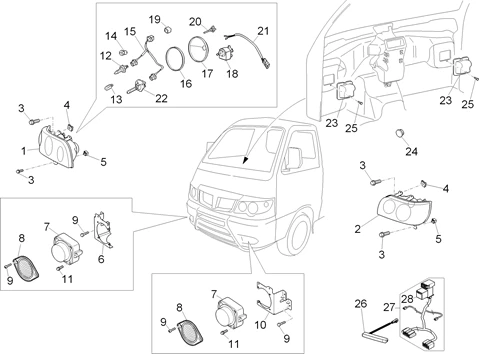

Installation électrique : 06.02 ECLAIRAGES AVANT - CLIGNOTANTS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/698/Porter_Maxxi_Multitech_E5_2013_06.02.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/1/5/8/5/img/121585.jpg)
1 |
LAMP UNIT/HEADLAMP/HEADLAMP FRONT RIGHT OEM PIAGGIO PORTER 2009 > 2020-1D002385 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/1/5/8/0/img/121580.jpg)
2 |
LAMP UNIT/HEADLAMP/HEADLAMP FRONT LEFT OEM PIAGGIO PORTER 2009 > 2020-1D002386 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/5/4/6/img/110546.jpg)
3 |
SCREW CRUCIFORME (5X13) OEM PIAGGIO COMMON A LA RANGE-CM288614 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/9/8/img/65998.jpg)
4 |
NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-248419 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/6/2/6/img/111626.jpg)
5 |
BRACKET/AGRAFE MOUNTING HEADLAMP OEM PIAGGIO PORTER STD/MAXXI 2011 > 2018-566260 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/6/7/4/0/img/116740.jpg)
6 |
MOUNTING RIGHT ANTIBROUILLARD OEM PIAGGIO PORTER 2010 > 2020-B000937 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/2/9/1/6/img/122916.jpg)
7 |
ANTIBROUILLARD FRONT OEM PIAGGIO PORTER 2020 <-6518866 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/5/8/4/img/111584.jpg)
8 |
GRILLE PROTECTOR LAMP ANTI BROUILLARD OEM PIAGGIO PORTER 1992 > 2020-566568 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/8/3/4/img/111834.jpg)
9 |
SCREW TORX DE PANEL DE EDGE OEM PIAGGIO PORTER 2020 <-B004853 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/6/7/2/5/img/116725.jpg)
10 |
MOUNTING LEFT ANTIBROUILLARD OEM PIAGGIO PORTER 2010 > 2020-B000843 More informationQuantity required : 1 |
||||||
11 |
D9331515010 SCREW More informationQuantity required : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/7/2/img/66272.jpg)
12 |
AMPOULE/LAMPE 12V 55W H7 OEM PIAGGIO COMMON A LA RANGE-294353 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/4/0/8/img/139408.jpg)
13 |
AMPOULE/LAMPE 12V 5W WEDGE T10 BLANCHE OEM PIAGGIO COMMON A LA RANGE-2920225 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/3/3/6/9/img/113369.jpg)
14 |
AMPOULE/LAMPE 12V 21W BA15S ORANGE OEM PIAGGIO COMMON A LA RANGE-584004 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/6/3/1/8/img/116318.jpg)
15 |
CONNECTEUR DE HEADLAMP OEM PIAGGIO PORTER 2010 > 2020-B004809 More informationQuantity required : 2 |
||||||
|
16 |
B004810 GASKET More informationQuantity required : 2 |
||||||
|
17 |
B004811 CAP More informationQuantity required : 2 |
||||||
|
18 |
ENGINE DE REGLAGE HEADLAMP OEM PIAGGIO PORTER 2009 > 2020-B004730 More informationQuantity required : 2 |
||||||
|
19 |
B004807 CAP More informationQuantity required : 2 |
||||||
|
20 |
SCREW OF REGLAGE HEADLAMP OEM PIAGGIO PORTER 2009 > 2020-B004806 More informationQuantity required : 2 |
||||||
|
21 |
B004808 CABLES More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/7/1/img/67171.jpg)
22 |
AMPOULE/LAMPE 12V 55W H1 OEM PIAGGIO COMMON A LA RANGE-580141 More informationQuantity required : 2 |
||||||
|
23 |
B000979 COVER HEADLAMP More informationQuantity required : 2 |
||||||
|
24 |
9004871138000 CAP More informationQuantity required : 2 |
||||||
|
25 |
SCREW CRUCIFORME (5X13) OEM PIAGGIO COMMON A LA RANGE-CM288614 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/2/2/2/6/img/122226.jpg)
26 |
LAMP DIURNE DE PROTECTOR-CHOC FRONT OEM PIAGGIO PORTER 2010 > 2020-1D000776 More informationQuantity required : 2 |
||||||
|
27 |
1D000790 FAISC. CABLES More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/4/0/6/img/139406.jpg)
28 |
RELAIS 12V 30A WITH RESISTANCE OEM PIAGGIO 125-350-500 MP3, X10, 125-250-300 VESPA GTS, PORTER/APRILIA 1000 RSV-2, TUONO V2, FALCO, CAPONORD-1D001636 More informationQuantity required : 1 |
