Vehicle Exploded View - PIAGGIO VU PORTER DIESEL MAXXI STANDARD 1000 Porter Maxxi D120 E5 2010-2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

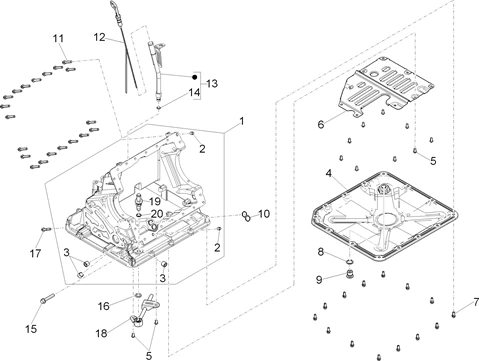

Moteur : 01.40 COUPE HUILE MOTEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/696/Porter_Maxxi_D120_E5_2010-2015_01.40.PNG)
1 |
B012092 - COUPELLE A HUILE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/5/6/img/66356.jpg)
2 |
BUSH SPACER DE CENTRAGE (8X10) OEM PIAGGIO COMMON A LA RANGE-411209 More informationQuantity required : 2 |
||||||
|
3 |
831135 CAP More informationQuantity required : 3 |
||||||
|
4 |
B010941 - CARTER HUILE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/3/5/img/66135.jpg)
5 |
SCREW BTR HEAD BOMBEE (6X12) OEM PIAGGIO COMMON A LA RANGE-274369 More informationQuantity required : 11 |
||||||
|
6 |
B011010 PLATE OIL More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/4/2/9/img/70429.jpg)
7 |
SCREW TH FLANGE (6X14) OEM PIAGGIO COMMON A LA RANGE-872425 More informationQuantity required : 14 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/3/7/8/4/img/113784.jpg)
8 |
GASKET CAP VIDANGE OIL OEM PIAGGIO PORTER DIESEL 2010 > 2015-B011016 More informationQuantity required : 1 |
||||||
|
9 |
CAP VIDANGE OIL OEM PIAGGIO PORTER DIESEL 2010 > 2015-B010943 More informationQuantity required : 1 |
||||||
|
10 |
B010357 GASKET More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/4/7/img/65447.jpg)
11 |
SCREW FLANGE TH (6X20) OEM PIAGGIO COMMON A LA RANGE-018639 More informationQuantity required : 20 |
||||||
|
12 |
1F000078 JAUGE NIVEAU More informationQuantity required : 1 |
||||||
|
13 |
B010350 TUBE D'HUILE More informationQuantity required : 1 |
||||||
|
14 |
882484 GASKET More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/0/6/img/72706.jpg)
15 |
SCREW FLANGE TH (6X14) OEM PIAGGIO COMMON A LA RANGE-B016426 More informationQuantity required : 1 |
||||||
|
16 |
169569 O-RING More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/6/9/img/72769.jpg)
17 |
SCREW FLANGE TH (6X45) OEM PIAGGIO COMMON A LA RANGE-B017632 More informationQuantity required : 1 |
||||||
|
18 |
B010916 D'ECHAPPEMENT SEPARATEUR D'HUILE More informationQuantity required : 1 |
||||||
|
19 |
B011258 VOLET More informationQuantity required : 1 |
||||||
|
20 |
B011408 WASHER More informationQuantity required : 1 |
