Vehicle Exploded View - PIAGGIO VU PORTER DIESEL MAXXI STANDARD 1000 Porter Maxxi D120 E5 2010-2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

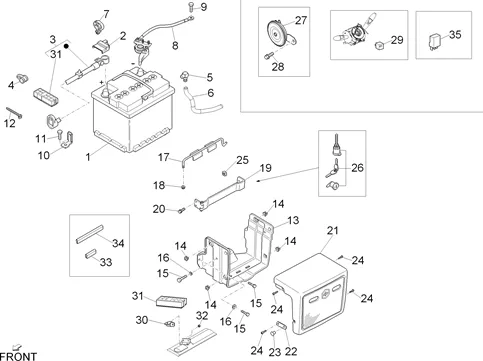

Installation électrique : 06.04 RELAIS - BATTERIE - AVERTISSEUR SONORE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/696/Porter_Maxxi_D120_E5_2010-2015_06.04.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/3/1/8/1/img/123181.jpg)
1 |
BATTERY 12V 55AH OEM PIAGGIO PORTER 2009 > 2020-600699M More informationQuantity required : 1 |
||||||
2 |
B023058 COVER BATTERY More informationQuantity required : 1 |
||||||
|
3 |
B004875 WIRING HARNESS More informationQuantity required : 1 |
||||||
|
4 |
644286 CLAMP More informationQuantity required : 1 |
||||||
|
5 |
B005943 HOSE DE PURGE BATTERY More informationQuantity required : 1 |
||||||
|
6 |
645581 HOSE CARBU More informationQuantity required : 1 |
||||||
|
7 |
D9004464482 CLAMP More informationQuantity required : 2 |
||||||
|
8 |
8212387Z01000 FAISC. CABLES More informationQuantity required : 1 |
||||||
|
9 |
9004119556000 BOLT More informationQuantity required : 2 |
||||||
|
10 |
8271587Z31000 BRACKET BATTERY More informationQuantity required : 1 |
||||||
|
11 |
D9161261020 SCREW More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/1/7/img/66017.jpg)
12 |
HOSE CLAMP NYLON TYPE RILSAN 4, 8X270MM OEM PIAGGIO COMMON A LA RANGE-257134 More informationQuantity required : 1 |
||||||
|
13 |
B0259505 DOOR BATT. More informationQuantity required : 1 |
||||||
|
13 |
B0259505 DOOR BATT. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/4/6/0/img/111460.jpg)
14 |
CLIPS OEM PIAGGIO PORTER 2020 <-004189001000 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/1/9/8/img/151198.jpg)
15 |
BOLT TH (6X14) WITH WASHER OEM PIAGGIO COMMON A LA RANGE-CM287314 More informationQuantity required : 4 |
||||||
|
16 |
9004208030000 WASHER More informationQuantity required : 2 |
||||||
|
17 |
263403 CLAMP More informationQuantity required : 1 |
||||||
|
18 |
261317 NUT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/6/9/0/4/img/116904.jpg)
19 |
263400 - SERRURE More informationQuantity required : 1 |
||||||
|
20 |
9004159377000 SCREW More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/7/6/2/4/img/117624.jpg)
21 |
COVER DE BATTERY OEM PIAGGIO PORTER 2009 > 2020-262836 More informationQuantity required : 1 |
||||||
|
22 |
263740 CALIPER More informationQuantity required : 2 |
||||||
|
23 |
263750 CLAMP More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/2/0/9/5/img/112095.jpg)
24 |
SCREW PARKER (5X22) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-9356055012000 More informationQuantity required : 4 |
||||||
|
25 |
D4815587Z01 NUT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/1/9/1/3/img/121913.jpg)
26 |
GROUP LOCK UNDERSEAT COMPARTMENT WHEEL DE SECOURS OEM PIAGGIO PORTER-566819 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/5/2/4/2/img/115242.jpg)
27 |
AVERTISSEUR OEM PIAGGIO PORTER, CARGO-660522 More informationQuantity required : 1 |
||||||
|
28 |
D9161140814 BOLT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/8/0/1/6/img/118016.jpg)
29 |
RELAIS DE INDICATOR OEM PIAGGIO PORTER 2010 > 2020-493997 More informationQuantity required : 1 |
||||||
|
30 |
B004583 BRACKET INTERRUPTEUR More informationQuantity required : 1 |
||||||
|
31 |
BOX A FUSIBLES OEM PIAGGIO PORTER VAN 2010 > 2015-B006175 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/8/3/1/img/109831.jpg)
32 |
NUT AUTOBLOQUANT/NYLSTOP (M4) OEM PIAGGIO COMMON A LA RANGE-620356 More informationQuantity required : 2 |
||||||
|
33 |
CM022202 GASKET More informationQuantity required : 1 |
||||||
|
34 |
PROTECTION |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/7/1/6/7/img/117167.jpg)
35 |
RELAIS DE VENTILATEUR ENGINE (12V30A) OEM PIAGGIO PORTER-B007353 More informationQuantity required : 1 |
