Vehicle Exploded View - PIAGGIO VU PORTER DIESEL MAXXI STANDARD 1000 Porter Maxxi D120 E5 2010-2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

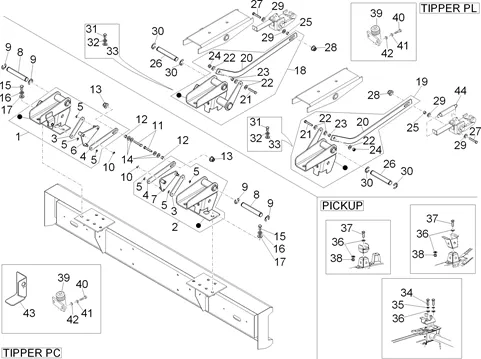

Châssis - parties plastiques - carrosseries : 02.20 COMPOSANTS DE LA BENNE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/696/Porter_Maxxi_D120_E5_2010-2015_02.20.PNG)
1 |
B005708 CHARNIERE RIGHT More informationQuantity required : 1 |
||||||
|
1 |
B007478 CHARNIERE DE EDGE DRT. More informationQuantity required : 1 |
||||||
|
2 |
B005707 CHARNIERE LEFT More informationQuantity required : 1 |
||||||
|
2 |
B007477 - CHARNIERE DE BORD GAU. More informationQuantity required : 1 |
||||||
|
3 |
B000339 LEVER PORTER More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/7/0/4/8/img/117048.jpg)
4 |
LEVER EXTERIEUR DE CHARNIERE DE BENNE OEM PIAGGIO PORTER-B000340 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/7/6/3/img/109763.jpg)
5 |
CLIPS/CIRCLIPS WINDSCREEN OEM MOTO GUZZI V100/ARTICULATION DE RIDELLE OEM PIAGGIO PORTER 2020 <-620970 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/9/9/9/4/img/119994.jpg)
6 |
LEVER OUVERTURE DE RIDELLE REAR OEM PIAGGIO PORTER 2010 > 2020 More informationQuantity required : 1 |
||||||
|
7 |
B000341 LEVER GAU. More informationQuantity required : 2 |
||||||
|
8 |
B000315 PIVOT More informationQuantity required : 2 |
||||||
|
9 |
B000608 CIRCLIPS More informationQuantity required : 4 |
||||||
|
10 |
CLIPS/CIRCLIPS WINDSCREEN OEM MOTO GUZZI V100/ARTICULATION DE RIDELLE OEM PIAGGIO PORTER 2020 <-620970 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/1/2/img/65612.jpg)
11 |
SCREW TH (8X35) OEM PIAGGIO COMMON A LA RANGE-030072 More informationQuantity required : 2 |
||||||
|
12 |
B000227 SPACER More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/9/2/5/img/70925.jpg)
13 |
NUT FLANGE (8X1. 25) OEM PIAGGIO COMMON A LA RANGE-967363 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/6/4/img/63764.jpg)
14 |
WASHER PLATE (8. 5X20X2) OEM PIAGGIO COMMON A LA RANGE-002383 More informationQuantity required : 4 |
||||||
|
15 |
B004264 BOLT More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/8/9/img/65789.jpg)
16 |
WASHER PLATE (10. 3X22X2. 5) OEM PIAGGIO COMMON A LA RANGE-178790 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/9/img/65419.jpg)
17 |
WASHER GROWER (10. 6X17. 6X5) OEM PIAGGIO COMMON A LA RANGE-016410 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/1/0/2/3/img/121023.jpg)
18 |
CHARNIERE DE RIDELLE RIGHT PLATEAU BASCULANT LONG OEM PIAGGIO PORTER MAXI 2020 <-B000219 More informationQuantity required : 1 |
||||||
|
18 |
B007496 CHARNIERE RIGHT More informationQuantity required : 1 |
||||||
|
19 |
CHARNIERE DE RIDELLE LEFT OEM PIAGGIO PORTER MAXI-B000241 More informationQuantity required : 1 |
||||||
|
19 |
B007497 CHARNIERE LEFT More informationQuantity required : 1 |
||||||
|
20 |
B000252 LEVER More informationQuantity required : 2 |
||||||
|
20 |
B007493 LEVER More informationQuantity required : 2 |
||||||
|
21 |
SCREW TH (8X35) OEM PIAGGIO COMMON A LA RANGE-030072 More informationQuantity required : 2 |
||||||
|
21 |
030074-BOLT S03007400 More informationQuantity required : 2 |
||||||
|
22 |
WASHER PLATE (8. 5X20X2) OEM PIAGGIO COMMON A LA RANGE-002383 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/9/img/63779.jpg)
22 |
WASHER PLATE (8, 4X15X1, 5) OEM PIAGGIO COMMON A LA RANGE-003058 More informationQuantity required : 6 |
||||||
|
23 |
B000227 SPACER More informationQuantity required : 2 |
||||||
|
24 |
709052 NUT More informationQuantity required : 2 |
||||||
|
25 |
B000227 SPACER More informationQuantity required : 2 |
||||||
|
26 |
B000315 PIVOT More informationQuantity required : 2 |
||||||
|
27 |
SCREW TH (8X35) OEM PIAGGIO COMMON A LA RANGE-030072 More informationQuantity required : 2 |
||||||
|
28 |
NUT FLANGE (8X1. 25) OEM PIAGGIO COMMON A LA RANGE-967363 More informationQuantity required : 2 |
||||||
|
29 |
WASHER PLATE (8. 5X20X2) OEM PIAGGIO COMMON A LA RANGE-002383 More informationQuantity required : 4 |
||||||
|
30 |
B000608 CIRCLIPS More informationQuantity required : 4 |
||||||
|
31 |
B004264 BOLT More informationQuantity required : 6 |
||||||
|
32 |
WASHER PLATE (10. 3X22X2. 5) OEM PIAGGIO COMMON A LA RANGE-178790 More informationQuantity required : 6 |
||||||
|
33 |
WASHER GROWER (10. 6X17. 6X5) OEM PIAGGIO COMMON A LA RANGE-016410 More informationQuantity required : 6 |
||||||
|
34 |
B004264 BOLT More informationQuantity required : 4 |
||||||
|
35 |
WASHER GROWER (10. 6X17. 6X5) OEM PIAGGIO COMMON A LA RANGE-016410 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/2/3/img/65423.jpg)
36 |
WASHER PLATE (10, 4X18X2) OEM PIAGGIO COMMON A LA RANGE-016626 More informationQuantity required : 2 |
||||||
|
37 |
264886 - BOULON More informationQuantity required : 2 |
||||||
|
38 |
967356-NUT More informationQuantity required : 2 |
||||||
|
39 |
B000182 INTERRUPTEUR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/3/9/img/65439.jpg)
40 |
SCREW CRUCIFORME (4X20) OEM PIAGGIO COMMON A LA RANGE-018544 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/6/0/img/65360.jpg)
41 |
WASHER PLATE (4X12) OEM PIAGGIO COMMON A LA RANGE-013763 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/4/img/65414.jpg)
42 |
WASHER (4, 2X7, 6X0, 9) OEM PIAGGIO COMMON A LA RANGE-016404 More informationQuantity required : 1 |
||||||
|
43 |
B004937 COVER More informationQuantity required : 1 |
||||||
|
44 |
B004912 SPRING More informationQuantity required : 1 |
||||||
|
44 |
SPRING LEVER BENNE OEM PIAGGIO PORTER TIPPER 2010 > 2020-B007502 More informationQuantity required : 1 |
