Vehicle Exploded View - PIAGGIO VU PORTER DIESEL MAXXI STANDARD 1000 Porter Maxxi D120 E5 2010-2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

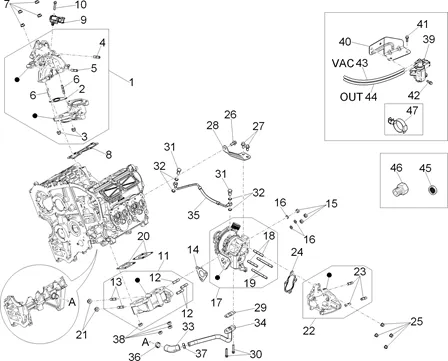

Moteur : 01.33 RACCORDS D'ADMISSION ET D'ÉCHAPPEMENT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/696/Porter_Maxxi_D120_E5_2010-2015_01.33.PNG)
1 |
B010720 MANIFOLD More informationQuantity required : 1 |
||||||
|
2 |
B010734 GASKET More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/8/7/img/66187.jpg)
3 |
NUT (M6) EXHAUST OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC-288245 More informationQuantity required : 2 |
||||||
|
4 |
003972-SCREW WITHOUT T? TE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/6/5/img/66665.jpg)
5 |
STUD (8X40) OEM PIAGGIO COMMON A LA RANGE-4847066 More informationQuantity required : 1 |
||||||
|
6 |
B010699 STUD More informationQuantity required : 2 |
||||||
|
7 |
434078 - ECROU More informationQuantity required : 4 |
||||||
|
8 |
889158 GASKET More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/0/6/6/2/img/120662.jpg)
9 |
SENSOR FOR PRESSURE AND TEMPERATURE "PIAGGIO GENUINE PART" PORTER DIESEL -889463 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/4/7/img/65447.jpg)
10 |
SCREW FLANGE TH (6X20) OEM PIAGGIO COMMON A LA RANGE-018639 More informationQuantity required : 1 |
||||||
|
11 |
B0113504 - COLLECTEUR ECHAPP. More informationQuantity required : 1 |
||||||
|
12 |
B011250 STUD More informationQuantity required : 3 |
||||||
|
13 |
B010773 STUD More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/8/1/6/img/111816.jpg)
14 |
GASKET TURBINE A MANIFOLD OEM PIAGGIO PORTER DIESEL 2010 > 2015-B011033 More informationQuantity required : 1 |
||||||
|
15 |
B010563 NUT More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/8/1/img/69481.jpg)
16 |
WASHER PLATE (14. 1X18. 2X1) OEM PIAGGIO COMMON A LA RANGE-847183 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/2/2/4/img/151224.jpg)
17 |
TURBO/TURBINE OEM PIAGGIO PORTER DIESEL 2010 > 2015-SPB011386 More informationQuantity required : 1 |
||||||
|
18 |
889895 STUD More informationQuantity required : 2 |
||||||
|
19 |
889896 STUD More informationQuantity required : 2 |
||||||
|
20 |
889820 GASKET More informationQuantity required : 2 |
||||||
|
21 |
434078 - ECROU More informationQuantity required : 2 |
||||||
|
22 |
B004420 MANIFOLD ECHAPP. More informationQuantity required : 1 |
||||||
|
23 |
000456-STUD More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/2/4/1/8/img/112418.jpg)
24 |
GASKET PUMP A VIDE OEM PIAGGIO PORTER DIESEL 2010 > 2015-660559 More informationQuantity required : 1 |
||||||
|
25 |
615769 - ECROU More informationQuantity required : 4 |
||||||
|
26 |
889637 SCREW More informationQuantity required : 1 |
||||||
|
27 |
B010725 SCREW More informationQuantity required : 2 |
||||||
|
28 |
889710 BRACKET More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/8/0/0/img/111800.jpg)
29 |
GASKET CONDUITE OIL OEM PIAGGIO PORTER DIESEL 2010 > 2015-882605 More informationQuantity required : 1 |
||||||
|
30 |
SCREW FLANGE TH (6X20) OEM PIAGGIO COMMON A LA RANGE-018639 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/2/4/0/3/img/112403.jpg)
31 |
SCREW PERCEE FITTING ORIGNE PIAGGIO PORTER-888791 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/8/8/6/img/110886.jpg)
32 |
WASHER ON SCREW FITTING OEM PIAGIO PORTER-882611 More informationQuantity required : 4 |
||||||
|
33 |
B011308 TUBE D'HUILE More informationQuantity required : 1 |
||||||
|
34 |
B010412 TUBE D'HUILE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/7/3/9/5/img/117395.jpg)
35 |
CONDUITE/TUBE D'HUILE OEM PIAGGIO PORTER DIESEL 2010 > 2015-B010786 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/2/6/0/4/img/142604.jpg)
36 |
CLAMP SERRAGE HOSE OEM PIAGGIO COMMON A LA RANGE-CM001906 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/6/8/img/72868.jpg)
37 |
CLAMP HOSE COOLING OU AIR FILTER (25. 6MM) OEM PIAGGIO COMMON A TOUTE LA RANGE-CM001907 More informationQuantity required : 1 |
||||||
|
38 |
434078 - ECROU More informationQuantity required : 4 |
||||||
|
39 |
B007346 MODULE OF PRESSURE * More informationQuantity required : 1 |
||||||
|
40 |
B006144 BRACKET More informationQuantity required : 1 |
||||||
|
41 |
D9165260616 - BOULON More informationQuantity required : 2 |
||||||
|
41 |
D9165260616 - BOULON More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/6/8/3/5/img/176835.jpg)
42 |
SCREW TH (6X12) WITH WASHER OEM PIAGGIO PORTER COMMON A LA RANGE-CM287312 More informationQuantity required : 2 |
||||||
|
42 |
SCREW TH (6X12) WITH WASHER OEM PIAGGIO PORTER COMMON A LA RANGE-CM287312 More informationQuantity required : 2 |
||||||
|
43 |
B023242 TUBE MODULATEUR OF PRESSURE More informationQuantity required : 1 |
||||||
|
44 |
B023241 TUBE MODULATEUR OF PRESSURE More informationQuantity required : 1 |
||||||
|
45 |
B011226 OIL FILTER More informationQuantity required : 1 |
||||||
|
46 |
B011227 RIDUCTION More informationQuantity required : 1 |
||||||
|
47 |
B023056 CLAMP More informationQuantity required : 1 |
