Vehicle Exploded View - PIAGGIO VU PORTER DIESEL MAXXI STANDARD 1000 Porter Maxxi D120 E5 2010-2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

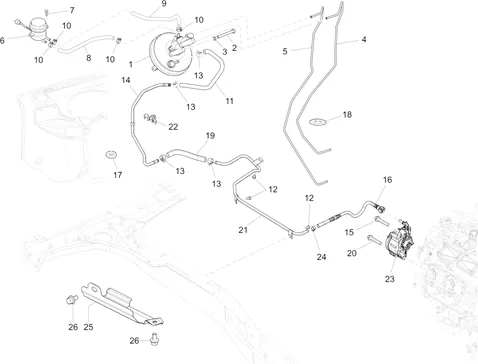

Instalation du freins - transmisisons : 05.01 AVANT TUYAUS DU FREINS - POMPE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/696/Porter_Maxxi_D120_E5_2010-2015_05.01.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/3/8/5/3/img/123853.jpg)
1 |
SERVO BRAKE COMPLETE WITH BRAKE MASTER CYLINDER OEM PIAGGIO PORTER 2012 <-4720087Z01000 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/3/0/6/3/img/123063.jpg)
1 |
SERVO BRAKE COMPLETE OEM PIAGGIO PORTER 2012 > 2015-B005913 More informationQuantity required : 1 |
||||||
2 |
262125 BOLT More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/9/img/65419.jpg)
3 |
WASHER GROWER (10. 6X17. 6X5) OEM PIAGGIO COMMON A LA RANGE-016410 More informationQuantity required : 2 |
||||||
|
4 |
B000528 TUBE BRAKE WHEEL AV. More informationQuantity required : 1 |
||||||
|
5 |
B000529 TUBE BRAKE WHEEL ARR. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/7/1/8/1/img/117181.jpg)
6 |
TANK BRAKE FLUID OEM PIAGGIO PORTER 2010 > 2020, CARGO/THREE-WHEELER APE CALESSINO 2017 >-613319 More informationQuantity required : 1 |
||||||
|
7 |
CM287320 SCREW More informationQuantity required : 2 |
||||||
|
8 |
B000893 TUBE HOUILE More informationQuantity required : 1 |
||||||
|
9 |
B000892 TUBE More informationQuantity required : 1 |
||||||
|
10 |
D9004467161 CLAMP More informationQuantity required : 4 |
||||||
|
11 |
DEPRESSION PIPE FOR MASTER-VAC "PIAGGIO GENUINE PART" PORTER -B005914- More informationQuantity required : 1 |
||||||
|
11 |
TUBE |
||||||
|
12 |
9161160612000 BOLT More informationQuantity required : 3 |
||||||
|
13 |
D9004467161 CLAMP More informationQuantity required : 4 |
||||||
|
14 |
4476287Z02000 TUBE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/1/8/img/72718.jpg)
15 |
SCREW FLANGE TH (8X35) OEM PIAGGIO COMMON A LA RANGE-B016772 More informationQuantity required : 1 |
||||||
|
16 |
B023239 HOSE D'ASSISTANCE AU BRAKE More informationQuantity required : 1 |
||||||
|
17 |
9004480378000 GUIDE-CABLE More informationQuantity required : 1 |
||||||
|
18 |
9004480396000 GUIDE CABLES More informationQuantity required : 1 |
||||||
|
19 |
B007829 TUBE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/1/6/img/72716.jpg)
20 |
SCREW FLANGE TH (8X70) OEM PIAGGIO COMMON A LA RANGE-B016766 More informationQuantity required : 1 |
||||||
|
21 |
B007348 HOSE RIGIDE More informationQuantity required : 1 |
||||||
|
22 |
B005045 CLAMP More informationQuantity required : 1 |
||||||
|
23 |
888379 - DECOMPRESSEUR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/6/3/img/72863.jpg)
24 |
CLAMP SERRE TUBE OEM PIAGGIO COMMON A LA RANGE-CM001901 More informationQuantity required : 1 |
||||||
|
25 |
B023532 PROTECTOR TUBE BRAKE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/1/9/8/img/151198.jpg)
26 |
BOLT TH (6X14) WITH WASHER OEM PIAGGIO COMMON A LA RANGE-CM287314 More informationQuantity required : 2 |
