Vehicle Exploded View - PIAGGIO VU PORTER DIESEL MAXXI STANDARD 1000 Porter Maxxi D120 E5 2010-2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

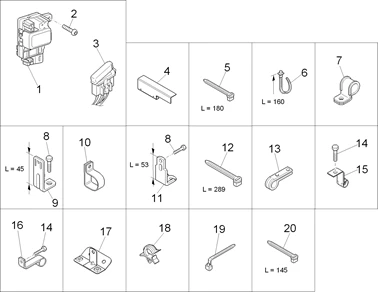

Installation électrique : 06.09 COMPOSANTS DE L'INSTALLATION ÉLECTRIQUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/696/Porter_Maxxi_D120_E5_2010-2015_06.09.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/2/0/7/5/img/122075.jpg)
1 |
DOOR FUSIBLE OEM PIAGGIO PORTER PICK-UP 1998 > 2020-D8260087538 More informationQuantity required : 1 |
||||||
2 |
D9338315020 SCREW WITH WASHER More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/0/1/4/8/img/120148.JPG)
3 |
DOOR FUSIBLE OEM PIAGGIO PORTER 1992-2020-8261087510000 More informationQuantity required : 1 |
||||||
|
4 |
B004700 BRACKET RESERVOIRE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/4/2/img/65742.jpg)
5 |
HOSE CLAMP NYLON TYPE RILSAN 180 MM OEM PIAGGIO COMMON A LA RANGE-145298 More informationQuantity required : 1 |
||||||
|
6 |
9004461420000 CLAMP More informationQuantity required : 3 |
||||||
|
7 |
8271587Z04000 CLAMP More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/6/8/3/5/img/176835.jpg)
8 |
SCREW TH (6X12) WITH WASHER OEM PIAGGIO PORTER COMMON A LA RANGE-CM287312 More informationQuantity required : 2 |
||||||
|
8 |
SCREW TH (6X12) WITH WASHER OEM PIAGGIO PORTER COMMON A LA RANGE-CM287312 More informationQuantity required : 2 |
||||||
|
9 |
D8271587Z29 BRACKET More informationQuantity required : 1 |
||||||
|
10 |
B004729 CLIP More informationQuantity required : 1 |
||||||
|
11 |
644286 CLAMP More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/1/7/img/66017.jpg)
12 |
HOSE CLAMP NYLON TYPE RILSAN 4, 8X270MM OEM PIAGGIO COMMON A LA RANGE-257134 More informationQuantity required : 11 |
||||||
|
13 |
9004464190000 CLAMP More informationQuantity required : 2 |
||||||
|
14 |
D9165260616 - BOULON More informationQuantity required : 6 |
||||||
|
14 |
D9165260616 - BOULON More informationQuantity required : 6 |
||||||
|
15 |
D9004461389 CLAMP More informationQuantity required : 3 |
||||||
|
16 |
566063 BRACKET 1400 More informationQuantity required : 2 |
||||||
|
17 |
5764987Z11000 BRACKET More informationQuantity required : 1 |
||||||
|
18 |
D9004464092 CLAMP More informationQuantity required : 1 |
||||||
|
19 |
9004464484000 CLAMP More informationQuantity required : 2 |
||||||
|
20 |
217280 - COLLIER More informationQuantity required : 7 |
