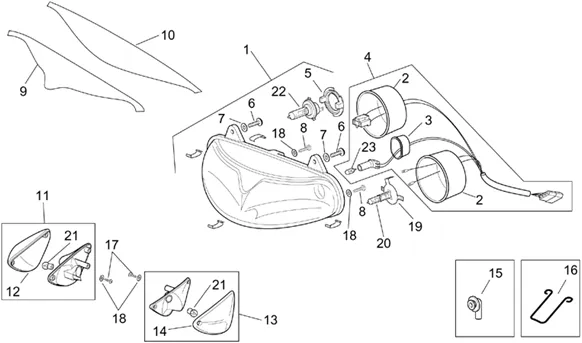

Vehicle Exploded View - APRILIA PEGASO 650 IE 2001-2004 APRILIA

Chassis : 28.37 FEU AVANT
Feu avant
Search
AP8124444 - PHARE AVANT

1
P2R reference P2R reference 47487
Maker reference Maker reference AP8124444

AP8124444-HEADLAMP FRONT

More information

Quantity required : 1

AP8124098 - PHARE AVANT;

1
P2R reference P2R reference 71561
Maker reference Maker reference AP8124098

AP8124098-HEADLAMP FRONT

More information

Quantity required : 1

Coiffe phare;

2
P2R reference P2R reference
Maker reference Maker reference AP8124400

Coiffe phare;

AP8124401 - COIFFE PHARE;

3
P2R reference P2R reference 47482
Maker reference Maker reference AP8124401

AP8124401 - COIFFE PHARE;

More information

Quantity required : 1

AP8124625 - CABLAGE FEU AV

4
P2R reference P2R reference 47555
Maker reference Maker reference AP8124625

AP8124625 - CABLAGE FEU AV

More information

Quantity required : 1

AP8224209 - PORTE-AMPOULE;

5
P2R reference P2R reference 57300
Maker reference Maker reference AP8224209

AP8224209 - PORTE-AMPOULE;

More information

Quantity required : 1

SCREW PARKER (5X20) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-AP8152329

6
P2R reference P2R reference 71970
Maker reference Maker reference AP8152329

SCREW PARKER (5X20) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-AP8152329

More information

Quantity required : 2

WASHER PLATE (5, 5X15X1, 2) OEM PIAGGIO COMMON A LA RANGE

7
P2R reference P2R reference 71873
Maker reference Maker reference AP8150382

WASHER PLATE (5, 5X15X1, 2) OEM PIAGGIO COMMON A LA RANGE

More information

Quantity required : 2

SCREW CRUCIFORME (4. 2X20) TARAUD OEM PIAGGIO COMMON A LA RANGE-AP8150270

8
P2R reference P2R reference 71848
Maker reference Maker reference AP8150270

SCREW CRUCIFORME (4. 2X20) TARAUD OEM PIAGGIO COMMON A LA RANGE-AP8150270

More information

Quantity required : 2

AP8147126 - DECALCO INF. PROT. FEU

9
P2R reference P2R reference 50223
Maker reference Maker reference AP8147126

AP8147126 - DECALCO INF. PROT. FEU

More information

Quantity required : 1

Décalco sup. prot.feu

10
P2R reference P2R reference
Maker reference Maker reference AP8147125

Décalco sup. prot.feu

FRONT RIGHT INDICATOR OEM PIAGGIO APRILIA 650 PEGASO 1997 > 2004, 50 RALLY 1995 > 2004-AP8212818

11
P2R reference P2R reference 56330
Maker reference Maker reference AP8212818

FRONT RIGHT INDICATOR OEM PIAGGIO APRILIA 650 PEGASO 1997 > 2004, 50 RALLY 1995 > 2004-AP8212818

More information

Quantity required : 1

LENS FOR FLASHER-FRONT- RIGHT- "PIAGGIO GENUINE PART" APRILIA 650 PEGASO 1997>2004, 50 RALLY 1995>2004 -AP8212829-

12
P2R reference P2R reference 56332
Maker reference Maker reference AP8212829

LENS FOR FLASHER-FRONT- RIGHT- "PIAGGIO GENUINE PART" APRILIA 650 PEGASO 1997>2004, 50 RALLY 1995>2004 -AP8212829-

More information

Quantity required : 1

FRONT LEFT INDICATOR OEM PIAGGIO APRILIA 650 PEGASO 1997 > 2004, 50 RALLY 1995 > 2004-AP8212819

13
P2R reference P2R reference 72193
Maker reference Maker reference AP8212819

FRONT LEFT INDICATOR OEM PIAGGIO APRILIA 650 PEGASO 1997 > 2004, 50 RALLY 1995 > 2004-AP8212819

More information

Quantity required : 1

LENS FOR FLASHER-FRONT - LEFT- "PIAGGIO GENUINE PART" APRILIA 650 PEGASO 1997>2004, 50 RALLY 1995>2004 -AP8212830-

14
P2R reference P2R reference 56333
Maker reference Maker reference AP8212830

LENS FOR FLASHER-FRONT - LEFT- "PIAGGIO GENUINE PART" APRILIA 650 PEGASO 1997>2004, 50 RALLY 1995>2004 -AP8212830-

More information

Quantity required : 1

AP8124777 - EMBOUT CAOUT.ANTICOND.;

15
P2R reference P2R reference 47603
Maker reference Maker reference AP8124777

AP8124777 - EMBOUT CAOUT.ANTICOND.;

More information

Quantity required : 1

AP8224216 - RESSORT

16
P2R reference P2R reference 57304
Maker reference Maker reference AP8224216

AP8224216 - RESSORT

More information

Quantity required : 1

SCREW CRUCIFORME (3. 9X14) TARAUD FAIRING INOX OEM PIAGGIO COMMON A TOUTE LA RANGE MOTO-AP8150413

17
P2R reference P2R reference 71876
Maker reference Maker reference AP8150413

SCREW CRUCIFORME (3. 9X14) TARAUD FAIRING INOX OEM PIAGGIO COMMON A TOUTE LA RANGE MOTO-AP8150413

More information

Quantity required : 2

WASHER PLATE (4. 3X12X1) OEM PIAGGIO COMMON A LA RANGE-AP8150011

18
P2R reference P2R reference 71804
Maker reference Maker reference AP8150011

WASHER PLATE (4. 3X12X1) OEM PIAGGIO COMMON A LA RANGE-AP8150011

More information

Quantity required : 4

AP8124472 - PORTE-AMPOULE;

19
P2R reference P2R reference 47495
Maker reference Maker reference AP8124472

AP8124472 - PORTE-AMPOULE;

More information

Quantity required : 1

20
P2R reference P2R reference
Maker reference Maker reference AP81271785

21
P2R reference P2R reference
Maker reference Maker reference AP82243905

AMPOULE/LAMPE 12V 60/55W H4 OEM PIAGGIO COMMON A LA RANGE-292723

22
P2R reference P2R reference 66256
Maker reference Maker reference 292723

AMPOULE/LAMPE 12V 60/55W H4 OEM PIAGGIO COMMON A LA RANGE-292723

More information

Quantity required : 1

AMPOULE/LAMPE 12V 5W WEDGE T10 BLANCHE OEM PIAGGIO COMMON A LA RANGE-2920225

23
P2R reference P2R reference 139408
Maker reference Maker reference 2920225

AMPOULE/LAMPE 12V 5W WEDGE T10 BLANCHE OEM PIAGGIO COMMON A LA RANGE-2920225

More information

Quantity required : 1
