Vehicle Exploded View - APRILIA PEGASO 650 IE 2001-2004
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

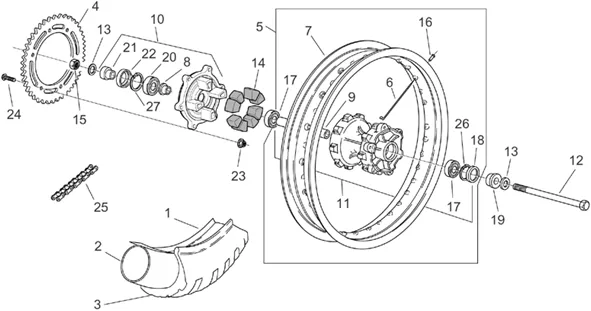

Chassis : 28.34 ROUE ARRIÈRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/305/Pegaso_650_IE_2001-2004_28.34.PNG)
1 |
RIM TAPE REAR WHEEL 18 OEM APRILIA PEGASO-AP8109281 More informationQuantity required : 1 |
||||||
|
4 |
AP8107103 - COURONNE More informationQuantity required : 1 |
||||||
|
5 |
AP8108935 - ROUE ARRIERE NUE; More informationQuantity required : 1 |
||||||
|
6 |
AP8108759-SPOKE More informationQuantity required : 36 |
||||||
|
7 |
AP8108471 - JANTE More informationQuantity required : 1 |
||||||
|
8 |
AP8125423-BUSH SPACER EXTERNE More informationQuantity required : 1 |
||||||
|
9 |
AP8125427-SPACER INTERNE More informationQuantity required : 1 |
||||||
|
10 |
AP8125859 - PORTE-COURONNE More informationQuantity required : 1 |
||||||
|
11 |
AP8125860 - MOYEU AR NU More informationQuantity required : 1 |
||||||
|
12 |
AP8125649-WHEEL SPINDLE AR More informationQuantity required : 1 |
||||||
|
13 |
AP8125650 - RONDELLE AXE ROUE AR; More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/7/7/8/4/img/47784.jpg)
14 |
AP8125861 - CAOUTCHOUC ELASTIQUE More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/8/7/6/img/50876.jpg)
15 |
NUT AUTOBLOQUANT/NYLSTOP (M16X1. 5) OEM PIAGGIO COMMON A LA GAMM E-AP8150433 More informationQuantity required : 1 |
||||||
|
16 |
AP8108672-NIPPLES More informationQuantity required : 36 |
||||||
|
17 |
AP8110045 - ROULEMENT MOYEU More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/7/7/0/8/img/47708.jpg)
18 |
SEAL RING GASKET- FOR REAR WHEEL HUB "PIAGGIO GENUINE PART" APRILIA 125 SX, RX, MX, 125-650 PEGASO -AP8125462- More informationQuantity required : 1 |
||||||
|
19 |
AP8125442-SPACER REAR WHEEL More informationQuantity required : 1 |
||||||
|
20 |
AP8110050 - ROULEMENT ELASTIQUE More informationQuantity required : 1 |
||||||
|
21 |
AP8125425-SPACER More informationQuantity required : 1 |
||||||
|
22 |
AP8203074 - BAGUE D'ETANCHEITE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/9/img/71959.jpg)
23 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M8) OEM PIAGGIO COMMON A LA RANGE-AP8152300 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/0/img/71950.jpg)
24 |
SCREW FLANGE TH (8X30) OEM PIAGGIO COMMON A LA RANGE-AP8152288 More informationQuantity required : 6 |
||||||
|
25 |
AP8107123 - CHA?NE More informationQuantity required : 1 |
||||||
|
26 |
Bague seeger |
||||||
|
27 |
AP8125805 - BAGUE SEEGER More informationQuantity required : 1 |
