Vehicle Exploded View - APRILIA PEGASO 650 IE 2001-2004
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

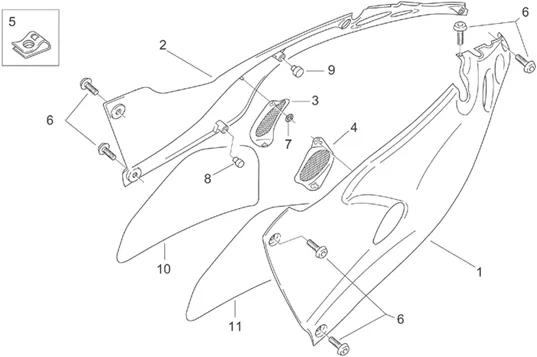

Chassis : 28.15 CARROSSERIE CENTRALE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/305/Pegaso_650_IE_2001-2004_28.15.PNG)
1 |
AP8149787 - FLANC G, BLEU; More informationQuantity required : 1 |
|||||||||
|
1 |
AP8149867 - FLANC G, ROUGE; More informationQuantity required : 1 |
|||||||||
|
1 |
AP8149875 - FLANC G.BLEU CL.; More informationQuantity required : 1 |
|||||||||
|
1 |
AP8158500 - FLANC G.BLEU CL.; More informationQuantity required : 1 |
|||||||||
|
1 |
AP8158507 - FLANC G.BLEU CL.; More informationQuantity required : 1 |
|||||||||
|
1 |
AP8168279 - FLANC G, GRIS; More informationQuantity required : 1 |
|||||||||
|
1 |
AP8168298 - FLANC G, GRIS; More informationQuantity required : 1 |
|||||||||
|
1 |
AP8168305 - FLANC G, PEINT JAUNE; More informationQuantity required : 1 |
|||||||||
|
1 |
FIANCATINA SX GIALLO TIBET N/D |
|||||||||
|
1 |
Flanc G, bleu |
|||||||||
|
1 |
AP8178061 - FIANCATINA SX V.BLU LORD PEN. More informationQuantity required : 1 |
|||||||||
|
2 |
AP8149786-SIDE PANEL D, BLUE More informationQuantity required : 1 |
|||||||||
|
2 |
AP8149866 - FLANC D, ROUGE; More informationQuantity required : 1 |
|||||||||
|
2 |
AP8149874 - FLANC D.V.BLEU CL.; More informationQuantity required : 1 |
|||||||||
|
2 |
AP8158499 - FLANC D.V.BLEU CL.; More informationQuantity required : 1 |
|||||||||
|
2 |
AP8158506 - FLANC D.V.BLEU CL.; More informationQuantity required : 1 |
|||||||||
|
2 |
AP8168278 - FLANC D, GRIS; More informationQuantity required : 1 |
|||||||||
|
2 |
AP8168297 - FLANC D, GRIS; More informationQuantity required : 1 |
|||||||||
|
2 |
AP8168304 - FLANC D, PEINT JAUNE; More informationQuantity required : 1 |
|||||||||
|
2 |
AP8168886 - FIANCATINA DX V.GIALLO TIBET More informationQuantity required : 1 |
|||||||||
|
2 |
Flanc D, bleu |
|||||||||
|
2 |
Flanc D, bleu |
|||||||||
|
3 |
AP8138747 - GRILLE FLANC DTE; More informationQuantity required : 1 |
|||||||||
|
4 |
AP8138829 - GRILLE FLANC GCHE; More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/4/img/71174.jpg)
5 |
NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-AP8102375 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/1/4/4/8/3/img/214483.jpg)
6 |
SCREW BTR DE FAIRING (5X12) OEM PIAGGIO COMMON A LA RANGE-2B014101 More informationQuantity required : 8 |
|||||||||
|
6 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE -AP8152302 More informationQuantity required : 8 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/8/img/71888.jpg)
7 |
WASHER ELASTIC (5) OEM PIAGGIO COMMON A TOUTE LA RANGE-AP8150450 More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/1/4/img/71414.jpg)
8 |
BUFFER/RUBBER OEM PIAGGIO 50 GILERA SMT, RCR 2018 >/DERBI SENDA 2018 >-AP8120712 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/4/6/img/71746.jpg)
9 |
BUTEE RUBBER OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA/MOTO-GUZZI-AP8144081 More informationQuantity required : 2 |
|||||||||
|
10 |
AP8117095 - PANNEAU THERMOFUGE DTE More informationQuantity required : 1 |
|||||||||
|
11 |
AP8117096 - PANNEAU THERMOFUGE GCHE More informationQuantity required : 1 |
|||||||||
