Vehicle Exploded View - APRILIA PEGASO 650 IE 2001-2004
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

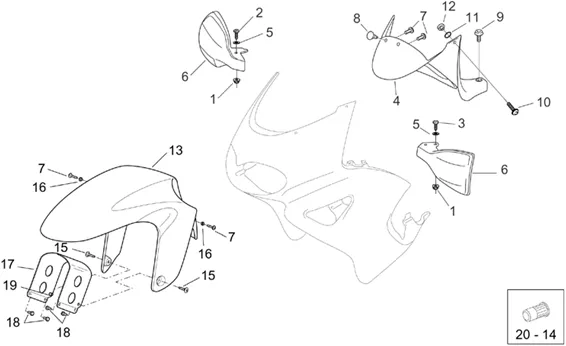

Chassis : 28.11 CARROSSERIE AV. II
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/305/Pegaso_650_IE_2001-2004_28.11.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/8/img/71958.jpg)
1 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-AP8152299 More informationQuantity required : 2 |
|||||||||
2 |
AP8152078-SCREW TB SPECIALE More informationQuantity required : 1 |
|||||||||
|
3 |
AP8152019 - VIS TCB SPECIALE More informationQuantity required : 1 |
|||||||||
|
4 |
Fermeture carène grise; |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/8/1/img/71181.jpg)
5 |
RUBBER DE FAIRING OEM PIAGGIO COMMON A LA RANGE APRILIA-AP8102504 More informationQuantity required : 2 |
|||||||||
|
6 |
AP8158162 - PROT-MAIN GRIS/PAIRE; More informationQuantity required : 1 |
|||||||||
|
6 |
AP8168990 - PARAMANI ROSSO-COPPIA More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/1/4/4/8/3/img/214483.jpg)
7 |
SCREW BTR DE FAIRING (5X12) OEM PIAGGIO COMMON A LA RANGE-2B014101 More informationQuantity required : 4 |
|||||||||
|
7 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE -AP8152302 More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/8/3/img/71383.jpg)
8 |
CAP RUBBER OEM PIAGGIO COMMON A LA RANGE-AP8120001 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/7/3/img/71973.jpg)
9 |
SCREW BTR HEAD BOMBEE (5X9) OEM PIAGGIO COMMON A LA RANGE MOTO-AP8152339 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/7/img/71957.jpg)
10 |
SCREW FLANGE BTR (5X16) OEM PIAGGIO COMMON A LA RANGE-AP8152298 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/8/7/img/71387.jpg)
11 |
O-RING MAITRE CYLINDER REAR (OR112) OEM PIAGGIO COMMON A LA RANGE-AP8120178 More informationQuantity required : 2 |
|||||||||
|
12 |
AP8121250-BUSH More informationQuantity required : 2 |
|||||||||
|
13 |
AP8126972 - GARDE-BOUE AVANT BLANC; More informationQuantity required : 1 |
|||||||||
|
13 |
AP8126974 - GARDE-B AV. BLEU; More informationQuantity required : 1 |
|||||||||
|
13 |
AP8156030 - GARDE-BOUE AVANT PEINT GRIS; More informationQuantity required : 1 |
|||||||||
|
13 |
AP8156032 - GARDE-BOUE AVANT PEINT GRIS; More informationQuantity required : 1 |
|||||||||
|
13 |
AP8156033 - G.-B. AV.P.JAUNE; More informationQuantity required : 1 |
|||||||||
|
13 |
AP8156077 - PARAFANGO ANT.V.GIALLO TIBET More informationQuantity required : 1 |
|||||||||
|
13 |
AP8156098 - PARAFANGO ANT.V.BLU LORD PEN. More informationQuantity required : 1 |
|||||||||
|
13 |
AP8126913 - GARDE-BOUE AV BLEU; More informationQuantity required : 1 |
|||||||||
|
13 |
Garde-b AV. bleu; |
|||||||||
|
13 |
AP8126943 - GARDE-BOUE AVANT PEINT ROUGE; More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/0/1/img/71401.jpg)
14 |
NUT (M5) WITH INSERT RUBBER OEM PIAGGIO COMMON A LA RANGE DERBI, APRILIA ET MOTO-GUZZI-AP8120531 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/7/2/img/71972.jpg)
15 |
SCREW FLANGE BTR (5X20) OEM PIAGGIO COMMON A LA RANGE MOTO ET MAXI SCOOTER APRILIA-AP8152338 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/8/8/img/71488.jpg)
16 |
BUSH EN T INNER 6 MM OEM PIAGGIO COMMON A LA RANGE-AP8121811 More informationQuantity required : 2 |
|||||||||
|
17 |
AP8134662 - PLAQUE RENFORT FOURCHE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/1/img/71941.jpg)
18 |
SCREW FLANGE TH (6X12) OEM PIAGGIO COMUUN A LA RANGE-AP8152277 More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/4/2/img/72142.jpg)
19 |
RIVET FILETE (M5) OEM PIAGGIO COMMON A LA RANGE-AP8201755 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/7/7/3/img/46773.jpg)
20 |
AP8121297-INSERT A EXPANSION More informationQuantity required : 1 |
|||||||||
All the exploded views of this vehicle
-
