Vehicle Exploded View - APRILIA PEGASO 650 IE 2001-2004
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

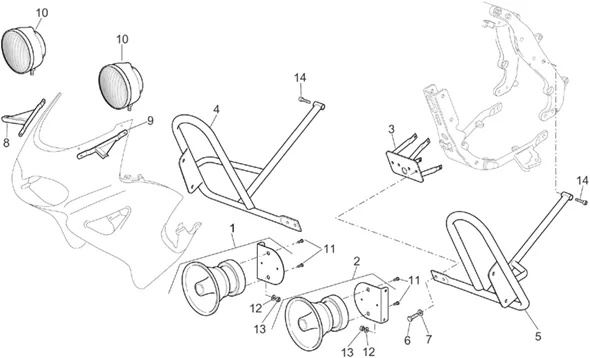

Chassis : 28.03 SIRENS - HEADLIGHTS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/305/Pegaso_650_IE_2001-2004_28.03.PNG)
1 |
GU80743610 - TRASDUTTORE DX COMPLETO More informationQuantity required : 1 |
||||||
|
2 |
GU80743611 - TRASDUTTORE SX COMPLETO More informationQuantity required : 1 |
||||||
|
3 |
GU80451710 - SUPPORTO CENTRALE More informationQuantity required : 1 |
||||||
|
4 |
GU80450410 - PARAURTI ANTERIORE DX More informationQuantity required : 1 |
||||||
|
5 |
GU80450310 - PARAURTI ANTERIORE SX More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/5/6/0/img/73560.jpg)
6 |
SCREW TH (8X20) OEM PIAGGIO COMMON A LA RANGE-GU98084420 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/5/5/4/img/73554.jpg)
7 |
WASHER 8, 4X15X1, 8 COMMON A LA RANGE MOTO GUZZI/APRILIA-GU95008208 More informationQuantity required : 4 |
||||||
|
8 |
GU80743510 - STAFFA DX FISS FARETTO More informationQuantity required : 1 |
||||||
|
8 |
Bride droite |
||||||
|
9 |
GU80743511 - STAFFA SX FISS FARETTO More informationQuantity required : 1 |
||||||
|
9 |
GU80743516 - STAFFA SX FISS FARETTO More informationQuantity required : 1 |
||||||
|
10 |
GU03743380 - FEU STROBO BLEU More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/5/6/4/img/73564.jpg)
11 |
SCREW (6X12) BOX OF SPEED OEM MOTO GUZZI COMMON A LA RANGE-GU98350312 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/5/5/3/img/73553.jpg)
12 |
WASHER PLATE (6, 15X11X0, 8) OEM PIAGGIO COMMON A LA RANGE-GU95008206 More informationQuantity required : 4 |
||||||
|
13 |
GU92630106-NUT M6X1 More informationQuantity required : 4 |
||||||
|
14 |
GU98680581 - VITE TCEI DA M10X80 12.9 More informationQuantity required : 2 |
All the exploded views of this vehicle
-
