Vehicle Exploded View - APRILIA PEGASO 650 IE 2001-2004
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

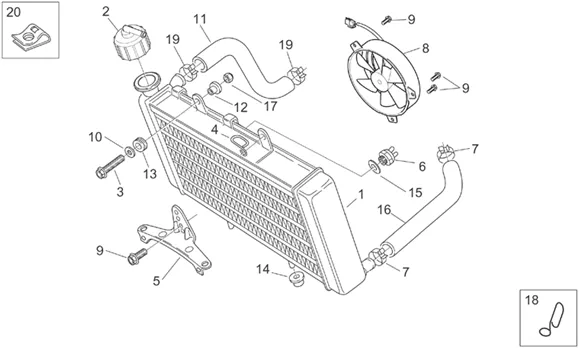

Chassis : 28.25 INSTALLATION REFROIDISSEMENT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/305/Pegaso_650_IE_2001-2004_28.25.PNG)
1 |
AP8104212 - RADIATEUR AVEC BOUCHON More informationQuantity required : 1 |
||||||
|
2 |
AP8104328 - BOUCHON RADIATEUR; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/4/img/71944.jpg)
3 |
SCREW FLANGE TH (6X30) OEM PIAGGIO COMMON A LA RANGE-AP8152281 More informationQuantity required : 2 |
||||||
|
4 |
AP8120512 - GUIDE-CABLE More informationQuantity required : 1 |
||||||
|
5 |
AP8134924 - SUP INF RADIA=8134239 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/9/0/1/img/45901.jpg)
6 |
TEMPERATURE SENSOR/SWITCH "PIAGGIO GENUINE PART" APRILIA 1000 RSV-2, TUNO V2, FALCO, 125 SCARABEO, LEONARDO MOTEUR ROTAX -AP8112939 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/1/0/7/img/45107.jpg)
7 |
CLAMP CLIC (23, 5X8) OEM PIAGGIO COMMON A LA RANGE-AP8101743 More informationQuantity required : 2 |
||||||
|
8 |
AP8127021 - VENTILATEUR CPL.; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/6/8/3/img/151683.jpg)
9 |
SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8152278 More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/0/8/img/71808.jpg)
10 |
WASHER PLATE (6. 6X18X1. 6) OEM PIAGGIO COMMON A LA RANGE-AP8150015 More informationQuantity required : 2 |
||||||
|
11 |
AP8144325-TUBE DE CYLINDER HEAD RADIATOR More informationQuantity required : 1 |
||||||
|
12 |
AP8121922 - DOUILLE RADIATEUR; More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/0/7/img/71407.jpg)
13 |
RUBBER RUBBER MOUNT OEM PIAGGIO COMMON A LA RANGE-AP8120594 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/5/1/img/71151.jpg)
14 |
RUBBER MOUNT/RUBBER EN T OEM PIAGGIO COMMON A LA RANGE-AP8101372 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/9/0/img/71490.jpg)
15 |
WASHER (14X22) EN ALUMINIUM OF SENSOR TEMPERATURE OEM APRILIA COMMON A LA RANGE-AP8121837 More informationQuantity required : 1 |
||||||
|
16 |
AP8120673 - TUYAU RETOUR EAU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/2/img/71882.jpg)
17 |
NUT AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-AP8150430 More informationQuantity required : 2 |
||||||
|
18 |
AP8201417-GUIDE CABLE HOSE BRAKE More informationQuantity required : 1 |
||||||
|
19 |
AP8101588-CLAMP CLIC More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
20 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 3 |
