Vehicle Exploded View - MOTO-GUZZI NORGE 1200 IE 8V 2010-2015-2016 USA CN
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

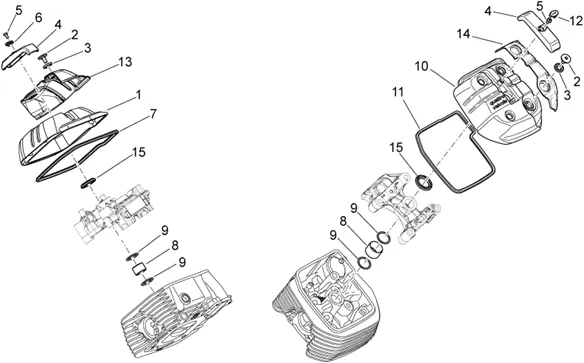

Moteur : 34.68 COUVRE-CULASSE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/507/Norge_1200_IE_8V_2010-2015-2016_USA_CN_34.68.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/8/4/1/5/img/98415.jpg)
1 |
COVER CYLINDER HEAD RIGHT OEM PIAGGIO MOTO-GUZZI 1200 GRISO, NORGE, STELVIO, SPORT-880124 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/9/8/8/8/img/99888.jpg)
2 |
SCREW OF COVER CULBUTEURS OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI-976591 More informationQuantity required : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/4/4/9/5/img/134495.jpg)
3 |
GASKET SCREW OF COVER DE CYLINDER HEAD OEM PIAGGIO FOR MOTORCYCLE-GUZZI 1400 CALIFORNIA 2012 >, AUDACE, ELDORADO, 1200 SPORT, GRISO, NORGE, STELVIO, V7, V9, V85-1A006716 More informationQuantity required : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/8/6/6/1/img/98661.jpg)
4 |
COVER DE SPARK PLUG OEM PIAGGIO MOTO-GUZZI 1200 BREVA, NORGE, STELVIO, SPORT-883493 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/9/6/1/img/132961.jpg)
5 |
SCREW BTR HEAD BOMBEE (5X10) OEM PIAGGIO COMMON A LA RANGE-GU98230510 More informationQuantity required : 2 |
||||||
6 |
DECO " MOTO-GUZZI " DE COVER CYLINDER HEAD RIGHT OEM PIAGGIO MOTO-GUZZI 1200 NORGE, STELVIO, SPORT, BREVA-976560 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/8/3/2/3/img/98323.jpg)
7 |
GASKET OF COVER CYLINDER HEAD RIGHT OEM PIAGGIO FOR MOTORCYCLE-GUZZI 1200 NORGE, GRISO, STELVIO, SPORT, 1400 CALIFORNIA, ELDORADO, AUDACE-872742 More informationQuantity required : 1 |
||||||
|
8 |
879987-TUBO CANDELA More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/8/3/3/0/img/98330.jpg)
9 |
O-RING PUIT DE SPARK PLUG (26X2. 5) OEM PIAGGIO MOTO-GUZZI 1200 NORGE, STELVIO, GRISO, 1400 CALIFORNIA-873626 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/8/4/1/4/img/98414.jpg)
10 |
COVER CYLINDER HEAD LEFT OEM PIAGGIO MOTO-GUZZI 1200 GRISO, NORGE, STELVIO, SPORT-880123 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/8/3/2/2/img/98322.jpg)
11 |
GASKET OF COVER CYLINDER HEAD LEFT OEM PIAGGIO FOR MOTORCYCLE-GUZZI 1200 NORGE, GRISO, STELVIO, SPORT, 1400 CALIFORNIA, ELDORADO, AUDACE-872741 More informationQuantity required : 1 |
||||||
|
12 |
DECO " MOTO-GUZZI " DE COVER CYLINDER HEAD RIGHT OEM PIAGGIO MOTO-GUZZI 1200 NORGE, STELVIO, SPORT, BREVA-976559 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/8/3/3/2/img/98332.jpg)
13 |
GARNITURE DE COVER DE CYLINDER HEAD RIGHT OEM PIAGGIO MOTO-GUZZI 1200 GRISO, NORGE, STELVIO, SPORT-873654 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/8/3/2/1/img/98321.jpg)
14 |
GARNITURE DE COVER DE CYLINDER HEAD LEFT OEM PIAGGIO MOTO-GUZZI 1200 GRISO, NORGE, STELVIO, SPORT-872740 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/8/4/1/6/img/98416.jpg)
15 |
GASKET OF PUIT DE SPARK PLUG OEM PIAGGIO MOTO-GUZZI 1200 SPORT, GRISO, STELVIO, NORGE, 1400 CALIFORNIA, ELDORADO, AUDACE-880127 More informationQuantity required : 2 |
