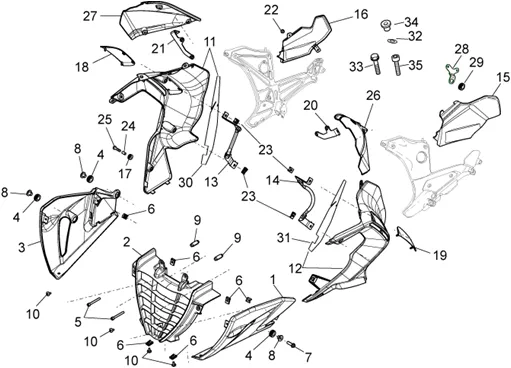

Chassis : 33.20 CARROSSERIE CENTRALE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/507/Norge_1200_IE_8V_2010-2015-2016_USA_CN_33.20.PNG)
1 |
883890-SEMI PUNTALE SX GREZZO More informationQuantity required : 1 |
||||||
|
1 |
88389000BM-SEMI PUNTALE SX BIANCO More informationQuantity required : 1 |
||||||
|
1 |
88389000F2-SEMI PUNTALE SX GREY EXCALIBUR More informationQuantity required : 1 |
||||||
|
1 |
88389000XN2-* SEMI PUNTALE SX NERO COMPETITION More informationQuantity required : 1 |
||||||
|
1 |
88389000YM1-SEMI PUNTALE SX MARRONE * More informationQuantity required : 1 |
||||||
|
1 |
88389000YM2-SEMI PUNTALE SX BEIGE More informationQuantity required : 1 |
||||||
|
2 |
88388900YM2-SEMI PUNTALE DX BEIGE More informationQuantity required : 1 |
||||||
|
2 |
883891-GRIGLIA PUNTALE More informationQuantity required : 1 |
||||||
|
3 |
883889-SEMI PUNTALE DX GREZZO More informationQuantity required : 1 |
||||||
|
3 |
88388900BM-SEMI PUNTALE DX BIANCO More informationQuantity required : 1 |
||||||
|
3 |
88388900F2-SEMI PUNTALE DX GREY EXCALIBUR More informationQuantity required : 1 |
||||||
|
3 |
88388900XN2-* SEMI PUNTALE DX NERO COMPETITION More informationQuantity required : 1 |
||||||
|
3 |
88388900YM1-SEMI PUNTALE DX MARRONE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/0/7/img/71407.jpg)
4 |
RUBBER RUBBER MOUNT OEM PIAGGIO COMMON A LA RANGE-AP8120594 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/5/9/img/71859.jpg)
5 |
SCREW BTR (6X50) HANDLEBAR END OEM PIAGGIO COMMON A LA GAME MOTO APRILIA-AP8150324 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/4/img/71174.jpg)
6 |
NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-AP8102375 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/9/img/71949.jpg)
7 |
SCREW FLANGE TH (8X25) OEM PIAGGIO COMMON A LA RANGE-AP8152287 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/9/7/img/72297.jpg)
8 |
BUSH EN T (8, 5X10, 7X12) OEM PIAGGIO COMMON A LA RANGE-AP8221128 More informationQuantity required : 3 |
||||||
|
9 |
898051-SPACER FIX GRIGLIA More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/9/4/img/71894.jpg)
10 |
SCREW BTR HEAD BOMBEE (5X9) OEM PIAGGIO COMMON A LA RANGE-AP8150500 More informationQuantity required : 4 |
||||||
|
11 |
883518-FIANCATA DX GREZZO More informationQuantity required : 1 |
||||||
|
11 |
88687700BM-FIANCATA DX CON PROTEZIONE CALORE * More informationQuantity required : 1 |
||||||
|
11 |
88687700F2-FIANCATA DX CON PROTEZIONE CALORE * More informationQuantity required : 1 |
||||||
|
11 |
88687700XN2 - (*)FIANCATA DX CON PROTEZIONE CALORE More informationQuantity required : 1 |
||||||
|
11 |
88687700YM1-FIANCATA DX CON PROTEZIONE CALORE More informationQuantity required : 1 |
||||||
|
11 |
88687700YM2-FIANCATA DX CON PROTEZI BEIGE * More informationQuantity required : 1 |
||||||
|
12 |
883519-FIANCATA SX GREZZO More informationQuantity required : 1 |
||||||
|
12 |
88687800BM-FIANCATA SX CON PROTEZIONE CALORE * More informationQuantity required : 1 |
||||||
|
12 |
88687800F2-FIANCATA SX CON PROTEZIONE CALORE * More informationQuantity required : 1 |
||||||
|
12 |
88687800XN2 - (*)FIANCATA SX CON PROTEZIONE CALORE More informationQuantity required : 1 |
||||||
|
12 |
88687800YM1-FIANCATA SX CON PROTEZIONE CALORE More informationQuantity required : 1 |
||||||
|
12 |
88687800YM2-(*) FIANCATA SX CON PROTEZ BEIGE * More informationQuantity required : 1 |
||||||
|
13 |
977619-TELAIETTO DX FISS FIANCATA CON PI * More informationQuantity required : 1 |
||||||
|
14 |
977623-TELAIETTO SX FISS FIANCATA CON PI More informationQuantity required : 1 |
||||||
|
15 |
883977-FIANCATINA POSTERIORE SX * More informationQuantity required : 1 |
||||||
|
16 |
883978-FIANCATINA POSTERIORE DX More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/9/3/img/71393.jpg)
17 |
RUBBER (7X15) OEM PIAGGIO COMMON A LA RANGE-AP8120405 More informationQuantity required : 6 |
||||||
|
18 |
883520-COVER DX More informationQuantity required : 1 |
||||||
|
19 |
883521-COVER SX More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/8/8/7/4/img/98874.jpg)
20 |
PLATE LEFT OEM PIAGGIO 1200 NORGE MOTO GUZZI 2010 > 2016-883946 More informationQuantity required : 1 |
||||||
|
21 |
883947-PLATE DX More informationQuantity required : 1 |
||||||
|
22 |
GU31576183-SPACER More informationQuantity required : 1 |
||||||
|
23 |
NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-AP8102375 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/2/9/9/img/132299.jpg)
24 |
SPACER (5, 2X7X6, 3) OEM PIAGGIO COMMON A LA RANGE-GU91180506 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/7/img/71957.jpg)
25 |
SCREW FLANGE BTR (5X16) OEM PIAGGIO COMMON A LA RANGE-AP8152298 More informationQuantity required : 6 |
||||||
|
26 |
883630-PARATIA COVER TESTA SX More informationQuantity required : 1 |
||||||
|
27 |
883629 - PARATIA COPERCHIO TESTA DX More informationQuantity required : 1 |
||||||
|
28 |
898254-PLATE FISSAGGIO SIDE PANEL More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/8/4/img/71384.jpg)
29 |
RUBBER/SPACER OEM PIAGGIO COMMON A LA RANGE-AP8120030 More informationQuantity required : 1 |
||||||
|
30 |
886790-PROTEZIONE PARACALORE DX More informationQuantity required : 1 |
||||||
|
31 |
886789-PROTEZIONE PARACALORE SX More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/3/4/img/71834.jpg)
32 |
WASHER PLATE (6, 6X18X1, 6) OEM PIAGGIO COMMON A LA RANGE-AP8150179 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/6/8/3/img/151683.jpg)
33 |
SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8152278 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/9/4/img/72294.jpg)
34 |
BUSH EN T (DIAMETER INNER MM 6) OEM PIAGGIO COMMON A LA RANGE-AP8221023 More informationQuantity required : 2 |
||||||
|
35 |
GU98370625-SCREW M6X25 More informationQuantity required : 2 |
