Vehicle Exploded View - MOTO-GUZZI NORGE 1200 IE 8V 2010-2015-2016 USA CN
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

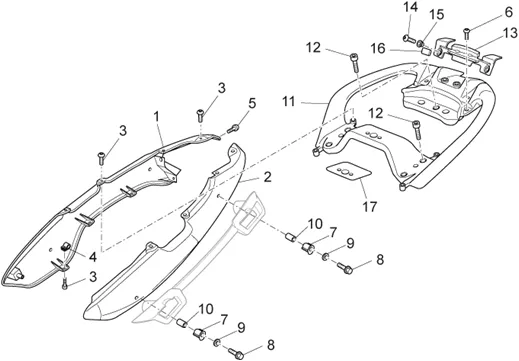

Chassis : 33.25 CARR. ARRIÉRE - QU.CAR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/507/Norge_1200_IE_8V_2010-2015-2016_USA_CN_33.25.PNG)
1 |
GU0557323000XN2-TAIL D, BLACK More informationQuantity required : 1 |
|||||||||
|
1 |
GU05573230-TAIL D, BRUTE More informationQuantity required : 1 |
|||||||||
|
1 |
GU0557323000YM1-TAIL D More informationQuantity required : 1 |
|||||||||
|
1 |
GU0557323000BM-DOOR-PLATE More informationQuantity required : 1 |
|||||||||
|
1 |
GU0557323000YM2-TAIL D. More informationQuantity required : 1 |
|||||||||
|
1 |
GU05573230F2-SCREW More informationQuantity required : 1 |
|||||||||
|
2 |
GU05573330-TAIL G, BRUTE More informationQuantity required : 1 |
|||||||||
|
2 |
GU0557333000BM-DOOR-PLATE More informationQuantity required : 1 |
|||||||||
|
2 |
GU0557333000XN2-TAIL G, BLACK More informationQuantity required : 1 |
|||||||||
|
2 |
GU0557333000YM1-TAIL G More informationQuantity required : 1 |
|||||||||
|
2 |
GU0557333000YM2-TAIL G. More informationQuantity required : 1 |
|||||||||
|
2 |
GU05573330F2-SCREW More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/7/3/img/71973.jpg)
3 |
SCREW BTR HEAD BOMBEE (5X9) OEM PIAGGIO COMMON A LA RANGE MOTO-AP8152339 More informationQuantity required : 10 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/4/img/71174.jpg)
4 |
NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-AP8102375 More informationQuantity required : 10 |
|||||||||
|
5 |
GU98682215-SCREW M5X15 More informationQuantity required : 2 |
|||||||||
|
6 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE -AP8152302 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/1/4/4/8/3/img/214483.jpg)
6 |
SCREW BTR DE FAIRING (5X12) OEM PIAGGIO COMMON A LA RANGE-2B014101 More informationQuantity required : 2 |
|||||||||
|
7 |
GU05467330-CROCHET More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/4/img/71954.jpg)
8 |
SCREW FLANGE TH (M8X50) OEM PIAGGIO COMMON A LA RANGE-AP8152292 More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/6/4/6/img/110646.jpg)
9 |
WASHER SPRING (8. 4X15X1. 5) OEM PIAGGIO COMMON A LA RANGE-658837 More informationQuantity required : 4 |
|||||||||
|
10 |
GU91120924-SPACER 9X18X24 More informationQuantity required : 4 |
|||||||||
|
11 |
884255 - MANIGLIA POST NORGE 8V PA NERA More informationQuantity required : 1 |
|||||||||
|
11 |
GU05464330NA-SCREW More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/3/2/img/67332.jpg)
12 |
SCREW BTR (8X25) CALIPER OU SHOCK ABSORBER OEM PIAGGIO COMMON A LA RANGE-597150 More informationQuantity required : 5 |
|||||||||
|
13 |
GU05464830-COVER More informationQuantity required : 1 |
|||||||||
|
14 |
AP8152055-SCREW More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/3/3/img/71433.jpg)
15 |
WASHER EN T (8. 2X12X4) FOR SCREW OF 6 OEM PIAGGIO COMMON A LA RANGE-AP8121096 More informationQuantity required : 2 |
|||||||||
|
16 |
AP8120455-SILENT BLOCK STAND More informationQuantity required : 2 |
|||||||||
|
17 |
GU32944210-DECAL PROTECT. More informationQuantity required : 1 |
|||||||||
