Vehicle Exploded View - MOTO-GUZZI NORGE 1200 IE 8V 2010-2015-2016 USA CN
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

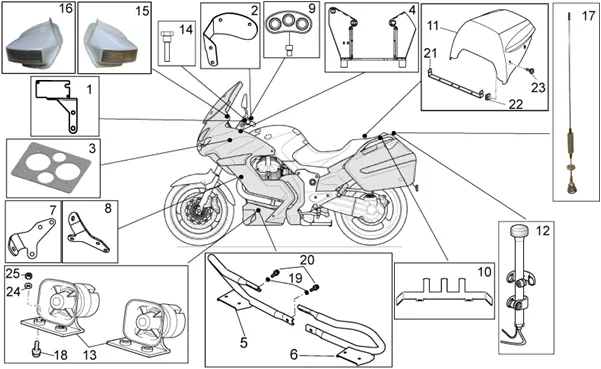

Chassis : 33.78 POLICE SPECIAL EQUIPMENT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/507/Norge_1200_IE_8V_2010-2015-2016_USA_CN_33.78.PNG)
1 |
2B000540-STAFFA SX PORTA PULSANTI More informationQuantity required : 1 |
|||||||||
|
1 |
977979-PLATE SUPP. PULSANTI RADIO CON PI More informationQuantity required : 1 |
|||||||||
|
2 |
884267-STAFFA PORTA PULSANTI More informationQuantity required : 1 |
|||||||||
|
3 |
884246-PLATE PORTARADIO E GPS More informationQuantity required : 1 |
|||||||||
|
4 |
884221-BRACKET RADIO MANUBRIO CON PI More informationQuantity required : 1 |
|||||||||
|
5 |
884182-TUBO PARAGAMBE DX CON PI More informationQuantity required : 1 |
|||||||||
|
6 |
884179-TUBO PARAGAMBE SX CON PI More informationQuantity required : 1 |
|||||||||
|
7 |
884183-PLATE TELAIO SX More informationQuantity required : 1 |
|||||||||
|
8 |
884184-PLATE TELAIO DX More informationQuantity required : 1 |
|||||||||
|
9 |
884241-(*) PULSANTIERA More informationQuantity required : 1 |
|||||||||
|
10 |
884270-STAFFA POSTERIORE CODINO More informationQuantity required : 1 |
|||||||||
|
11 |
88421900XA2-COPRICODONE NORGE PA AZZ LIBIA More informationQuantity required : 1 |
|||||||||
|
11 |
884219-(*) COPRICODONE NORGE 8V PA GREZZO More informationQuantity required : 1 |
|||||||||
|
11 |
88421900BM-(*) COPRICODONE NORGE 8V PA VERN More informationQuantity required : 1 |
|||||||||
|
12 |
884240-(*) ASTA STROBO NORGE A More informationQuantity required : 1 |
|||||||||
|
13 |
884237-(*) KIT SIRENA CITYPOL 115 More informationQuantity required : 1 |
|||||||||
|
14 |
883486-DADO A COLONNA More informationQuantity required : 2 |
|||||||||
|
15 |
884238-(*) FARETTO SX NORGE A More informationQuantity required : 1 |
|||||||||
|
15 |
88423900YM2-LAMP UNIT RIGHT More informationQuantity required : 1 |
|||||||||
|
16 |
88423800YM2-LAMP UNIT G. More informationQuantity required : 1 |
|||||||||
|
16 |
884239-(*) FARETTO DX NORGE A * More informationQuantity required : 1 |
|||||||||
|
17 |
884271-(*) ANTENNA * More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/3/img/71943.jpg)
18 |
SCREW FLANGE TH (6X25) OEM PIAGGIO COMMON A LA RANGE-AP8152280 More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/4/8/img/73448.jpg)
19 |
WASHER (8, 4X13X0, 8) OEM PIAGGIO COMMON A LA RANGE-GU14615901 More informationQuantity required : 6 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/9/img/71949.jpg)
20 |
SCREW FLANGE TH (8X25) OEM PIAGGIO COMMON A LA RANGE-AP8152287 More informationQuantity required : 6 |
|||||||||
|
21 |
977993-FISS ANT CODONE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/9/8/img/65998.jpg)
22 |
NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-248419 More informationQuantity required : 4 |
|||||||||
|
23 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE -AP8152302 More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/1/4/4/8/3/img/214483.jpg)
23 |
SCREW BTR DE FAIRING (5X12) OEM PIAGGIO COMMON A LA RANGE-2B014101 More informationQuantity required : 4 |
|||||||||
|
24 |
GU95100141-WASHER 6, 5X20X2 More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/8/img/71958.jpg)
25 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-AP8152299 More informationQuantity required : 4 |
|||||||||
