Vehicle Exploded View - MOTO-GUZZI NORGE 1200 IE 8V 2010-2015-2016 USA CN
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

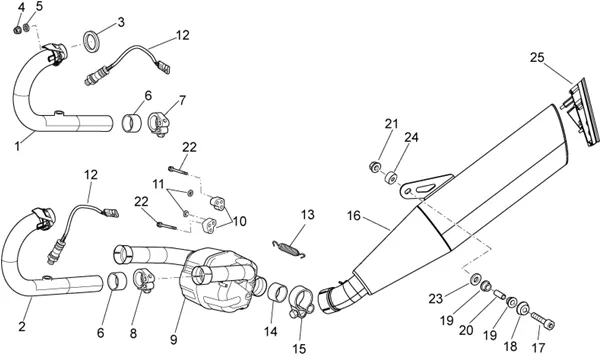

Chassis : 33.38 GROUPE ECHAPPEMENT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/507/Norge_1200_IE_8V_2010-2015-2016_USA_CN_33.38.PNG)
1 |
887214-TUBO DI SCARICO DX MICROPALINATO More informationQuantity required : 1 |
||||||
|
2 |
887215-TUBO DI SCARICO SX MICROPALINATO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/9/8/4/5/img/99845.jpg)
3 |
GASKET EXHAUST OEM PIAGGIO MOTO-GUZZI 1200 SPORT, STELVIO, GRISO, NORGE, 1400 CALIFORNIA, ELDORADO-976376 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/5/5/0/img/73550.jpg)
4 |
NUT FLANGE (M8) OEM PIAGGIO COMMON A LA RANGE-GU92660021 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/4/8/img/73448.jpg)
5 |
WASHER (8, 4X13X0, 8) OEM PIAGGIO COMMON A LA RANGE-GU14615901 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/3/1/img/73431.jpg)
6 |
GASKET EXHAUST OEM PIAGGIO APRILIA 750-900 SHIVER, DORSODURO/MOTO-GUZZI 850-1200 BREVA, NORGE, 940 BELLAGIO-GU05121630 More informationQuantity required : 2 |
||||||
|
7 |
976522-FASCETTA STRINGITUBO DX PER COMPENSATORE More informationQuantity required : 4 |
||||||
|
8 |
976523-FASCETTA STRINGITUBO SX PER COMPENSATORE More informationQuantity required : 2 |
||||||
|
9 |
887097 - COMPENSATORE USA NORGE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/3/4/img/73434.jpg)
10 |
RUBBER MOUNT EXHAUST OEM PIAGGIO MOTO GUZZI 850-1200 NORGE, BREVA, 940 BELLAGIO, 1200 SPORT/APRILIA 1200 CAPONORD, 850 MANA-GU05124230 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/5/4/1/img/73541.jpg)
11 |
WASHER FOR SHAFT D8 OEM MOTO GUZZI COMMON A LA RANGE-GU90274008 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/9/9/img/67299.jpg)
12 |
SONDE LAMBDA L 325 MM OEM PIAGGIO COMMON A LA RANGE-584344 More informationQuantity required : 2 |
||||||
|
13 |
AP8121170-SPRING More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/3/6/img/73436.jpg)
14 |
GASKET EXHAUST OEM PIAGGIO APRILIA 750-900 SHIVER, DORSODURO, 1000 RSV-4, TUONO/MOTO-GUZZI BREVA, GRISO, NORGE, STELVIO-GU05128230 More informationQuantity required : 1 |
||||||
|
15 |
976521-FASCETTA STRIGITUBO PER SILENZIATORE More informationQuantity required : 1 |
||||||
|
16 |
8835411 - SILENZIATORE NORGE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/3/1/6/1/img/133161.jpg)
17 |
SCREW BTR (8X45) OEM PIAGGIO COMMON A LA RANGE-GU98680445 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/6/9/8/img/71698.jpg)
18 |
BUSH/WASHER CREUSE MOUNTING SILENCER OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI-AP8134378 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/4/5/img/71745.jpg)
19 |
RUBBER DE SILENCER EXHAUST OEM APRILIA/MOTO GUZZI COMMON A LA RANGE-AP8144071 More informationQuantity required : 2 |
||||||
|
20 |
883079-SPACER 8, 5X11, 9X25, 5 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/5/3/3/img/132533.jpg)
21 |
NUT FLANGE (8X1. 25) OEM PIAGGIO COMMON A LA RANGE-GU92650138 More informationQuantity required : 1 |
||||||
|
22 |
GU05124330-SCREW More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/6/6/9/img/132669.jpg)
23 |
WASHER 8, 5X24X2 OEM PIAGGIO COMMON A LA RANGE MOTO GUZZI-GU95005312 More informationQuantity required : 1 |
||||||
|
24 |
883843-* SPACER More informationQuantity required : 1 |
||||||
|
25 |
884352-FONDELLO COMPLETO More informationQuantity required : 1 |
