Vehicle Exploded View - MOTO-GUZZI NORGE 1200 IE 8V 2010-2015-2016 USA CN MOTO-GUZZI

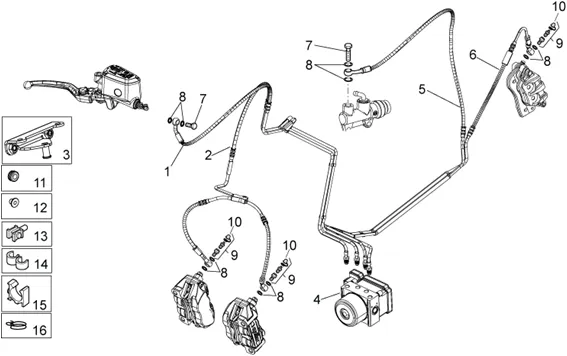

Chassis : 33.45 SYSTÈME FREIN ABS
Système frein ABS
Search
883838 - TUBAZ POMPA ANT/CENTRALINA ABS

1
P2R reference P2R reference 98822
Maker reference Maker reference 883838

883838-TUBAZ PUMP ANT/CENTRALINA ABS

More information

Quantity required : 1

883839 - TUBAZ PINZE ANT/CENTRALINA ABS

2
P2R reference P2R reference 98823
Maker reference Maker reference 883839

883839-TUBAZ PINZE ANT/CENTRALINA ABS

More information

Quantity required : 1

886166 - CONTROPIASTRA

3
P2R reference P2R reference 99089
Maker reference Maker reference 886166

886166-CONTROPIASTRA

More information

Quantity required : 1

2D000193 - CENTRALE

4
P2R reference P2R reference 146202
Maker reference Maker reference 2D000193

2D000193-CENTRE

More information

Quantity required : 1

883840 - TUBAZ POMPA POST/CENTRALINA ABS

5
P2R reference P2R reference 98824
Maker reference Maker reference 883840

883840-TUBAZ PUMP POST/CENTRALINA ABS

More information

Quantity required : 1

883841 - TUBAZ PINZA POST/CENTRALINA ABS

6
P2R reference P2R reference 98825
Maker reference Maker reference 883841

883841-TUBAZ PINZA POST/CENTRALINA ABS

More information

Quantity required : 1

SCREW HOSE OIL (10MM) OEM PIAGGIO COMMON A LA RANGE-AP8113003

7
P2R reference P2R reference 71282
Maker reference Maker reference AP8113003

SCREW HOSE OIL (10MM) OEM PIAGGIO COMMON A LA RANGE-AP8113003

More information

Quantity required : 2

WASHER (10X14X1, 6) OEM PIAGGIO COMMON A LA RANGE-AP8113004

8
P2R reference P2R reference 71283
Maker reference Maker reference AP8113004

WASHER (10X14X1, 6) OEM PIAGGIO COMMON A LA RANGE-AP8113004

More information

Quantity required : 10

AP8133945 - KIT SPURGO ANT

9
P2R reference P2R reference 71692
Maker reference Maker reference AP8133945

AP8133945-KIT SPURGO ANT

More information

Quantity required : 3

AP8113070 - CAPUCHON RENIFLARD

10
P2R reference P2R reference 71286
Maker reference Maker reference AP8113070

AP8113070-CAPUCHON RENIFLARD

More information

Quantity required : 3

RUBBER/SPACER OEM PIAGGIO COMMON A LA RANGE-AP8120030

11
P2R reference P2R reference 71384
Maker reference Maker reference AP8120030

RUBBER/SPACER OEM PIAGGIO COMMON A LA RANGE-AP8120030

More information

Quantity required : 2

BUSH EN T (DIAMETER INNER MM 6) OEM PIAGGIO COMMON A LA RANGE-AP8221023

12
P2R reference P2R reference 72294
Maker reference Maker reference AP8221023

BUSH EN T (DIAMETER INNER MM 6) OEM PIAGGIO COMMON A LA RANGE-AP8221023

More information

Quantity required : 2

AP8202238 - ANCRAGE GUIDE-CABLE;

13
P2R reference P2R reference 72152
Maker reference Maker reference AP8202238

AP8202238-ANCRAGE GUIDE-CABLE

More information

Quantity required : 4

CLIPS SPRING MOUNTING HARNESS ORIGNE APRILIA-MOTO GUZZI COMMON A LA RANGE-AP9100519

14
P2R reference P2R reference 72610
Maker reference Maker reference AP9100519

CLIPS SPRING MOUNTING HARNESS ORIGNE APRILIA-MOTO GUZZI COMMON A LA RANGE-AP9100519

More information

Quantity required : 4

AP8201808 - GUIDE-CABLE

15
P2R reference P2R reference 72146
Maker reference Maker reference AP8201808

AP8201808-GUIDE-CABLE

More information

Quantity required : 2

GU05436530 - VIS

15
P2R reference P2R reference 128716
Maker reference Maker reference GU05436530

GU05436530-SCREW

More information

Quantity required : 4

CLAMP HOSE (10, 1) OEM PIAGGIO COMMON A LA RANGE-AP8101595

16
P2R reference P2R reference 71155
Maker reference Maker reference AP8101595

CLAMP HOSE (10, 1) OEM PIAGGIO COMMON A LA RANGE-AP8101595

More information

Quantity required : 2
