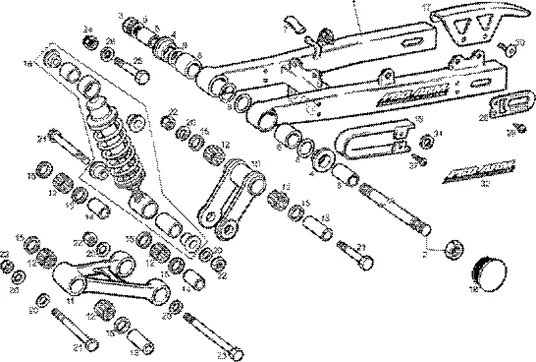

Vehicle Exploded View - GILERA GPR 50 1998-2005

	P2R reference
	Maker reference	ODN00H00305972

BRAS OSCILLANT

	P2R reference	64213
	Maker reference	00H00300411

00H00300411 - S/ENSEMBLE AXE BASCULANT GPR-7

	P2R reference	64214
	Maker reference	00H00300672

NUT FRONT WHEEL OU REAR 50 A BOX OEM PIAGGIO GILERA 50 SMT, RCR 2011 >/DERBI 50 SENDA 2003 >/APRILIA RS4 2011 >, 50 SX, RX 2011 >-00H00300672

	P2R reference	64212
	Maker reference	00H00300231

00H00300231 - DOUILLE GUIDE BRAS OSCILLANT.

	P2R reference
	Maker reference	00H00301651

DOUILLE BUTöE BASCULANT GPR-50

	P2R reference	64223
	Maker reference	00H00302071

00H00302071 - DOUILLE ARTICULATION BRAS BASC

	P2R reference
	Maker reference	00G01800841

FOURREAU PROTECT.BRIDES CHAS.H

	P2R reference
	Maker reference	00H04500131

ANNEAU TORIQUE BOUTON DOUILLE B

	P2R reference	63730
	Maker reference	000320150005

WASHER WHEEL (DIAMETRE 15) OEM PIAGGIO GILERA 50 50 SMT, RCR/DERBI 50 SENDA/APRILIA RS, RX, SX-00032015000

	P2R reference	64219
	Maker reference	00H00301801

00H00301801-S/ENSEMBLE BIELLE ARTICULATION

	P2R reference	70040
	Maker reference	863989

BIELLE TRIANGULAIRE SUSPENSION REAR OEM DERBI 50 SENDA 2003 < 2012/GILERA 50 SMT 2011-2012-863989

	P2R reference	64218
	Maker reference	00H00301701

CAGE A AIGUILLES BIELLETTE SUSPENSION REAR OEM DERBI 50 SENDA 2002 < 2013/GILERA 50 SMT RACING 2011 > 2016/APRILIA 50 SX, RX FACTORY 2018 >-00H00301701

	P2R reference	64220
	Maker reference	00H00301851

SPACER ARTICULATION DE SUSPENSION REAR OEM PIAGGIO GILERA 50 SMT RACING 2011 > 2016/APRILIA 50 SX, RX FACTORY 2018 >-00H00301851

	P2R reference	64221
	Maker reference	00H00301861

SPACER/BUSH OEM MOPED SWINGARM OEM DERBI 50 SENDA DRD 2005 > 2012-00H00301861

	P2R reference	64222
	Maker reference	00H00301871

GASKET BIELLETTE ARM DE SUSPENSION REAR OEM PIAGGIO GILERA 50 SMT 2006 >/DERBI 50 SENDA 2003 > 2010/APRILIA 50 SX, RX 2006 >-00H00301871

	P2R reference
	Maker reference	00H01513191

AMORTISSEUR GPR 50 (SB)

	P2R reference	64552
	Maker reference	00H01506181

00H01506181 - COUVRE CHA?NES GPR-50"R"

	P2R reference
	Maker reference	00H01800751

BOUCHON LOGEMENT AXE BASCULANT

	P2R reference	64946
	Maker reference	00H04901361

00H04901361 - GUIDE SUPERIEURE CHAINE GPR-50

	P2R reference	64527
	Maker reference	00H01500421

WASHER PLATE (12. 2X24X1) OEM PIAGGIO COMMON A LA RANGE-00H01500421

	P2R reference	65052
	Maker reference	00H06800471

00H06800471-SCREW MOUNTING BIELLE SHOCK ABSORBER

	P2R reference	63716
	Maker reference	000231120005

NUT AUTOBLOQUANT/NYLSTOP (M12) OEM PIAGGIO COMMON A LA RANGE-00023112000

	P2R reference	64215
	Maker reference	00H00300891

SCREW TH (12X110) OEM PIAGGIO COMMON A LA RANGE-00H00300891

	P2R reference
	Maker reference	00H01500411

ECROU FIXATION AMORTISSEUR GPR

	P2R reference
	Maker reference	00H01800901

BOUL.SERRAGE SUPPORT AMORTISSE

	P2R reference
	Maker reference	ODN00000031100

RONDELLE

	P2R reference	63687
	Maker reference	000111413005

SCREW PARKER (4, 8X13) CRUCIFORME OEM COMMON A LA RANGE-00011141300

	P2R reference
	Maker reference	ODN00H01301241

PLAQUE

	P2R reference	65033
	Maker reference	00H06300861

SCREW BTR (6X14) MOUNTING FAIRING OEM PIAGGIO GILERA 50 GPR-00H06300861

	P2R reference	69480
	Maker reference	847181

WASHER PLATE (5X15X1) OEM PIAGGIO COMMON A LA RANGE-847181
