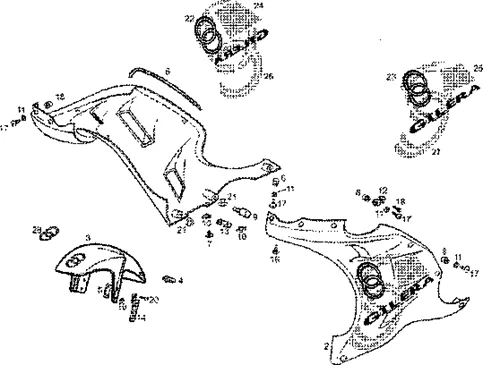

Vehicle Exploded View - GILERA GPR 50 1998-2005

	P2R reference	64560
	Maker reference	00H01509231

00H01509231 - CARENAGE LAT DX

	P2R reference	64956
	Maker reference	00H04909641

00H04909641 - CARENAGE SX

	P2R reference	64292
	Maker reference	00H00704431

00H00704431 - PARAFANGO ANT.C/C REPL 00

	P2R reference
	Maker reference	00H00705431

PARAFANGO ANT.C/C REPL 01

	P2R reference	64668
	Maker reference	00H02201591

GUIDE CABLE DE FLEXIBLE OF BRAKE FRONT OEM PIAGGIO 50 GILERA SMT, RCR/DERBI SENDA 2000 > 2010/APRILIA 50-125 SX, RX-00H02201591

	P2R reference	64995
	Maker reference	00H05700441

00H05700441 - PLAQUE FIXATION GARDE-BOUE AVA

	P2R reference
	Maker reference	00H02200211

PROFIL CARENAGE GPR-50"R"

	P2R reference	63568
	Maker reference	000000045125

SCREW TH (5X12) OEM PIAGGIO COMMON A LA RANGE-00000004512

	P2R reference	64945
	Maker reference	00H04901351

00H04901351 - S/ENSEMBLE FCROU SILENTBLOC FI

	P2R reference
	Maker reference	00H06800091

ARRET BLOC

	P2R reference	64119
	Maker reference	00G04401462

NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-00G04401462

	P2R reference	71410
	Maker reference	AP8120622

WASHER PLATE (6X12) NYLON FOR FAIRING OEM PIAGGIO COMMON A TOUTE LA RANGE-AP8120622

	P2R reference	64534
	Maker reference	00H01501261

00H01501261 - PLAQUE FIXATION CARFNAGE GPR-5

	P2R reference
	Maker reference	ODN00H01502261

PLAQUE

	P2R reference
	Maker reference	ODN00H01503261

PLAQUE

	P2R reference	64616
	Maker reference	00H01802081

CATADIOPTRE DE FORK OEM PIAGGIO 50 GILERA SMT, RCR 2006 > 2017/DERBI SENDA 2003 > 2017/APRILIA SX, RX 2006 > 2017-00H01802081

	P2R reference	65011
	Maker reference	00H05900521

00H05900521 - BLOC FIXATION CARENAGE G

	P2R reference	65033
	Maker reference	00H06300861

SCREW BTR (6X14) MOUNTING FAIRING OEM PIAGGIO GILERA 50 GPR-00H06300861

	P2R reference	65039
	Maker reference	00H06301861

SCREW BTR (6X18) MOUNTING FAIRING OEM PIAGGIO GILERA 50 GPR-00H06301861

	P2R reference	70959
	Maker reference	969296

SCREW FLANGE TH (6X10) OEM PIAGGIO COMMON A LA RANGE-969296

	P2R reference	63786
	Maker reference	004020600015

WASHER PLATE (6X12) OEM PIAGGIO COMMON A LA RANGE-00402060001

	P2R reference	63664
	Maker reference	000080615005

SCREW BTR HEAD BOMBEE (6X16) OEM PIAGGIO COMMON A LA RANGE-00008061500

	P2R reference	63881
	Maker reference	00D01500021

RUBBER GUIDE-CABLE/RUBBER MOUNT OEM DERBI 50 SENDA 2000 > 2017/GILERA 50 SMT, RCR/APRILIA 50-125 SX, RX-00D01500021

	P2R reference	64677
	Maker reference	00H02208321

00H02208321 - ADHESIF LATERAL GILERA.REP

	P2R reference	64928
	Maker reference	00H04613221

00H04613221 - ADHESIF AVANT CARC.LAT.IZ.GIL REPL

	P2R reference
	Maker reference	ODN00H04416821

ADHESIF

	P2R reference	64927
	Maker reference	00H04611561

LABEL- "PIAGGIO GENUINE PART" GILERA 50 GPR -00H04611561

	P2R reference
	Maker reference	00H01509401

ADESIVO INF.CAR.LAT.DR.GIL.REP01

	P2R reference
	Maker reference	00H01806961

CALCA INF.CAR.LAT.IZ.GIL.REPL

	P2R reference
	Maker reference	ODN00H01506731

ADHESIF
