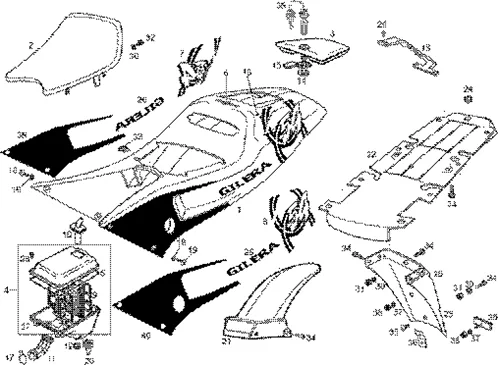

Vehicle Exploded View - GILERA GPR 50 1998-2005

	P2R reference	64957
	Maker reference	00H04911091

00H04911091 - CARENAGE DE SELLE

	P2R reference
	Maker reference	00H00604011

ENSEMBLE SELLE GPR-50"R"

	P2R reference
	Maker reference	00H00600661

SELLA C/SERRATURA GPR

	P2R reference
	Maker reference	00H00501721

CTO.CAJA FILTRO C/TUBO GPR 50R

	P2R reference	64260
	Maker reference	00H00501901

00H00501901 - JOINT COUVERCLE BO?TE FILTRE G

	P2R reference
	Maker reference	ODN00G04401481

MONOGRAMME

	P2R reference
	Maker reference	ODN00H00617601

ADHESIF

	P2R reference
	Maker reference	00H00609611

DECALCO POST.SX.COLIN GIL REPL01

	P2R reference	64759
	Maker reference	00H03202251

00H03202251 - MOUSSE FILTRE AIR GPR-50"R"

	P2R reference	64760
	Maker reference	00H03202491

00H03202491 - TUBE ASPIRATION BOITE FILTRE G

	P2R reference	64763
	Maker reference	00H03204261

HOSE D'ADMISSION DE AIR FILTER OEM PIAGGIO GILERA 50 GPR 2003 <-00H03204261

	P2R reference	63673
	Maker reference	000089150205

RUBBER MOUNT DE RADIATOR OEM PIAGGIO 50 GILERA SMT, RCR 2006 >/DERBI SENDA 2000 >/APRILIA RS 2006 > 2011, SX, RX 2006 >-00008915020

	P2R reference	64279
	Maker reference	00H00601921

00H00601921-ENJOLIVEUR SUPFRIEUR FIN DE SE *

	P2R reference	64280
	Maker reference	00H00601931

RODELLE DE LOCK SEAT OEM APRILIA 50-125 RS 2011 > 2023-00H00601931

	P2R reference	64281
	Maker reference	00H00603141

LEVER LATCH SEAT OEM APRILIA 125 RX, SX 2018 >-00H00603141

	P2R reference
	Maker reference	00H05900501

BOUCHON ORIFICE ALLONGE EXTREME

	P2R reference
	Maker reference	ODN00G03204271

Circlips

	P2R reference	65039
	Maker reference	00H06301861

SCREW BTR (6X18) MOUNTING FAIRING OEM PIAGGIO GILERA 50 GPR-00H06301861

	P2R reference	71410
	Maker reference	AP8120622

WASHER PLATE (6X12) NYLON FOR FAIRING OEM PIAGGIO COMMON A TOUTE LA RANGE-AP8120622

	P2R reference
	Maker reference	00H00501581

TUBE RESPIRATION BO´TE FILTRE

	P2R reference
	Maker reference	00H00703121

GARDE-BOUE ARRI¤RE GPR-50"R"

	P2R reference
	Maker reference	ODN00H00703381

SUPPORTE GARDE BOUE

	P2R reference
	Maker reference	00H00710341

SUPL. GARDE BOUE AR.

	P2R reference	64530
	Maker reference	00H01501031

00H01501031 - PASSE-C?BLES GARDE-BOUE ARRI¤R

	P2R reference	64902
	Maker reference	00H04403751

00H04403751 - CATADIOPTRE TR.702R GIL.REPL

	P2R reference
	Maker reference	00H04417821

DECOR GILERA

	P2R reference
	Maker reference	00H00500131

ECROU FIXATION COUVERCLE FILTRE

	P2R reference	63704
	Maker reference	00012161600

SCREW CRUCIFORME (6X16) MOUNTING AIR FILTER OEM PIAGGIO 50 GILERA SMT, RCR/DERBI SENDA 2000 > 2017/APRILIA SX, RX,-00012161600

	P2R reference
	Maker reference	00H06100171

VIS FIXATION ENJOLIVEUR EXTRöM

	P2R reference	63876
	Maker reference	00D01200171

WASHER PLATE (6X15) OEM PIAGGIO COMMON A LA RANGE-00D01200171

	P2R reference	63590
	Maker reference	000000230605

NUT AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-00000023060

	P2R reference	63696
	Maker reference	000120612005

SCREW CRUCIFORME (6X12) OEM PIAGGIO COMMON A LA RANGE-00012061200

	P2R reference	66009
	Maker reference	254485

NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485

	P2R reference	65033
	Maker reference	00H06300861

SCREW BTR (6X14) MOUNTING FAIRING OEM PIAGGIO GILERA 50 GPR-00H06300861

	P2R reference	64277
	Maker reference	00H00600681

ENSEMBLE LOCK SEAT REAR OEM DERBI 50 GPR 2001 > 2013-00H00600681

	P2R reference
	Maker reference	ODN00H04602421

SUPPORT

	P2R reference	69480
	Maker reference	847181

WASHER PLATE (5X15X1) OEM PIAGGIO COMMON A LA RANGE-847181

	P2R reference
	Maker reference	00H00609471

DECALCO ANT.COLIN DX.GIL.REPL01

	P2R reference
	Maker reference	ODN00H00606481

ADHESIF
